Figure6.6.6.8
6.6.7 Friction compensation
In the operation of drive element, there is always the mechanical friction to affect the efficiency and
function of movement. D2-series drives provide a friction compensation method to reduce the effect of
friction, as shown in figure 6.6.7.1.

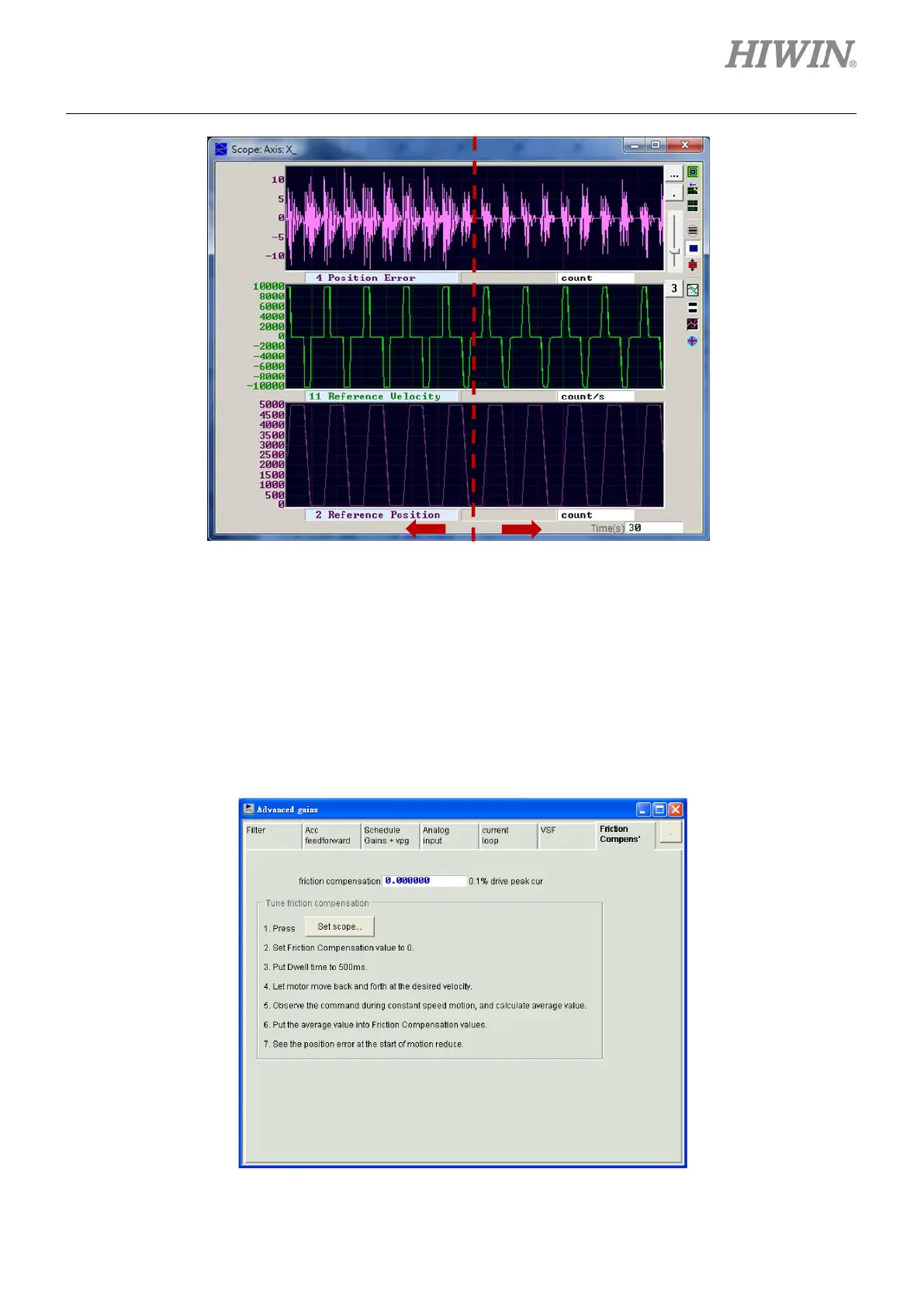

Figure6.6.7.1 Friction compensation
VSF is disabled
VSF is enabled
