7.5.3 Advanced parameter zone
Use following steps to enter the advanced parameter zone.
Step 1: Press the Down key to the “+++” page first, and then press the Enter key (the static cursor
appears in the left side of the second line) to enter the advanced parameter zone. Advanced
parameters are listed in table 7.5.3.1.
Step 2: After entering the advanced parameter zone, the operation is the same as that described in
Section 7.5.2.
Step 3: After the parameter is edited, press the Enter key to complete the editing, return to the edited
parameter, and display the edited parameter. To leave the advanced parameter zone, press
and hold the F key for more than 2 seconds, as shown in figure 7.5.3.1.

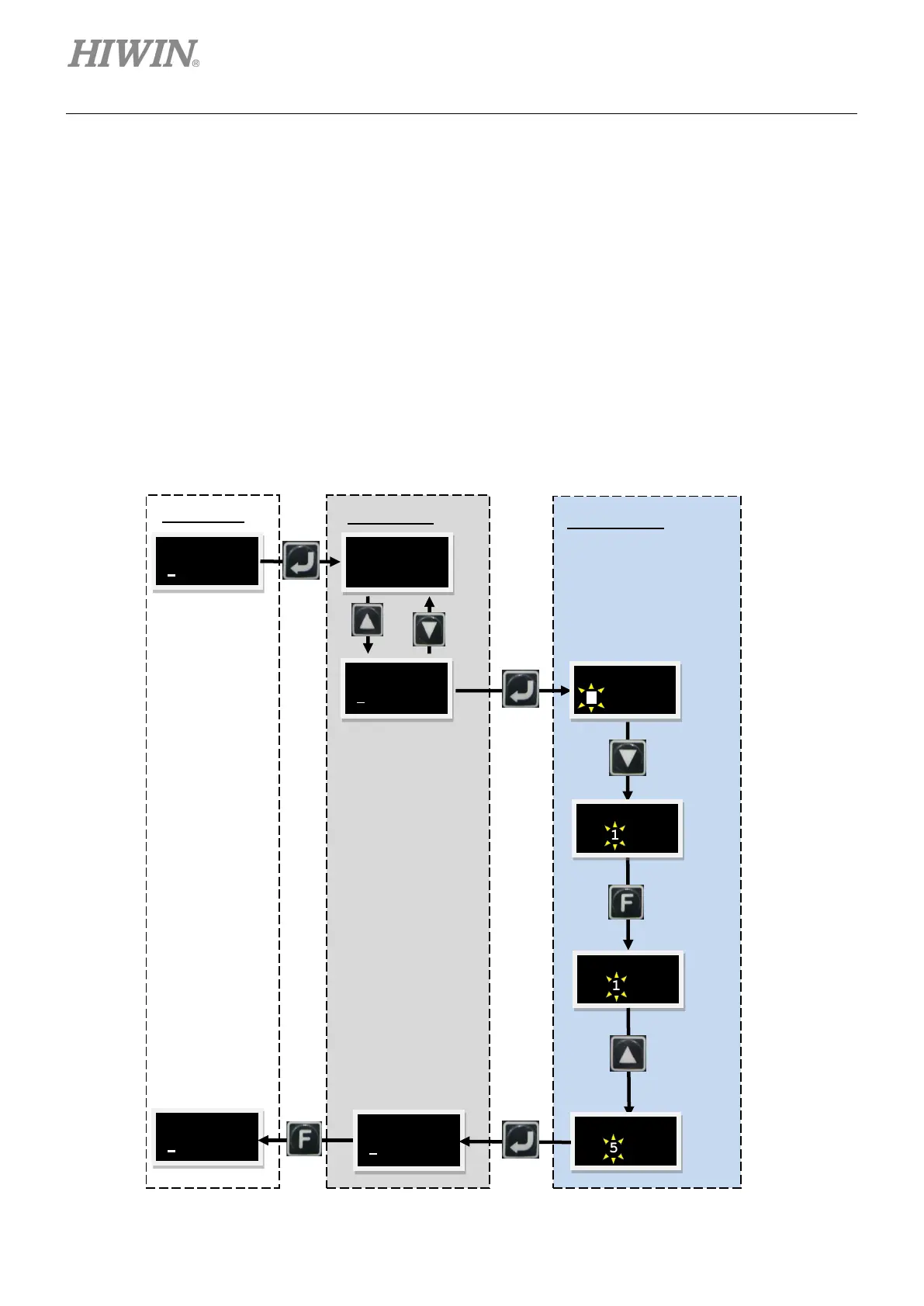

Figure7.5.3.1 Operation example of advanced parameter zone
3 +++
0
Press the
F
key to enter
the parameter
edit mode.
LEVEL TWO
LEVEL ONE
000
_ 200
Press the
UP
key or
Down
key to show the
page of LCD No. 081.
LEVEL THREE
081
1
081
1
081
1
081
1
081
5
081
5
Press and hold the
F
key
for more than 2
seconds.
Press the
Up
key
five times and
stop when “5”
appears (in the
sequence of 1
12345).
3 +++
0
Press once to
shift the cursor
to the right one
place.
