Hiwin D2 Series User Manual

D2 Series Servo Drive User Manual EMC Solution
HIWIN MIKROSYSTEM CORP. 14-5
MD07UE01-2005
DANGER
 It has the risk of electric shock.
 The cable and J1 connector are the high-voltage circuit and are connected to the main power.
 Not paying attention to these warnings could result in the equipment damage, injury, or death.
 Be careful when installing.
 Not paying attention to these warnings could result in the equipment damage, injury, or death.

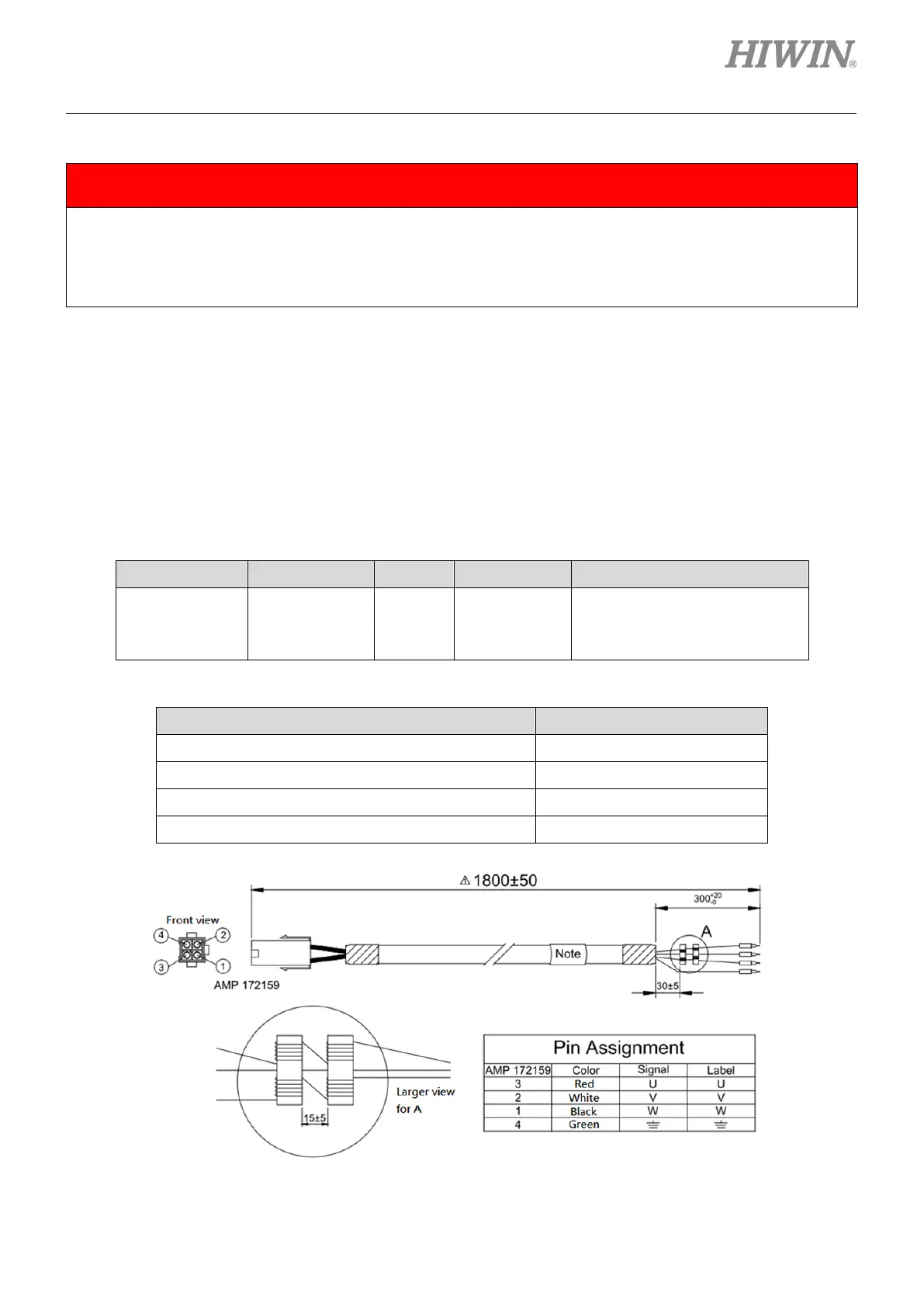

14.2 Motor power cable with magnetic rings
When the motor (100 W - 750 W) is at the enable state, if the control signal is subject to the noise
interference, a magnetic ring can be considered to install in the motor power cable.
(1) Motor power cable including internal magnetic rings
Table14.2.1
Part No. Specification Quantity Description Note
HE00831M2800 AC P.C. + Core
1
Motor filter
(100 W to 750
W only)
1. The power cable does not
contain the brake signal.
2. The length of power cable is
about 2.4 meters.
Table14.2.2
Item Specification
Maximum Voltage 240 Vac
Maximum Current 7.5 A
rms
Peak Current/Maximum Duration Of Peak Current 15 A
rms
/1 second
Ambient Operating Temperature
0 to 40
℃
Figure14.2.1
