Hiwin D2 Series User Manual

LCD Operation D2 Series Servo Drive User Manual
7-28 HIWIN MIKROSYSTEM CORP.
MD07UE01-2005

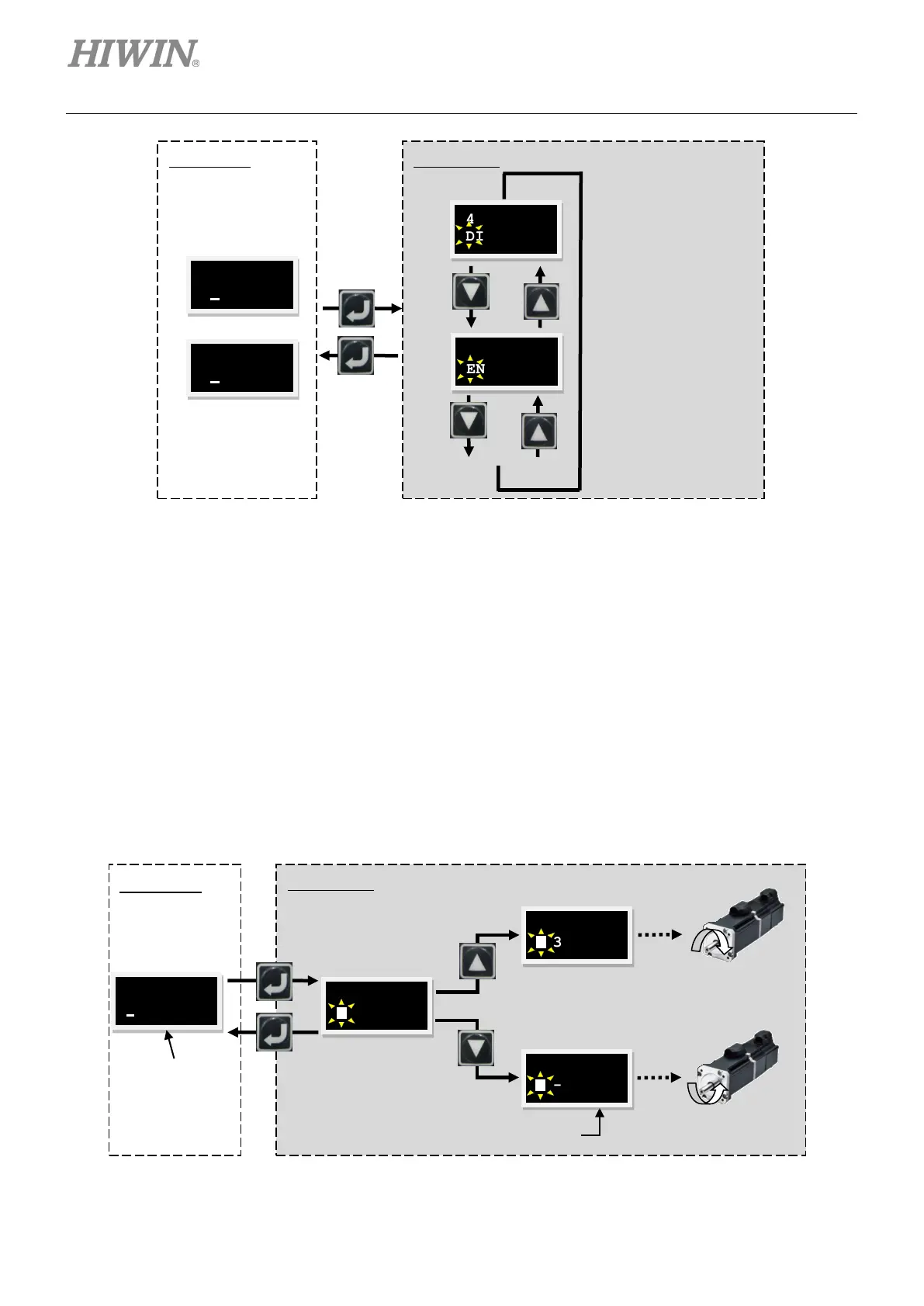

Figure7.6.1.1 Operation of servo enable/disable
7.6.2 JOG
Use following steps to perform the continuous motion (“JOG”). The operation flow chart is given in figure
7.6.2.1.
Step 1: Press the Enter key to enter the “JOG” option (the dynamic cursor appears on the left side of
the second line).
Step 2: Press the Up key or Down key to let the motor rotate in the forward or reversal direction. The
feedback position will be shown in the LCD display when the motor is in motion. The motor
stops the movement immediately when the key is released.
Figure7.6.2.1 Operation of continuous motion (“JOG”)
Servo enable
Servo disable
4 ENA/DI
SVNRDY
4 ENA/DI
DISABLE
4 ENA/DI
ENABLE
4 ENA/DI
SV RDY
or
LEVEL TWO
LEVEL ONE
4 JOG
-8
(CW)
(CCW)
Feedback
position
Press and hold
the
Up
key
Press and hold
the
Down
key
2 01FBPO
-65810
4 JOG
-8
2 01FBPO
323088
LEVEL TWO
Feedback
position
LEVEL ONE
