Wiring D2 Series Servo Drive User Manual
4-12 HIWIN MIKROSYSTEM CORP.
MD07UE01-2005

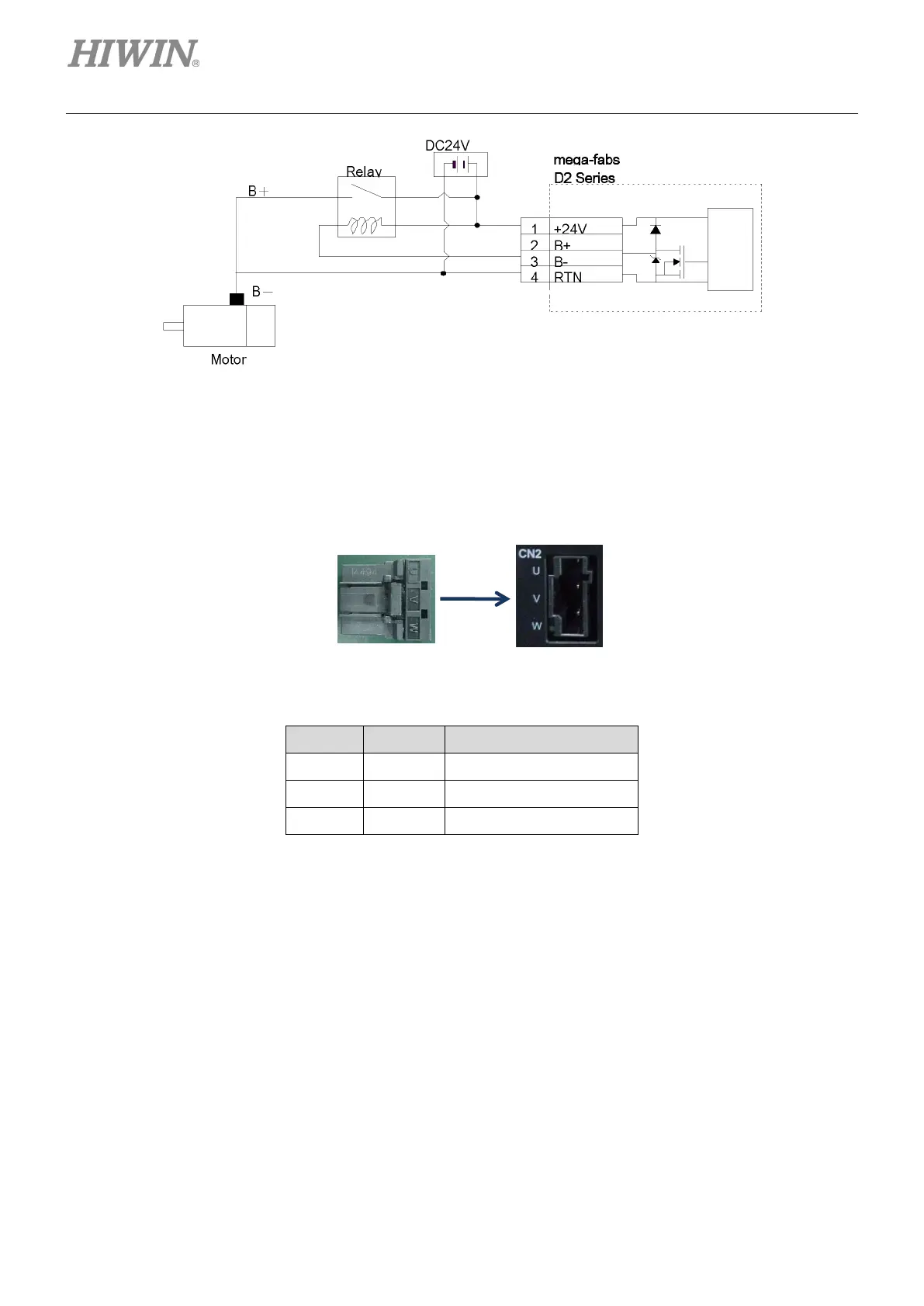

Figure4.1.3.2 Brake wiring with a relay
(2) Frame D
The motor ground wire should be connected to the drive housing.
Connector model: TE Connectivity 3-2229794-1 (female).
Figure4.1.3.3
Table4.1.3.1
No. Single Function
1 U Motor U-phase input
2 V Motor V-phase input
3 W Motor W-phase input
4.1.4 CN3 USB communication
Use the mini USB to connect with PC for monitoring drive, doing test runs, or writing parameters, and so
on. The corresponding operation please refers to Section 5.
Isolated
control power
Power:
