D2 Series Servo Drive User Manual Update Firmware And Load PDL
HIWIN MIKROSYSTEM CORP. 12-5
MD07UE01-2005
12.2 Load PDL program into drive
To load the PDL program into the drive, use following steps to do it. To clear the PDL program in the
drive, delete the code in “user.pdl” and use same steps to load the codeless “user.pdl” into the drive.

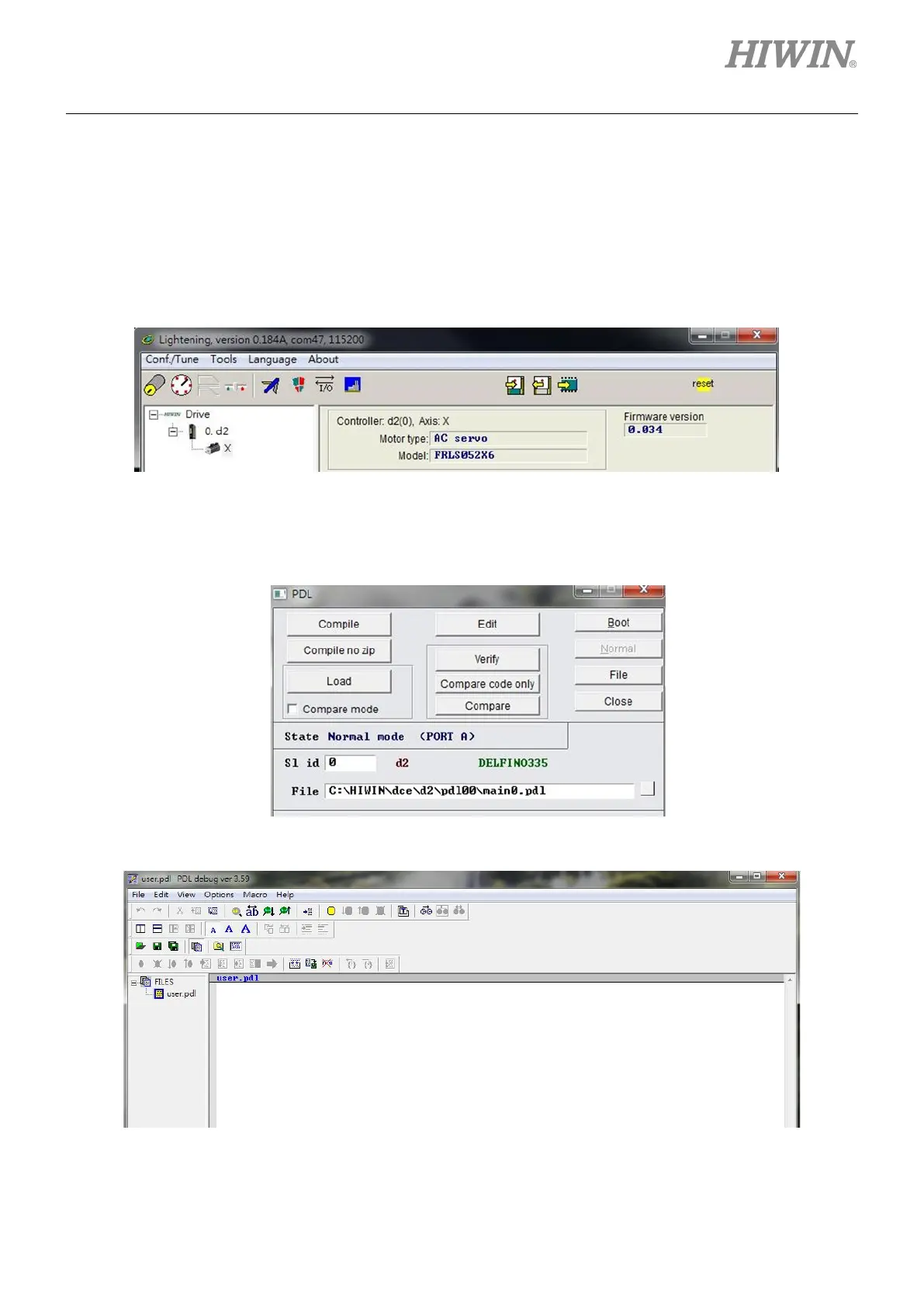

Step 1: Click the icon () shown in figure 12.2.1 to open the “PDL” window.
Figure12.2.1
Step 2: Click the “Edit” button to appear the PDL edit interface.
Figure12.2.2
Figure12.2.3
