2.4 Drive installation
To fix drive in the used environment (e.g. electric cabinet), conductive screws must be used to secure
drive to electric cabinet. Moreover, insulating materials (e.g. paint) on the contact surface of electric
cabinet must be removed, so that the drive can connect to ground through the machine. If the main power
of drive is 220 V, the grounding resistance must be less than 50 Ω.
Installing drive must be careful, not to shut suction hole and vent, and not place it in the inclined position.
Otherwise, it will cause drive failure. In order to ensure that the effect of cooling circulation is well,
installing drive should keep an enough space between the drive and the adjacent article or baffle. If more
than one drive is installed, keep the space between drives more than 20 mm, such that the drive has an
enough space for heat dissipation. Fans can be set in the electric cabinet to facilitate the heat dissipation
of drives.

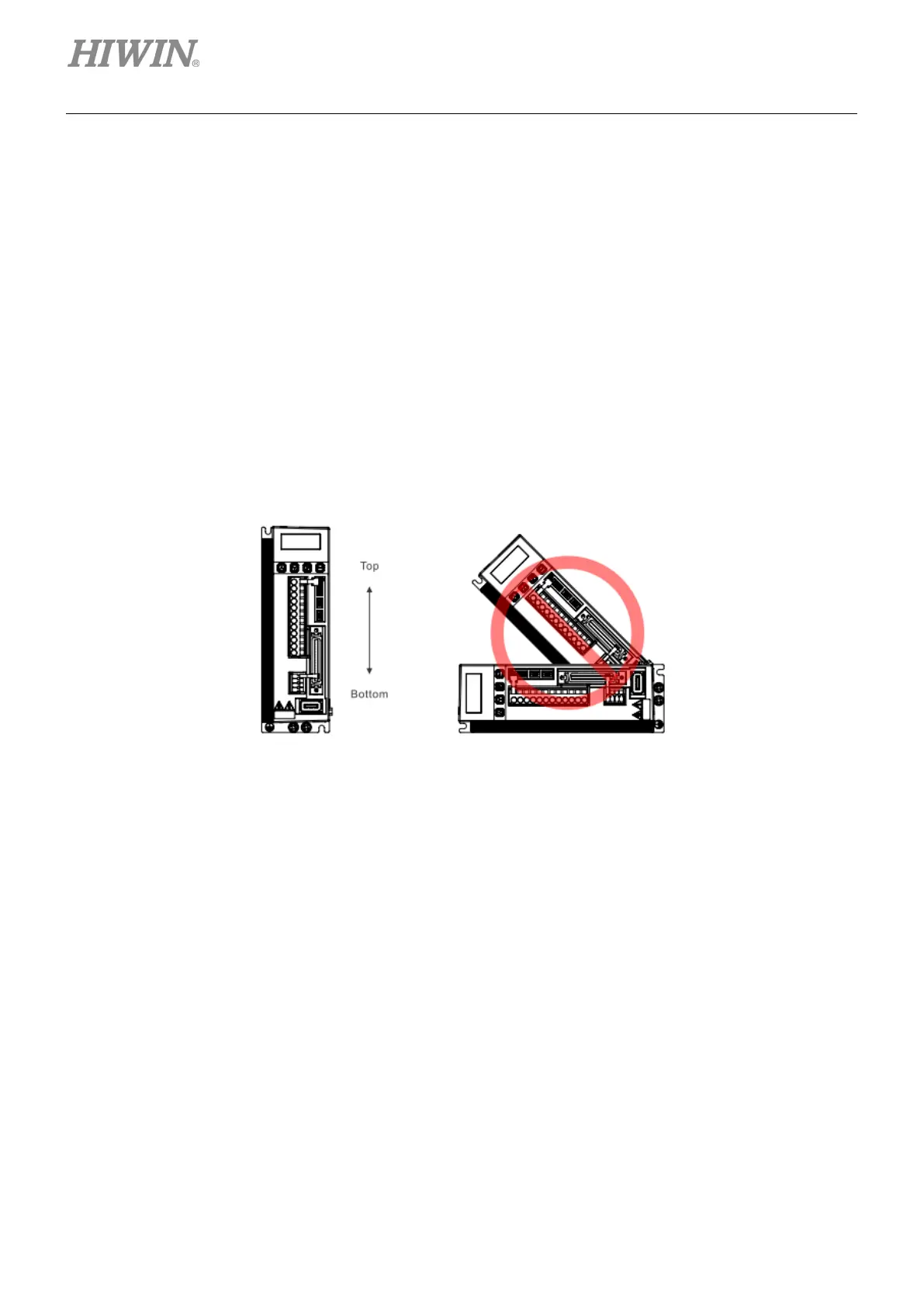

Figure2.4.1
