5.7.3 Use multi-turn absolute encoder for homing
Due to the characteristic of multi-turn absolute encoder, the drive can obtain the absolute position of
motor at any time. Therefore, this homing mode can know the home position without moving motor.
 Homing procedure
Take the current motor position as the home position.

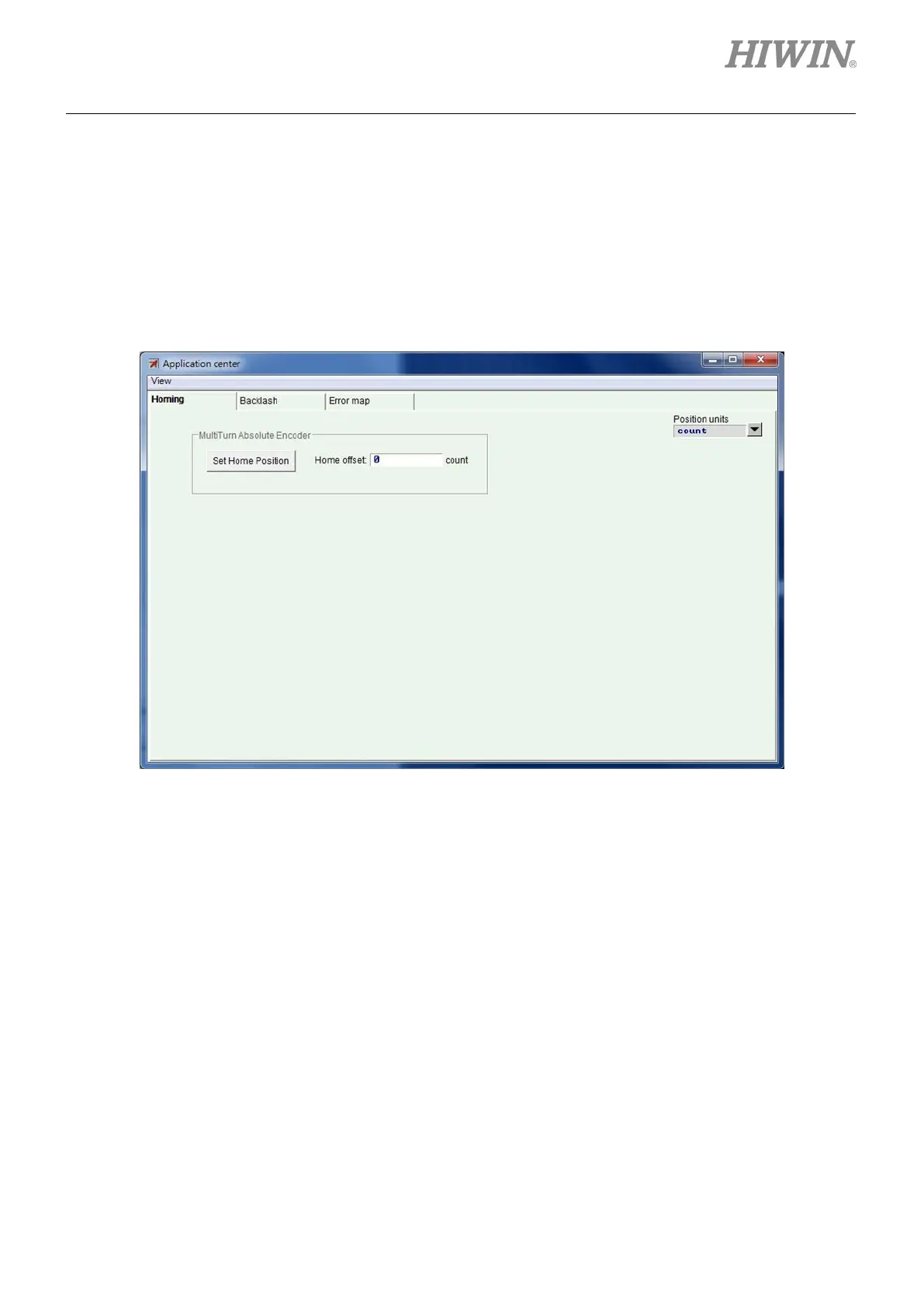

Figure5.7.3.1
