Troubleshooting D2 Series Servo Drive User Manual
9-4 HIWIN MIKROSYSTEM CORP.
9.2.3 Errors and warnings log
When D2 drive detects an error or warning event, in addition to showing it in the error message display
area and warning message display area on the main window, as given in figure 9.2.1.1, it is also recorded
in “Errors and warnings Log”. The opening method is shown in figure 9.2.3.1.

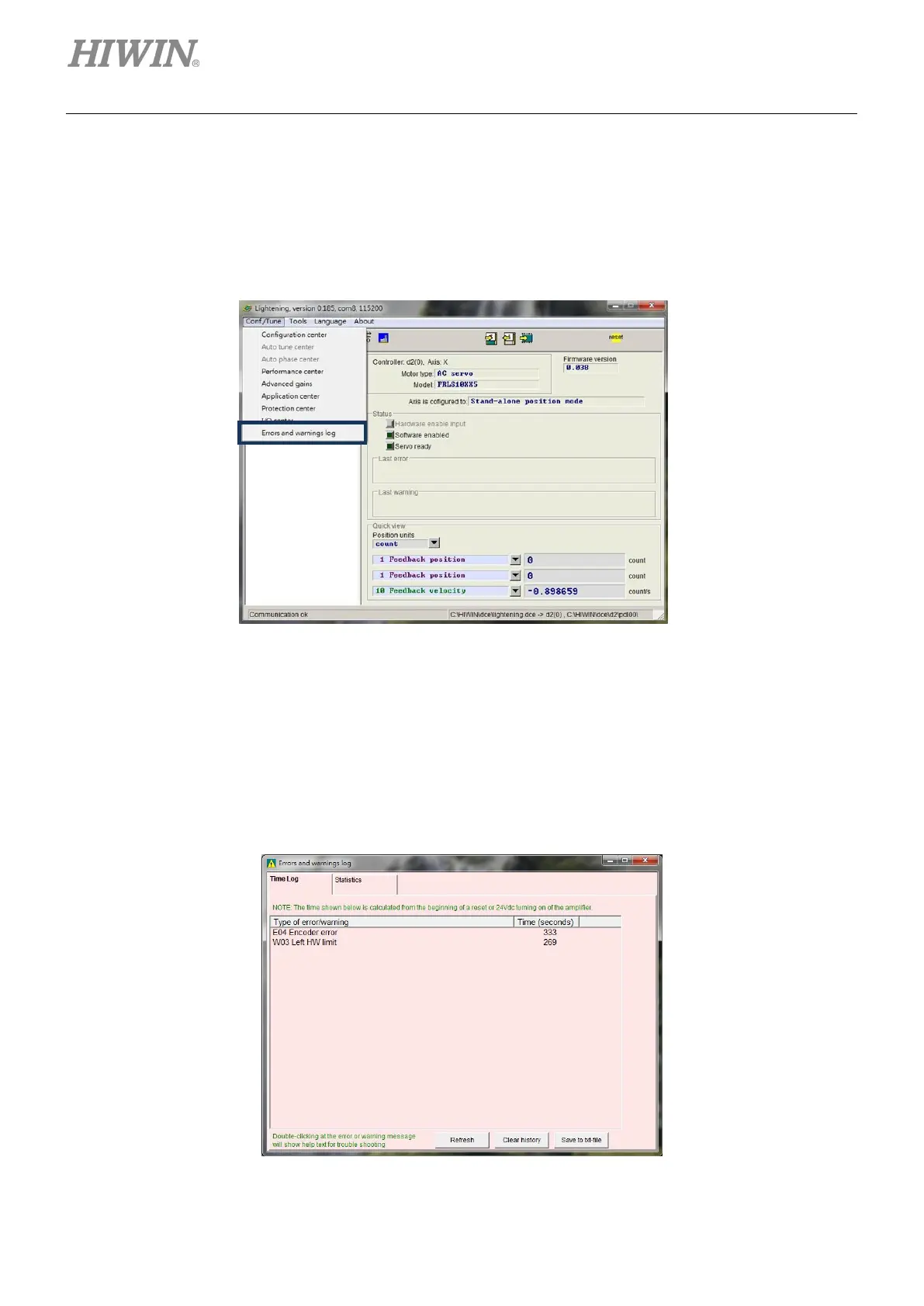

Figure9.2.3.1 Open “Errors and warnings Log”
Lightening provides this function to prevent that errors and warnings reported by the drive are flashing.
This may cause that users lose the error and warning messages. The error and warning messages and
the number, occurred after the drive is powered on, are recorded in “Errors and warnings log”. Refer to
figure 9.2.3.2 for the “Time log” tab in “Errors and warnings log”. All occurred error and warning messages
are recorded in “Type of error/warning” in the chronological order. The occurrence time is recorded in the
“Time (seconds)” column.
Figure9.2.4 Errors and warnings log
