D2 Series Servo Drive User Manual Troubleshooting
HIWIN MIKROSYSTEM CORP. 9-5

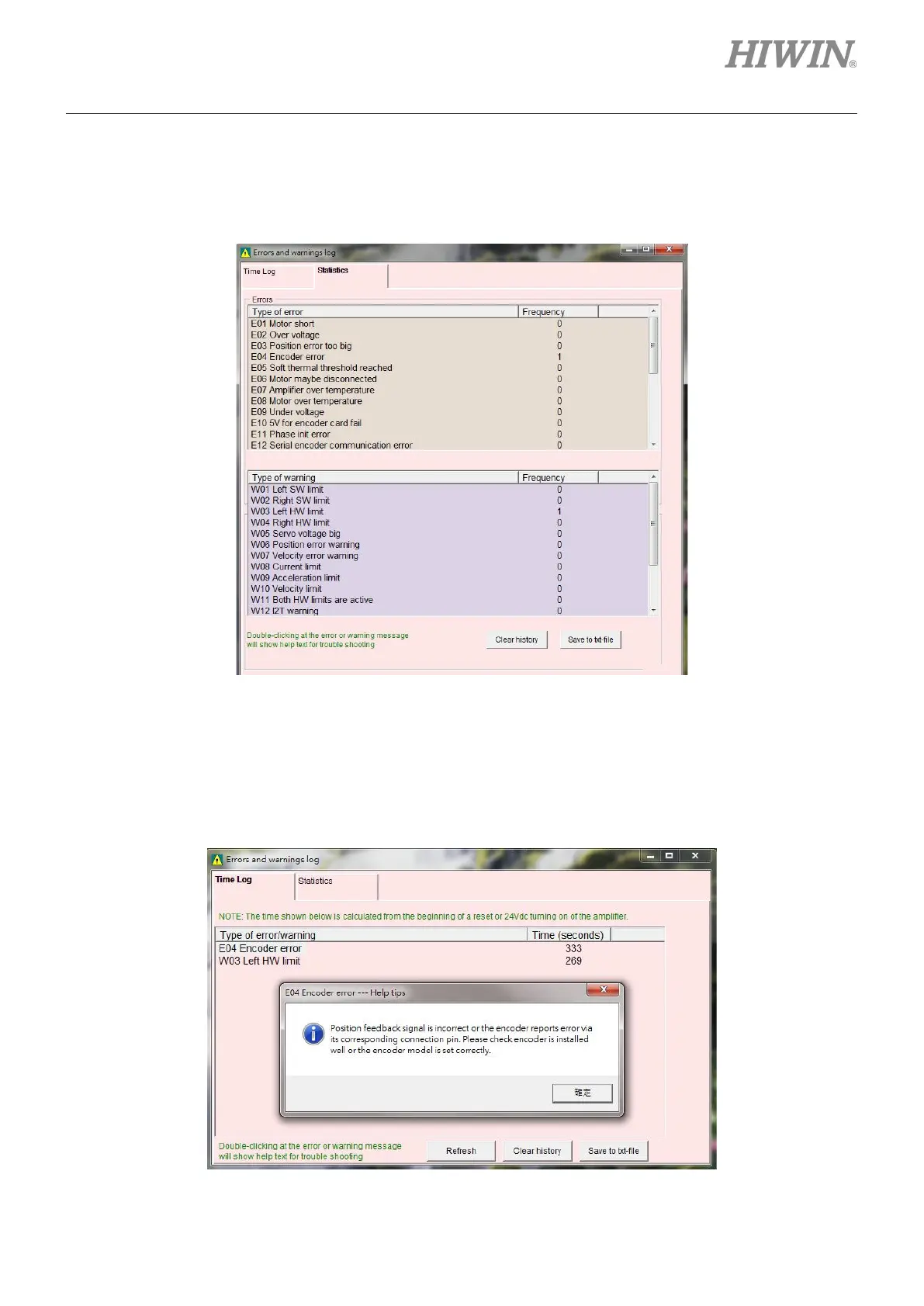

Refer to figure 9.2.5 for the “Statistics” tab in “Errors and warnings log”. The number of errors or warnings
(“Frequency”) occurred in the drive is recorded in this window. This can help users to understand which
events occur most frequently and to debug.
Figure9.2.5 Statistics in “Errors and warnings log”
Moreover, when users want to know more about the content of errors and warnings, double-click the
name of error or warning event to appear the “Help tips” window. For example, as shown in figure 9.2.6, if
the error event of “E04 Encoder error” is clicked, the possible cause and solution can be obtained from
this window.
Figure9.2.6 “Help tips” window in “Errors and warnings log”
