Hiwin D2 Series User Manual

Wiring D2 Series Servo Drive User Manual
4-8 HIWIN MIKROSYSTEM CORP.
MD07UE01-2005

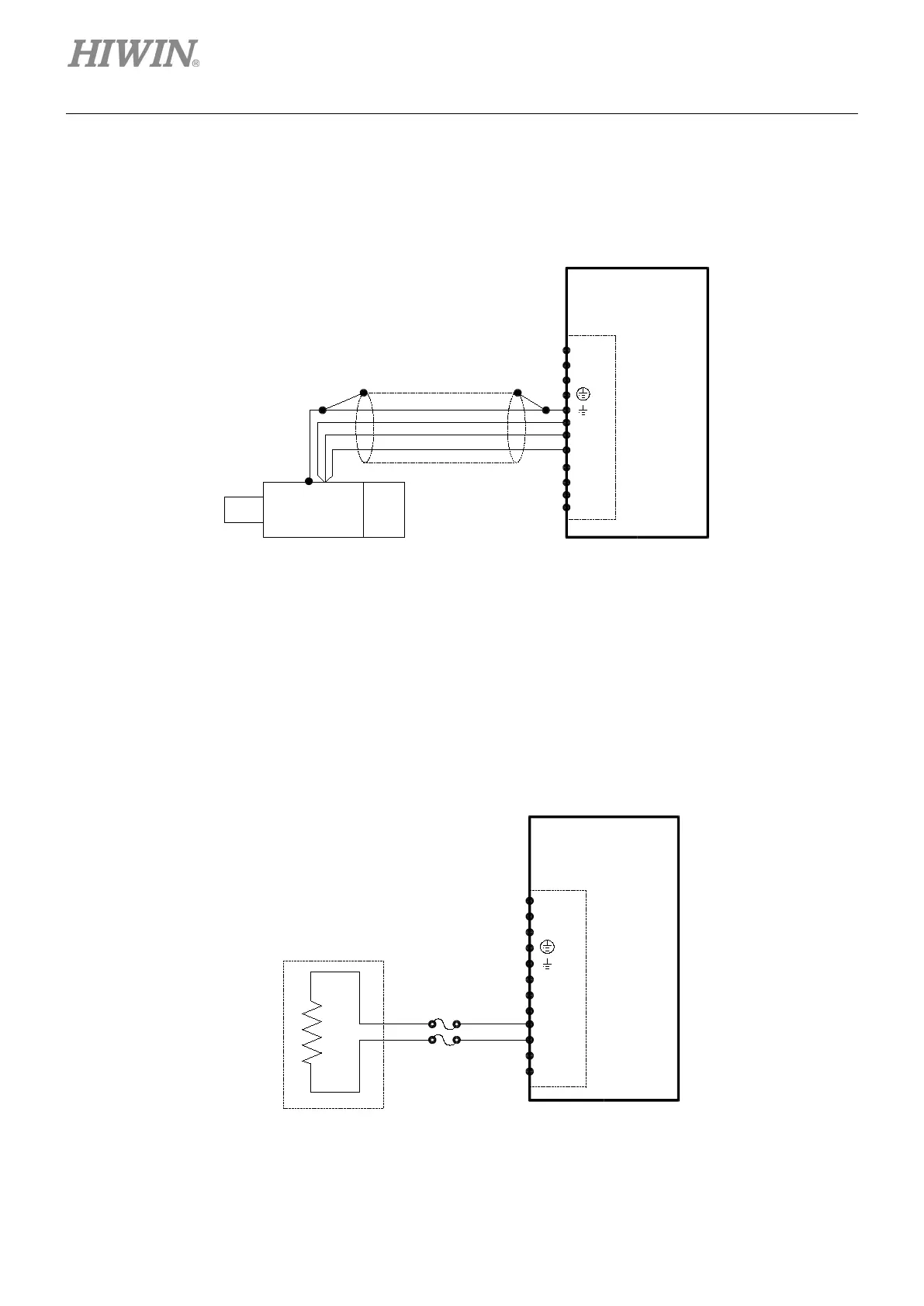

4.1.2.2 Motor wiring
Be sure to ground the drive and the motor. The following motor wiring is only suitable for frame A-C
models.
Figure4.1.2.2.1
4.1.2.3 Regenerative resistor wiring
The regenerative resistor is optional. However, the frame D model has one internal regenerative resistor
(13 Ω/100 W). Install it according to the actual application.
(1) Frame A-C
Figure4.1.2.3.1
Motor
mega-fabs
D2 Series drive
CN1
L1
L2
L3
U
V
W
REG-
REG+
L1C
L2C
Fuse
Regenerative
resistor case
mega-fabs
D2 Series drive
CN1
L1
L2
L3
U
V
W
REG-
REG+
L1C
L2C
