D2 Series Servo Drive User Manual Wiring
HIWIN MIKROSYSTEM CORP. 4-7
MD07UE01-2005
(2) Frame D
Connector model: TE Connectivity 1-2229794-1 (female).
The ground wire of main power should be connected to the drive housing.

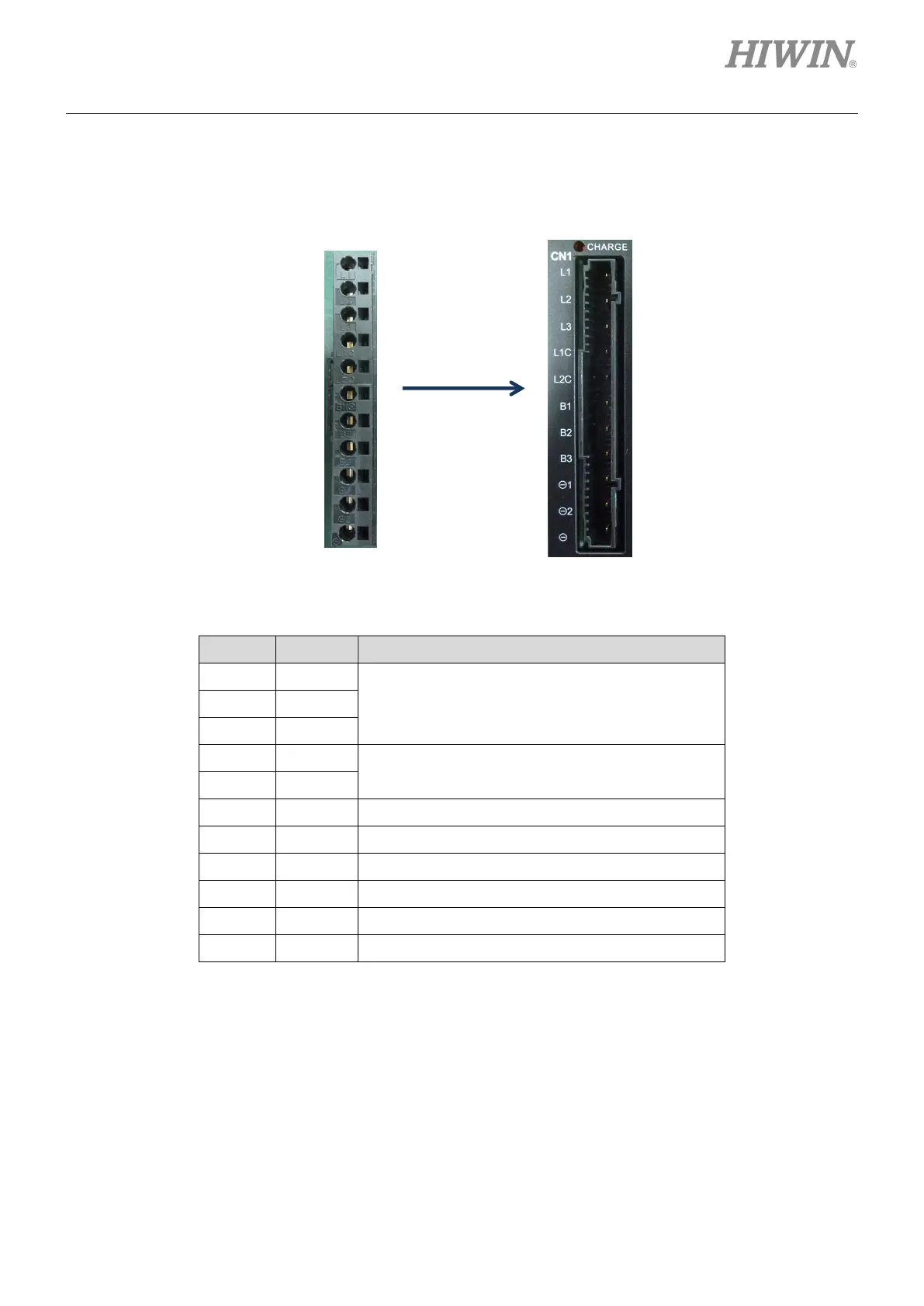

Figure4.1.2.1.3 CN1 connector type for frame D model
Table4.1.2.1.2
No. Signal Function
1
L1
AC main power, 220 Vac (50/60 Hz) three phase
2
L2
3
L3
4
L1C
Control power, 220 Vac (50/60Hz) single phase
5
L2C
6
B1
Regenerative resistor input
7
B2
Regenerative resistor input
8
B3
Regenerative resistor input
9
○
-
1
DC reactor input
10
○
-
2
DC reactor input
11
○
-
DC reactor input
