Wiring D2 Series Servo Drive User Manual
4-6 HIWIN MIKROSYSTEM CORP.

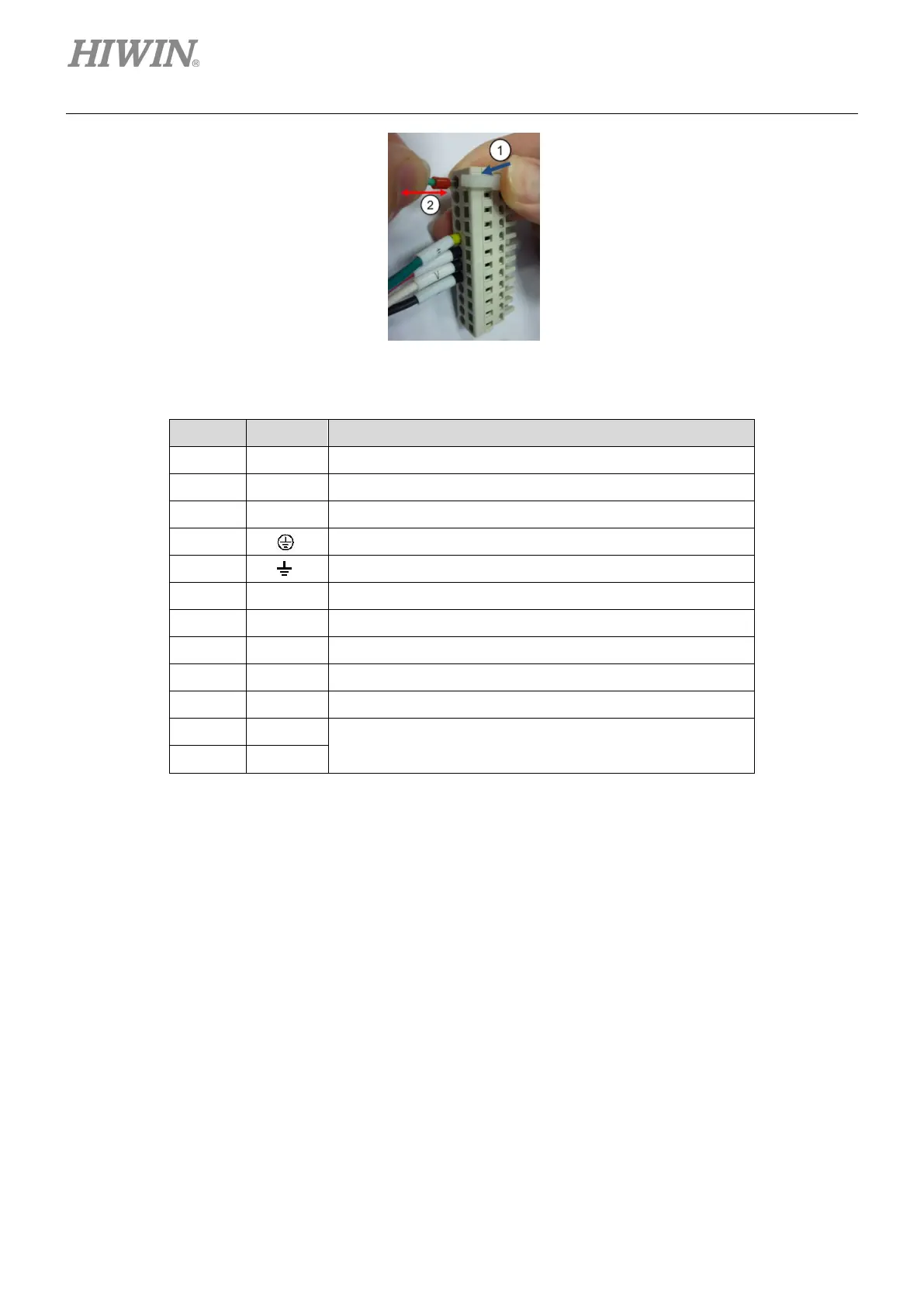

Figure4.1.2.1.2 Installation and removal methods
Table4.1.2.1.1
No. Signal Function
1 L1 AC main power, 220 Vac (50/60 Hz) single/three phase
2 L2 AC main power, 220 Vac (50/60 Hz) single/three phase
3 L3 AC main power, 220 Vac (50/60 Hz) three phase
4
Ground input of AC main power
5
Motor ground input
6 U Motor U-phase input
7 V Motor V-phase input
8 W Motor W-phase input
9 REG- Negative terminal of regenerative resistor
10 REG+ Positive terminal of regenerative resistor
11 L1C
Control power, 220 Vac (50/60 Hz) single phase
12 L2C
