D2 Series Servo Drive User Manual LCD Operation
HIWIN MIKROSYSTEM CORP. 7-9
MD07UE01-2005
7.4 Display parameters page
In the display parameters page, press the Up key or Down key to change the displayed parameter. The
operation flow chart is shown in figure 7.4.1, and the definition of the displayed symbol for each parameter
is given in table 7.4.1. In the LCD display, the first line is the parameter name, and the second line is its
value or status.

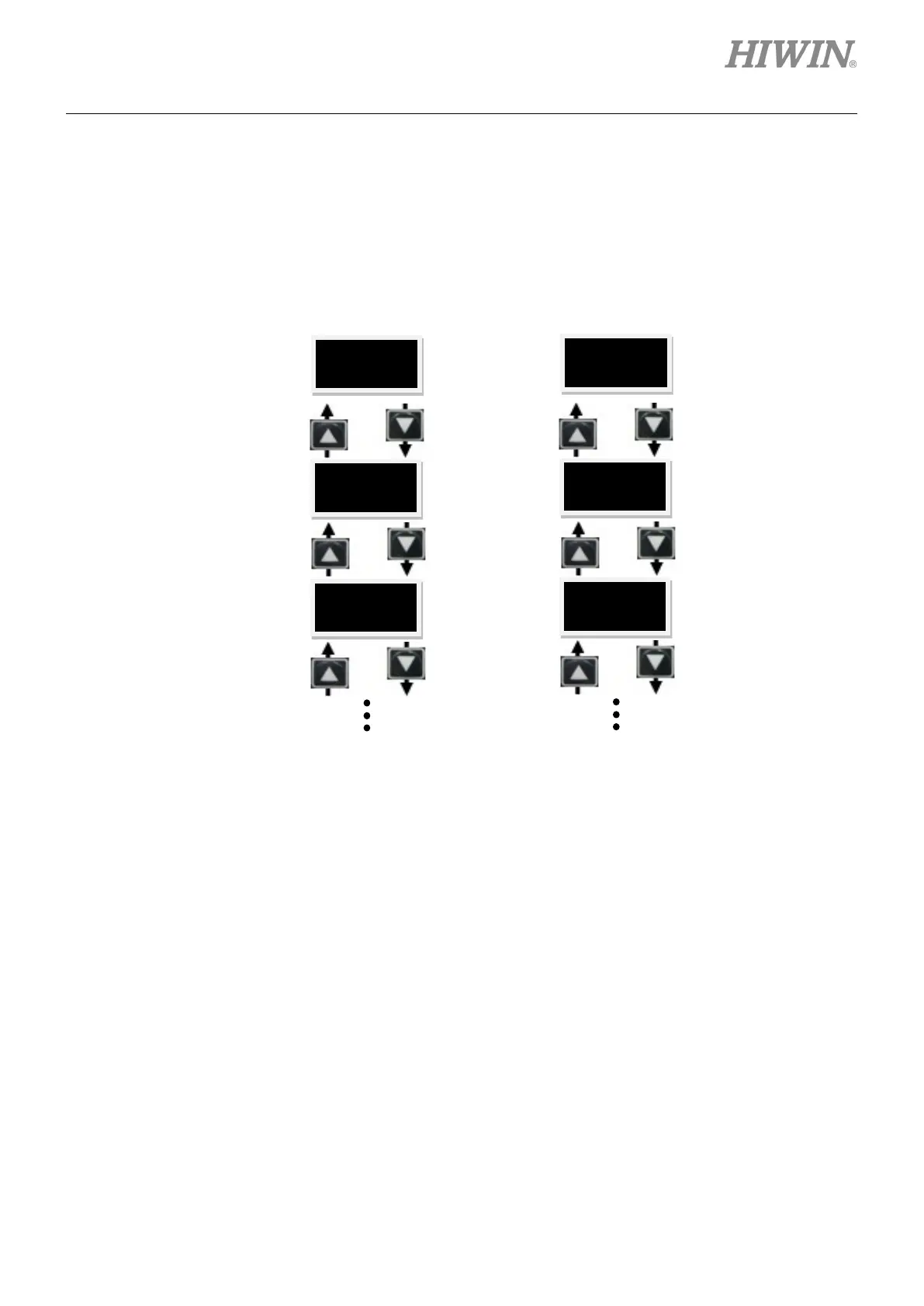

Figure7.4.1 Operation flow chart for display parameters page
2 01FBPO
-369
2 02RFPO
-369
2 04POSE
10
2:01FBPO
-369
2:02RFPO
-369
2:04POSE
10
(a) LCD abbreviated display symbol
(b) LCD numbered display symbol
