D2 Series Servo Drive User Manual Wiring
HIWIN MIKROSYSTEM CORP. 4-25
4.3 Main power wiring
Wiring and the related inspection must be done by the professional technician.
Turn off the power before the wiring or inspection to avoid electric shock and other dangers.
After the power is turned off, do not touch power terminals for a short time period (at least 5 minutes),
since the power in the drive remains high.
Perform wiring correctly and reliably; otherwise it may cause uncontrolled motor operation, personnel
injury, machine malfunction, or other unexpected accidents.
Do not make any modification to the drive.

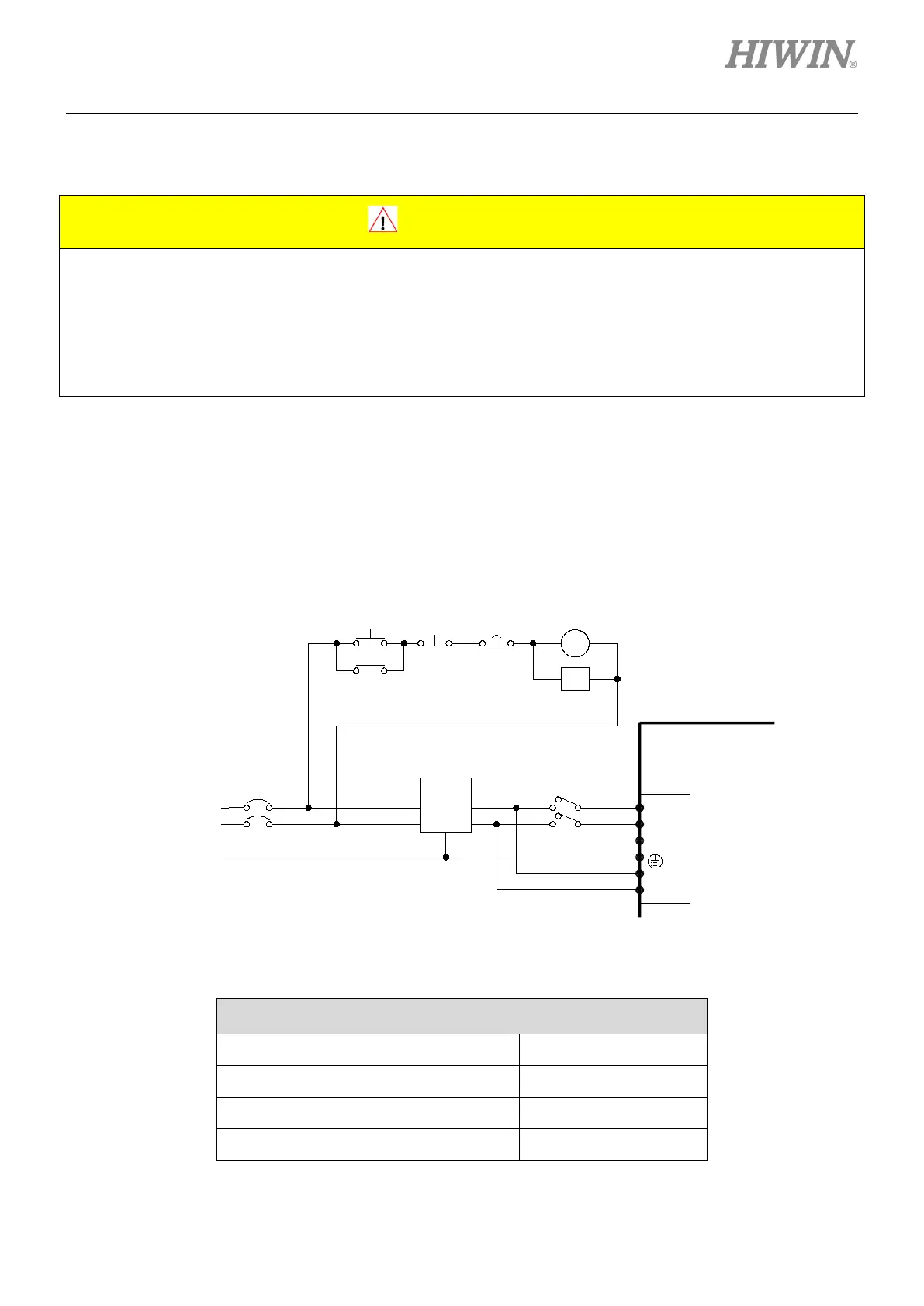

4.3.1 AC power wiring (single-phase)
It is recommended to use the single-phase filter model of FN2090-6-06 for 50 W - 400 W motors, and
FN2090-10-06 for 750 W - 1 KW motors.
Figure4.3.1.1
Table4.3.1.1
FN2090-6-06 Filter
Maximum continuous operation voltage
℃
mega-fabs
D2 Series drive
CN1
L1
L2
L3
L1C
L2C
NFB
Filter
KM
KM
ON
OFF
Emergency
Stop
KM
SK
1-phase
100~240VAC
50/60Hz
Earth
To Next Page
