D2 Series Servo Drive User Manual Drive Configuration
HIWIN MIKROSYSTEM CORP. 5-77
4

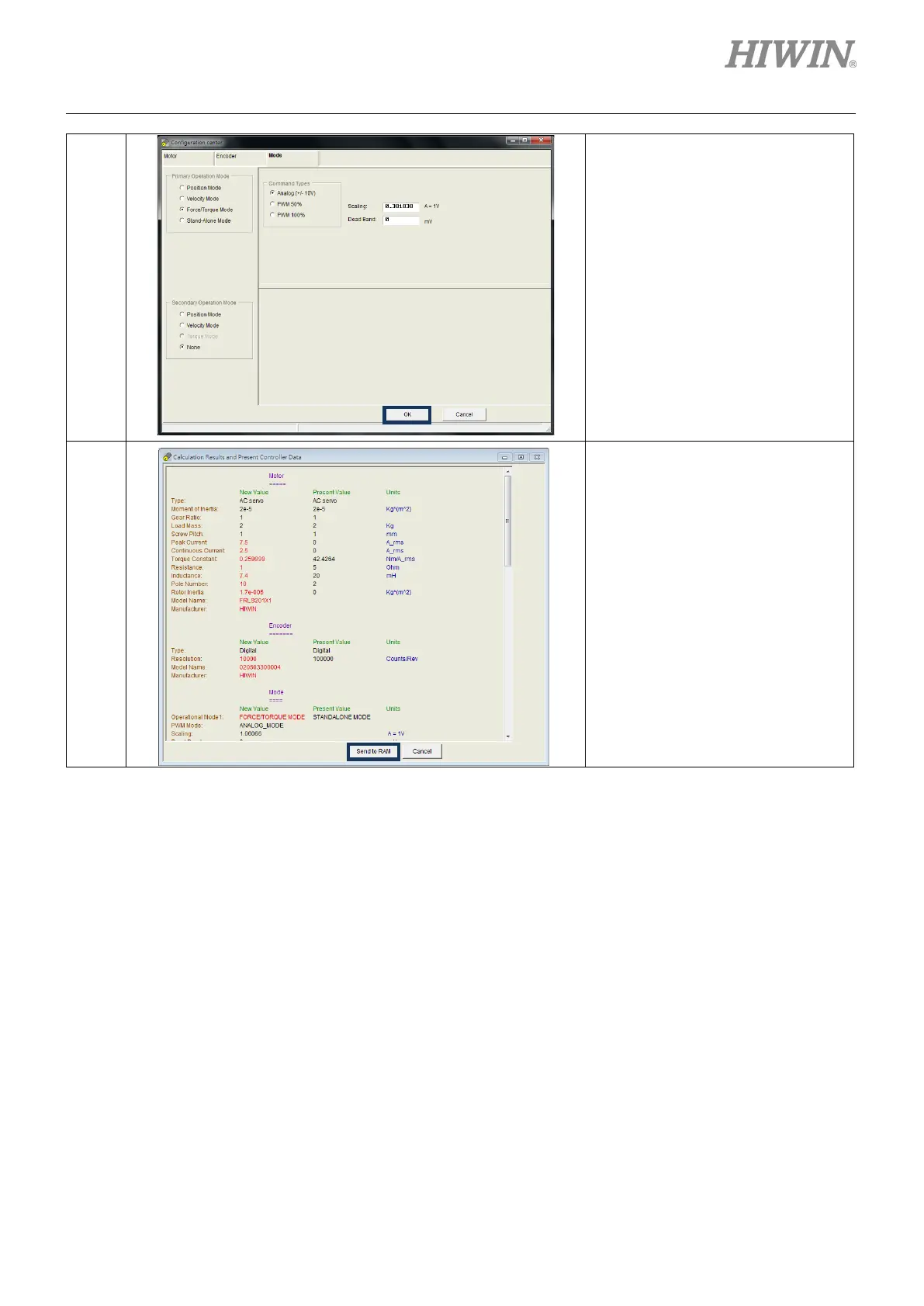

After all settings are completed, click
the “OK” button, as shown in the left
figure.
5
After the window for parameters
confirmation appears, click the “Send
to RAM” button to save parameters to
drive RAM.
5.9.4 Stand-alone mode
In the stand-alone mode, the drive will execute the internal path planning to drive the motor, referring to
Section 3.1.4.
The stand-alone mode configuration includes the mode selection. After all parameters are set, refer to
Section 5.8.1 to save parameters to flash.
