Hiwin D2 Series - Differential Interface for Low-Speed Pulse

Wiring D2 Series Servo Drive User Manual
4-34 HIWIN MIKROSYSTEM CORP.
MD07UE01-2005
4.6.1.2 Differential interface for low-speed pulse

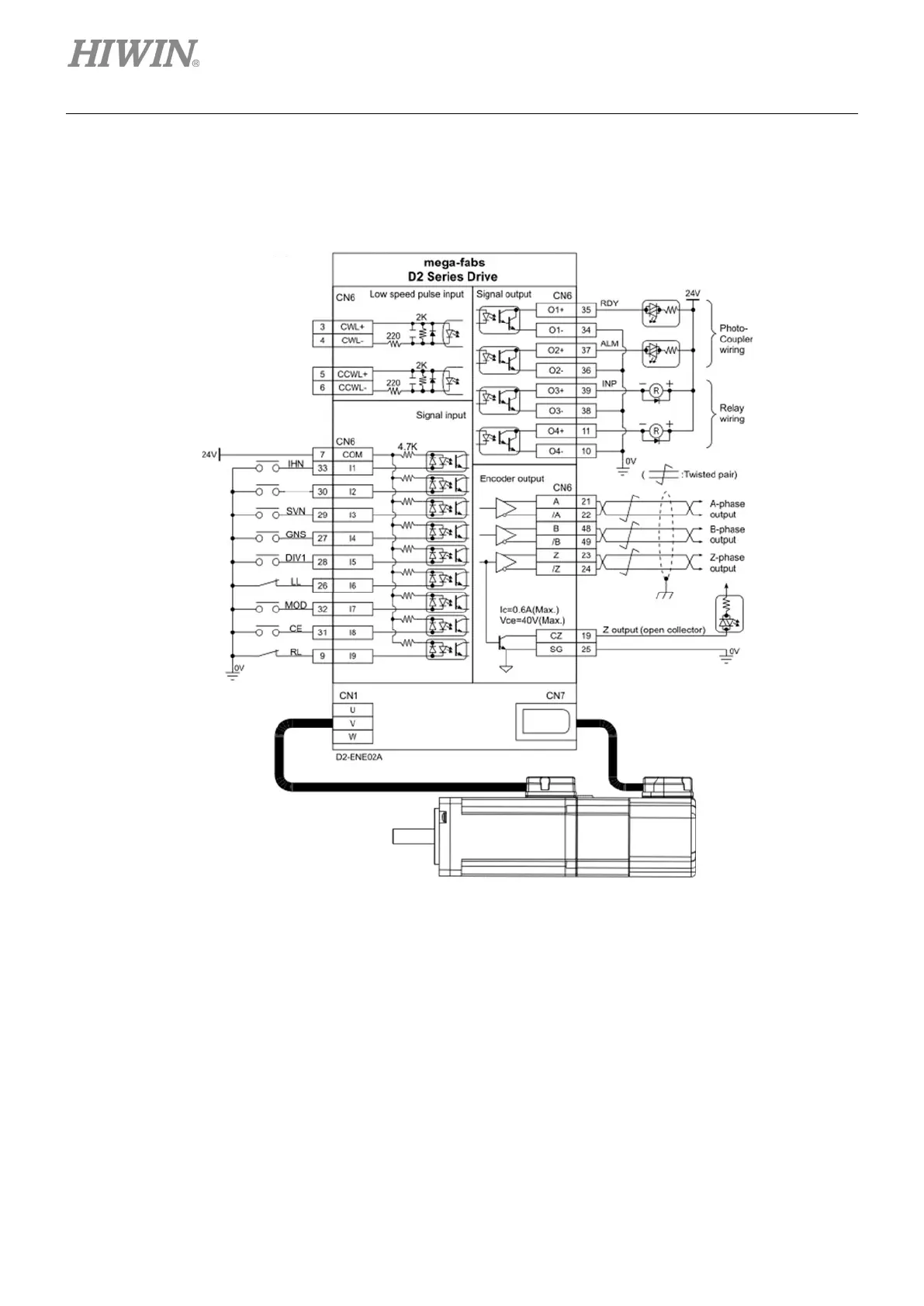

Wiring example for the host controller having the differential interface for low-speed pulse:
Figure4.6.1.2.1
Low-speed pulse command
(500K pps or less)
General-purpose inputs
(user
-defined)
General-purpose outputs
(user
-defined)
