EMC Solution D2 Series Servo Drive User Manual
14-4 HIWIN MIKROSYSTEM CORP.
MD07UE01-2005
A. Filter to drive
Table14.1.1 Specification for the filter-to-drive cable
Description
E191346 AWM 2586 2mm 2x4C 105
℃
600V VW-
1 AWM I/II B
2mm2x4C 105
℃
600V FT1 SIN YU RoHS
SUPER FLEXIBLE
AND OIL RESISTANCE CE
Cable Size
14 AWG
Table14.1.2 Pin assignment for the filter-to-drive cable
Pin (Color) Name Function
Red
U
Connect to the drive’s U-phase (input)
White
V
Connect to the drive’s V-phase (input)
Black
W
Connect to the drive’s W-phase (input)
Green
PE
Housing ground and cable shielding
B. Filter (J1) to motor
Table14.1.3 Specification for the filter J1
Description
4 position, 7.5mm pluggable female terminal block.
Manufacturer PN
Wago 721-864/001-000
Cable Size
28 – 12 AWG
Recommended Wire
14 AWG, 600 V
Wire Insertion/ Extraction Tool
475604 (SUPU) 4PIN, Female, pitch 7.5mm
Table14.1.4 Connector definition
Pin
Name
Function
1 U
Connect to the motor’s U-phase (output)
2
V
Connect to the motor’s V-phase (output)
3
W
Connect to the motor’s W-phase (output)
4
PE
Housing ground and cable shielding

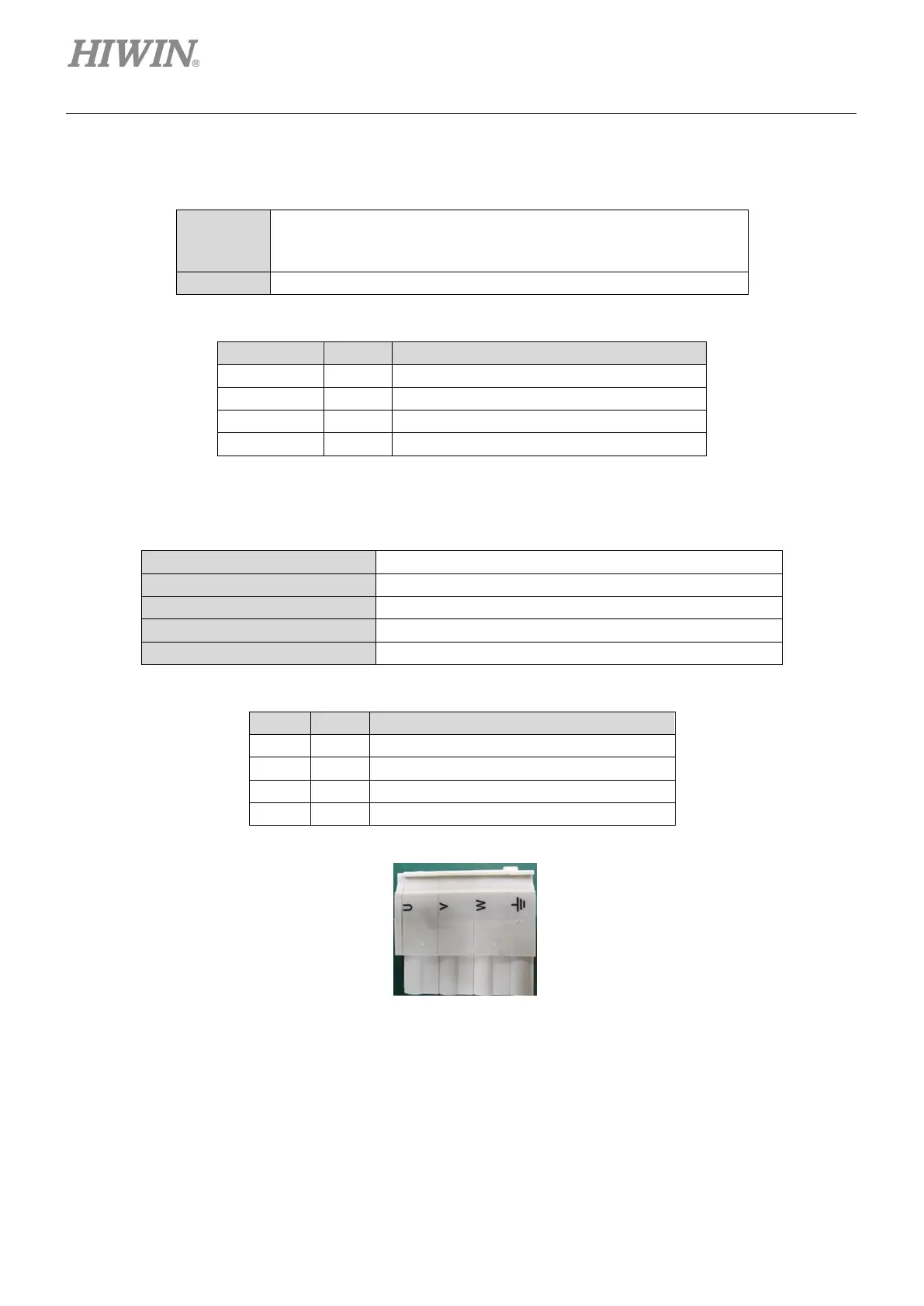

Figure14.1.4 Connector
