D2 Series Servo Drive User Manual EMC Solution
HIWIN MIKROSYSTEM CORP. 14-3
MD07UE01-2005

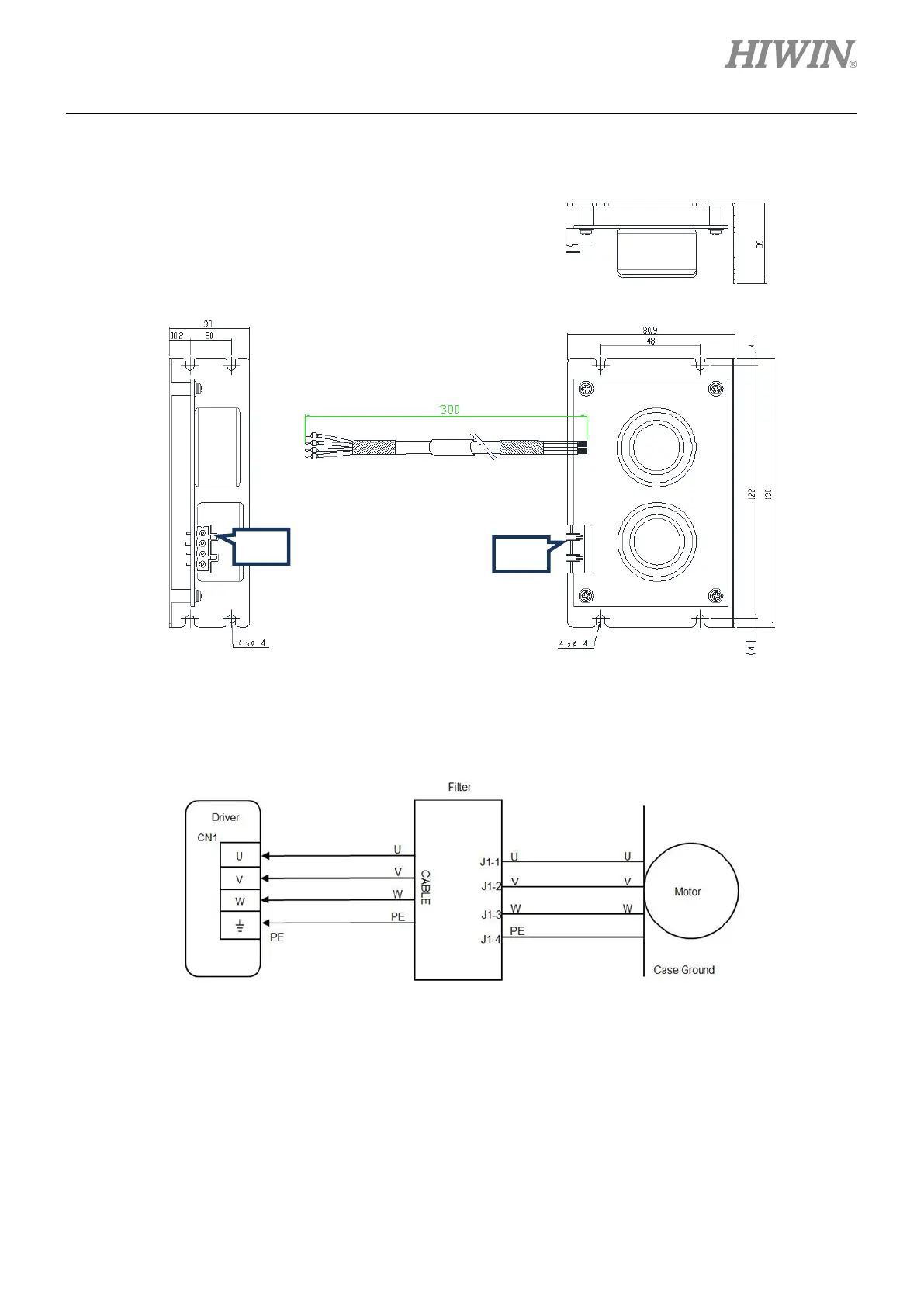

The MF-CM-S dimensions are shown as follows.
Figure14.1.2
The wiring diagram of common-mode motor filter with the drive and motor is given as follows.
Figure14.1.3
 Instruction
(1) Insert the terminal of common-mode motor filter into the drive CN1 in sequence based on the
line marked.
(2) Insert the motor cable into the connector of common-mode motor filter based on the label on the
connector.
J1
J1
