Hiwin D2 Series User Manual

Drive Tuning D2 Series Servo Drive User Manual
6-8 HIWIN MIKROSYSTEM CORP.
MD07UE01-2005

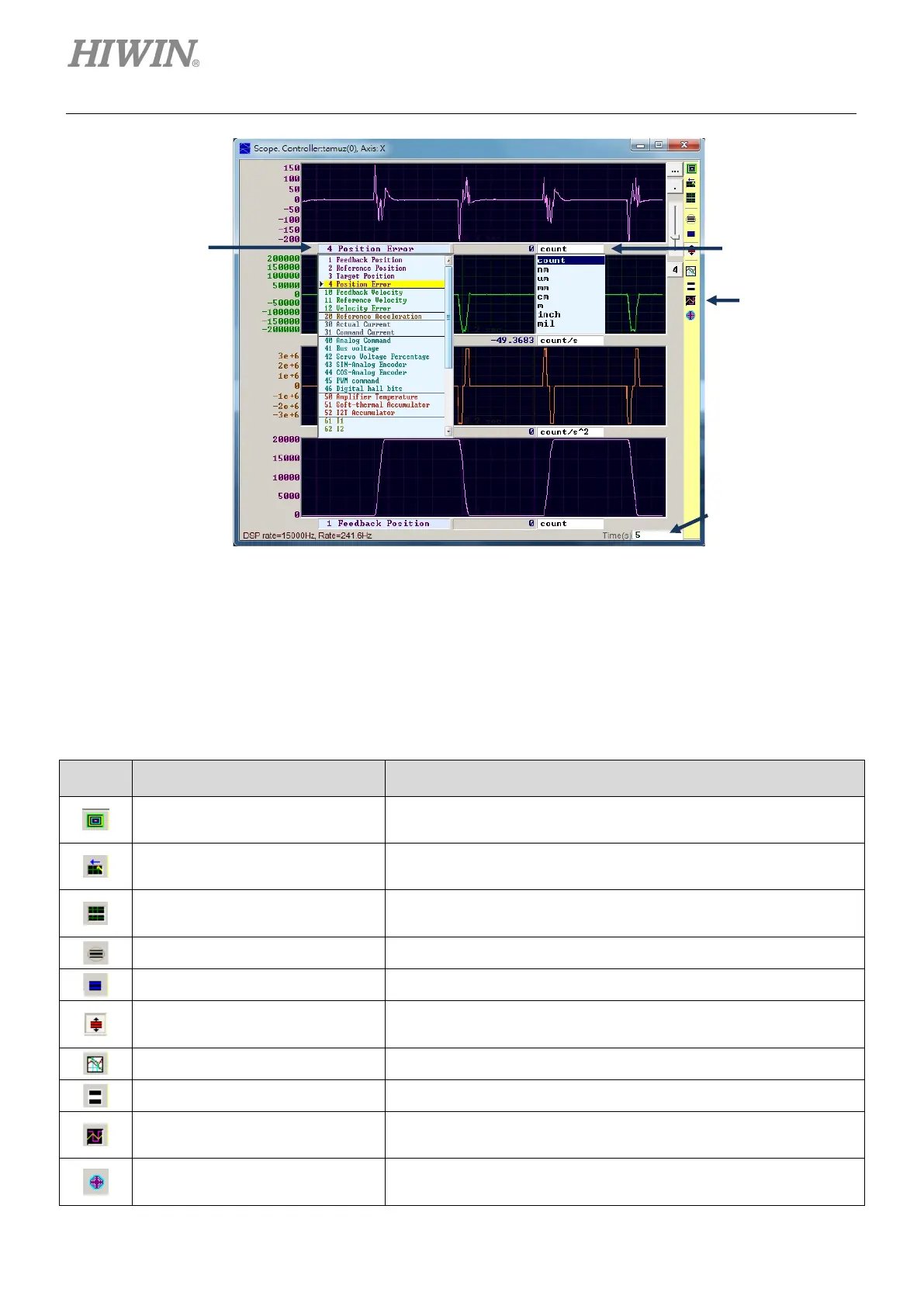

Figure6.3.1 Scope
(1) Physical quantity: Select the physical quantity to be observed, referring to Section 3.11.
(2) Unit: Select the unit of physical quantity.
(3) Number of channel: Select the number of channels to be displayed simultaneously (1 - 8).
(4) Time range of “Scope”: Set the time length for one screen on the horizontal axis. Unit: seconds.
Table6.3.1
Symbol Name Description
Scope On/Off (PageDown)
The switch of “Scope”. When the switch is turned off and then turned
on, the scope will re-capture the data.
View in paper mode (Ctrl+T)
Change the display waveform mode. There are the “Normal” and
“Paper” modes.
Toggle scopes window (PageUp)
Display all selected physical quantities on a single screen. Each
click to switch a physical quantity.
Fit graph to window
Adjust all physical quantities to the appropriate scale.
Fit graph to window dynamically
Adjust all physical quantities to the appropriate scale dynamically.
Fit graph to window dynamically
+ clip
Same as above, but the range of vertical axis will only increase
without reduction.
Show last data with plot view tool
Use the “Plot view” tool to draw the data of “Scope”.
Reset scope
“Scope” will re-capture the data.
Show all plots in same window
All physical quantities are drawn in the same screen and share one
vertical axis.
Open recorder window
Connect physical quantities currently set by “Scope” to the “Data
collection” function.
○3
○1
○4
○2
