LCD Operation D2 Series Servo Drive User Manual
7-6 HIWIN MIKROSYSTEM CORP.
MD07UE01-2005

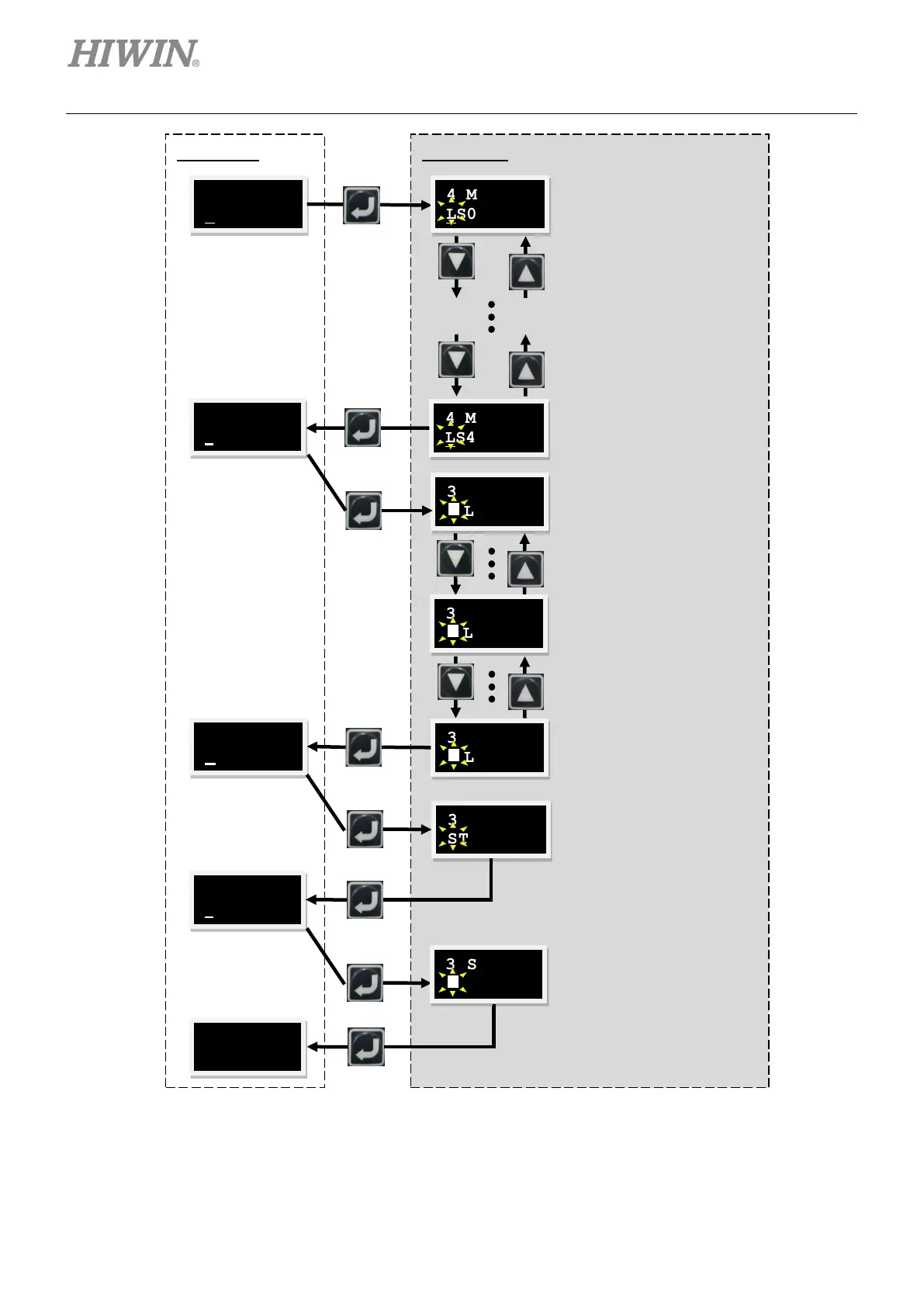

Figure7.2.1 Setting procedure of motor parameter initialization
1 SVNRDY
X
LEVEL TWO
LEVEL ONE
4 MOTRSE
LS05XX5
4 MOTRSE
LS05XX5
4 MOTRSE
LS402X5
3 ZT
LV5 100
3 ZT
LV5 100
3 MODE
STNDALON
3 MODE
STNDALON
3 SAVEFL
NO
3 SAVEFL
NO
Use the
Up key
or
Down key
to select
the motor model
name.
Set the operation mode.
Use the
Up key
or
Down
key
to select the
operation mode.
Save parameters to Flash.
R
efer to Section 7.5.1.
3 ZT
LV3 50
3 ZT
LV5 100
Tune “ZeroTune” gains.
Refer to table 7.2.1.
