D2 Series Servo Drive User Manual Parameter Comparison
HIWIN MIKROSYSTEM CORP. 11-3
MD07UE01-2005
The following is the function description of main button:
○
1
Save: Save parameters to Flash.
○
2
Close: Close the window.
○
3
Up: Go to the previous parameter which is different in RAM and Flash.
○
4
Down: Go to the next parameter which is different in RAM and Flash.
○
5
Undo: Restore the selected parameter saved in RAM to that saved in Flash
○
6
Refresh: Re-compare parameters saved in RAM and Flash.

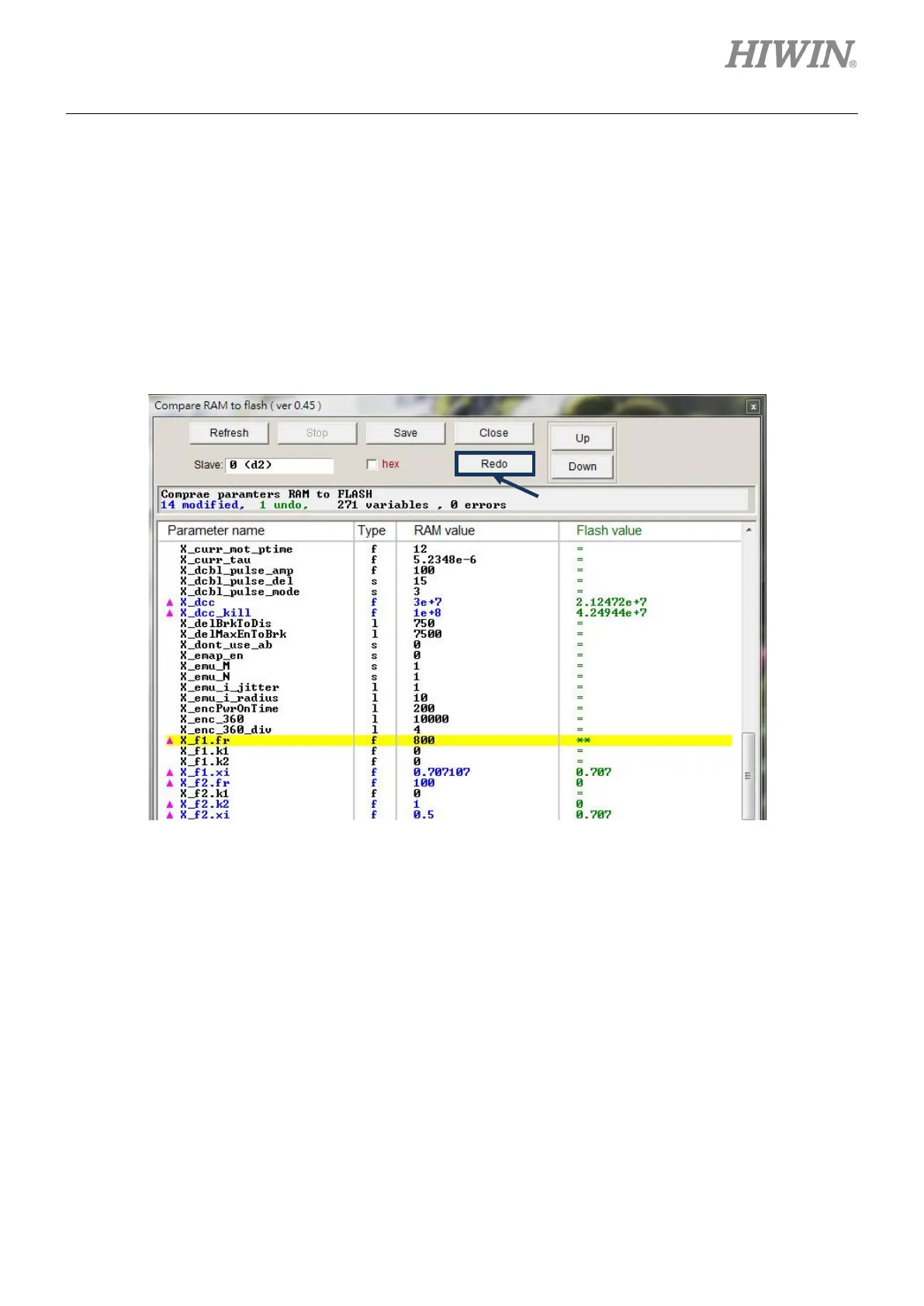

Figure11.1.3
○
7
Redo: Cancel the previous “Undo” action for the selected parameter.
○7
