Update Firmware And Load PDL D2 Series Servo Drive User Manual
12-8 HIWIN MIKROSYSTEM CORP.
MD07UE01-2005
 Install parameter patch

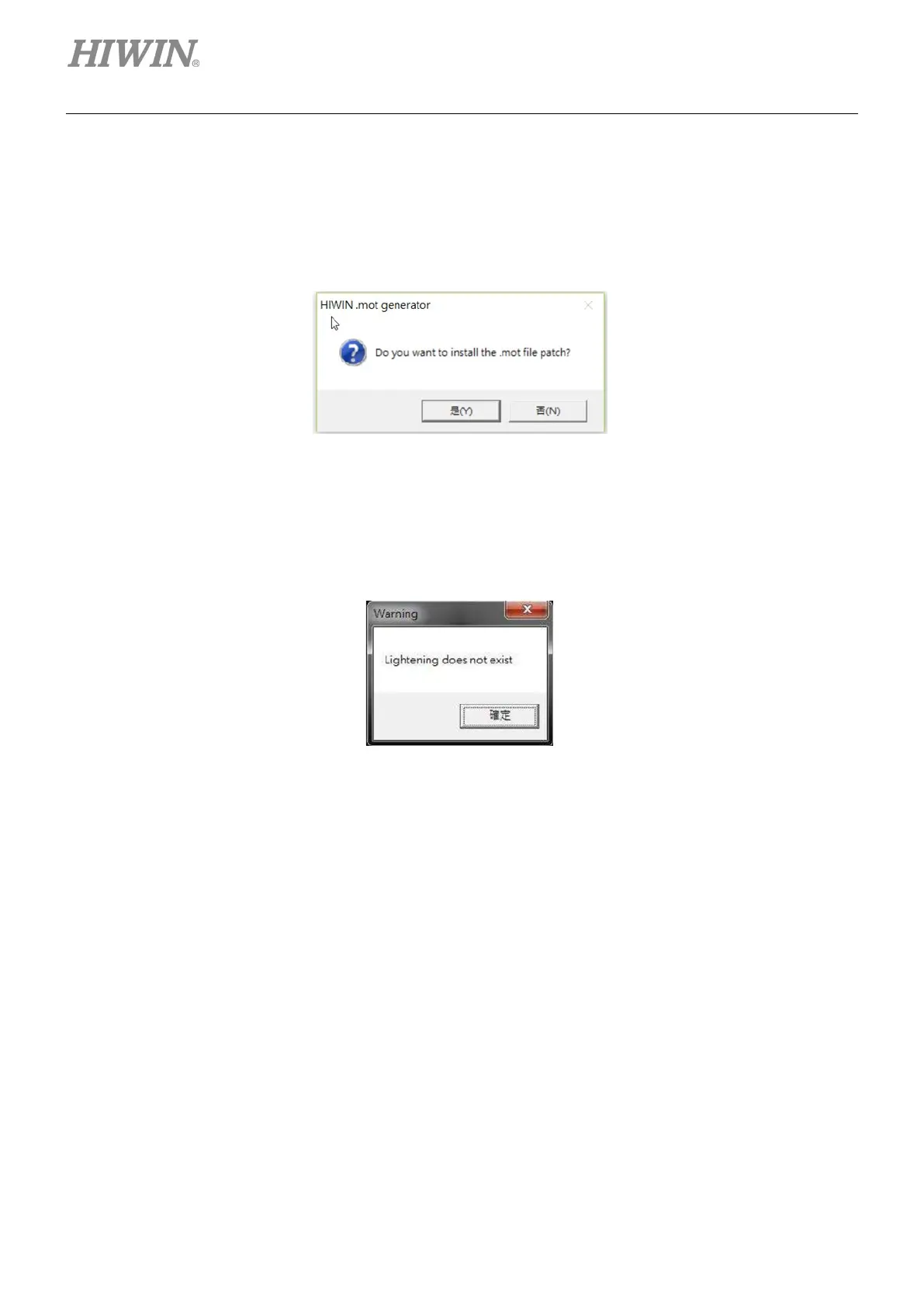

After parameter patch is extracted, parameter_patch_4.6.exe appears. Click on this file. Then
HIWIN .mot generator dialog window appears. Click on (Y) button to install the patch. Ignore the
windows which appear during the installing process. After all the windows close, the installation
completes.
Figure12.3.2
 Other
If Lightening is not installed, a warning window appears informing user that Lightening is not
installed.
Figure12.3.3
