NOTE: One person must be available to lift the switch while another secures the switch to the

rack.

CAUTION: If you are mounting multiple switches on a rack, mount a switch in the

bottom of the rack first and proceed to mount the rest of the switches from bottom

to top.

To mount the switch on two posts of a rack:

1. Place the switch on a flat, stable surface.

2. Align the mounting brackets along the front, rear, or center of the side panels of the switch chassis

depending on how you want to mount the switch. For example, if you want to front-mount EX4300

switches except EX4300-48MP and EX4300-48MP-S switches, align the brackets along the front of

the side panel (see Figure 119 on page 357). If you want to front-mount an EX4300-48MP or

EX4300-48MP-S switch, align the brackets 17.5 mm offset from the front panel (see

Figure 120 on page 357 and Figure 121 on page 358).

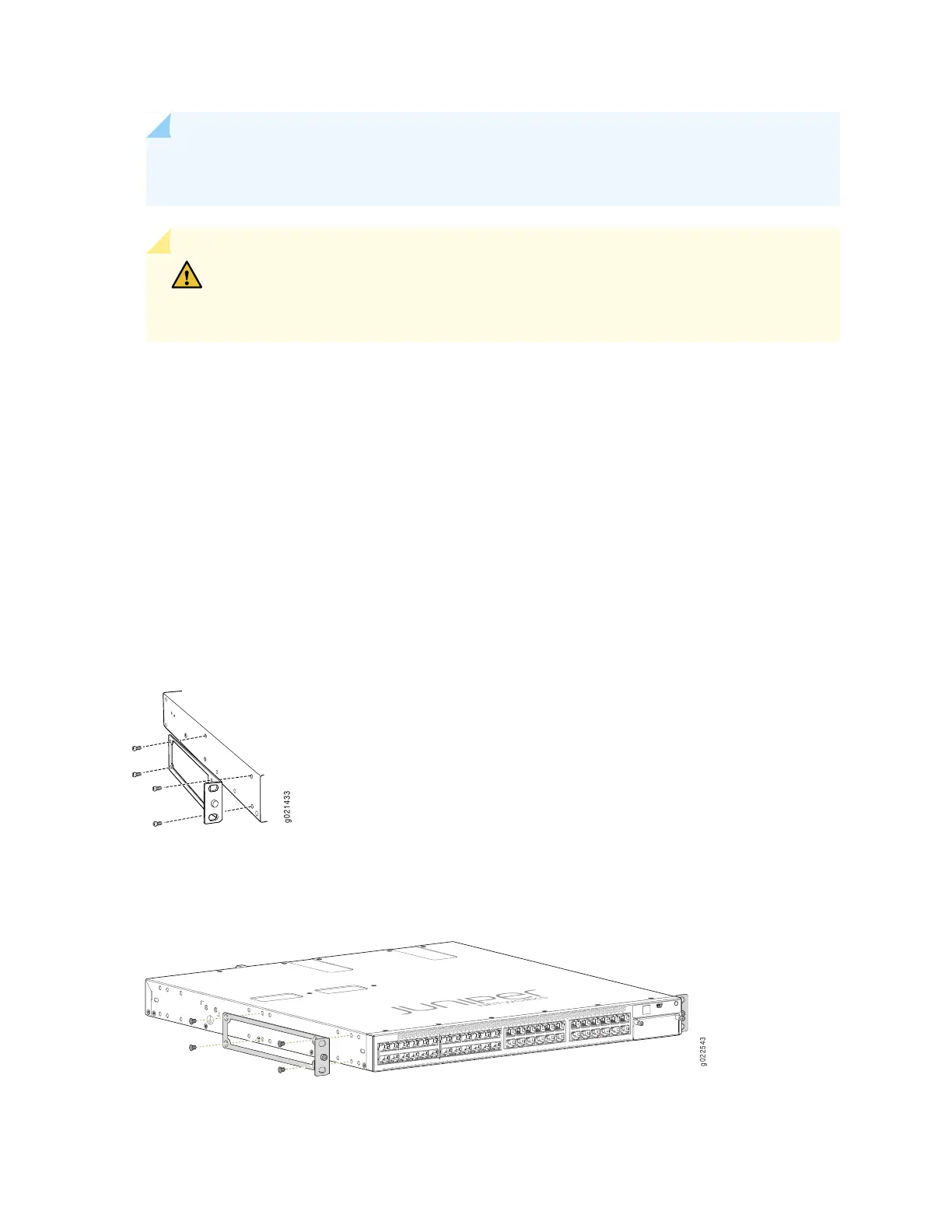

Figure 119: Attaching the Mounting Bracket to the Side Panel of EX4300 Switches Except EX4300-48MP

and EX4300-48MP-S Switches

g021433

Figure 120: Attaching the Mounting Bracket to the Side Panel of EX4300-48MP and EX4300-48MP-S

Switches

g022543

357
