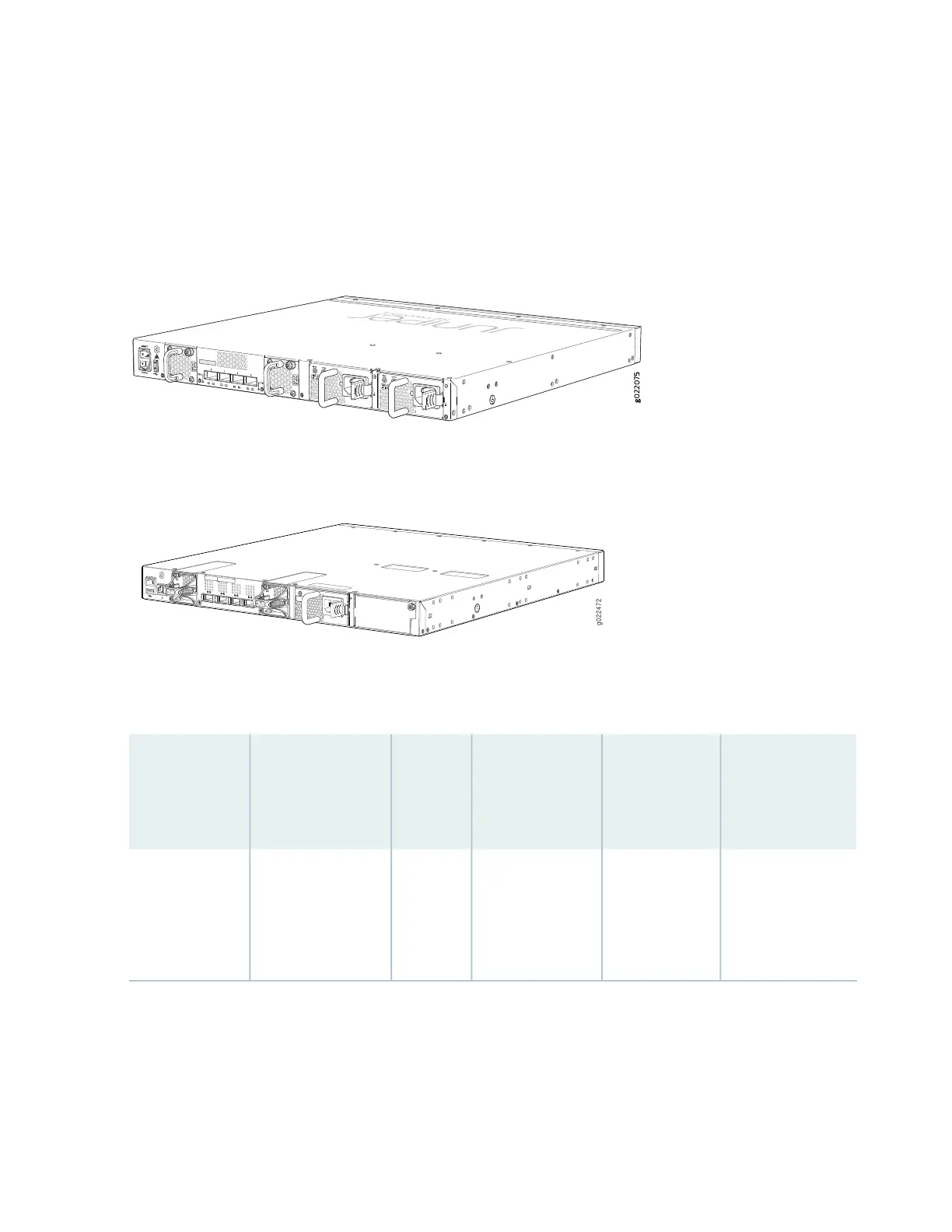

Figure 36 on page 66 shows the rear panel of 48-port EX4300 switches except EX4300-48MP and
EX4300-48MP-S switches, with power supplies and fan modules installed. Figure 37 on page 66 shows
the rear panel of EX4300-48MP and EX4300-48MP-S switches, with power supplies and fan modules
installed.
Figure 36: Rear Panel of 48-Port EX4300 Switches Except EX4300-48MP and EX4300-48MP-S Switches
Figure 37: Rear Panel of EX4300-48MP and EX4300-48MP-S Switches
g022472
Table 6 on page 66 lists the 48-port EX4300 switch models and their components.
Table 6: Components in 48-Port EX4300 Switches
Supported Uplink
Modules
Power Supply
Shipped by
DefaultFan Modules
Number
of PoE-
enabled
PortsBuilt-In PortsSwitch Models
4-port 10-Gigabit
Ethernet SFP+
uplink module
(model number:
EX-UM-4X4SFP)
A 350 W AC
power supply
with the AIR
OUT (AFO)
label.
Two fan modules;
each with an AIR
OUT (AFO) label.
048
10/100/1000BASE-T
Ethernet ports and
four QSFP+ ports
EX4300-48T
