Installation
The angle of detection of the curtain motion detector is 10° and 110° (vertically or
horizontally - depending on the alignment of the device). The sensor detects movements
only if the 10° angle is crossed (see arrows in the examples below).
The curtain motion detector is designed to be installed on a wall or ceiling. Depending on
the place of installation, the curtain motion detector protects you against different
scenarios of intrusion.

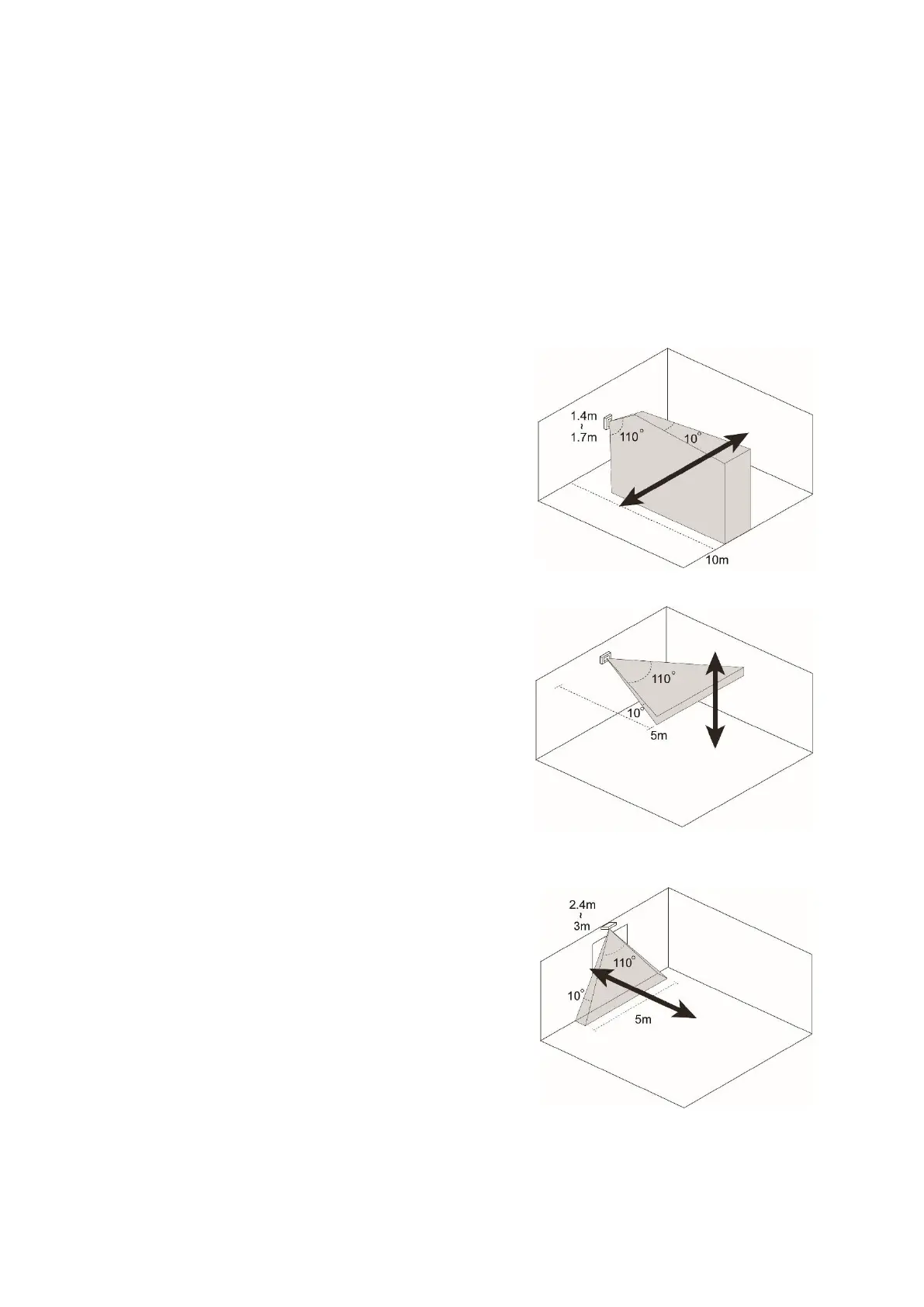

Wall installation (vertically):
Install the curtain motion detector in a height
between 1.4 and 1.7 meters (4.59 ft. and
5.57 ft.). The detection range is up to 10
meters (10.9 yards).
Do not install the curtain motion detector
higher than 1.8 meters (5.9 ft.)!
Wall installation (horizontally):
If you install the curtain motion detector
horizontally, the maximal range for a
detection is 5 meters (5.4 yards).
You can use this type of installation to
detect intruders coming from the ceiling /
roof. Horizontal movements (form left to
right or vice versa) are not detected!
You should install the curtain motion
detector in a height of at least 2.2 meters
(7.21 ft.) in order to prevent false alarms.
Ceiling installation:
Install the curtain motion detector on the
ceiling to secure entrances into a room
(windows / doors).
If you install the curtain motion detector in a
height between 2.4 and 3.0 meters (7.87
and 9.87 ft.), a strip of 5 meters (5.46 yards)
is secured on the floor.
Do not install the curtain motion detector
higher than 4 meters (13.12 ft.) in order to
secure a correct functionality.
Mounting:
