187

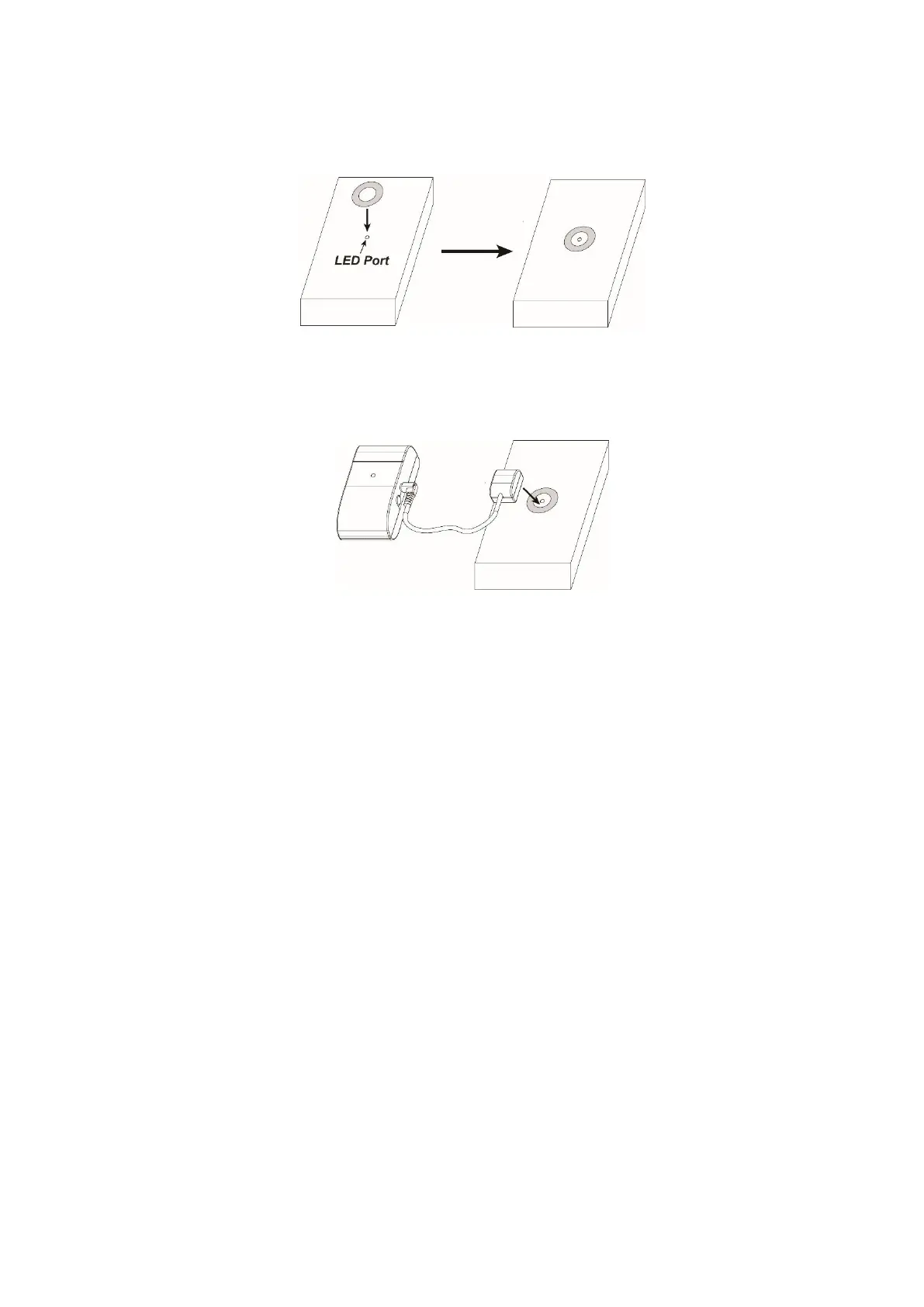

main electric meter. The IR interface needs to remain accessible (double-sided tape
and washers are included).
2. The IR sensor of the electric meter is equipped with a magnet. Place the sensor on
the washer in a way that the sensor can connect with the IR interface of your main
electric meter.
3. In order to enhance the wireless transmission of the electric meter, lead the cable
of the IR sensor (4) out of the security box your main electric meter is installed in.
4. Place the electric meter on top of your main electric meter or, alternatively, you can
screw it onto the wall next the main electric meter:
Mark the position of the mounting holes on your wall and drill two holes for the
screws.
Use the included dowels and screws.
Install the electric meter on the wall by hooking the mounting holes into the
screws.
