XT3

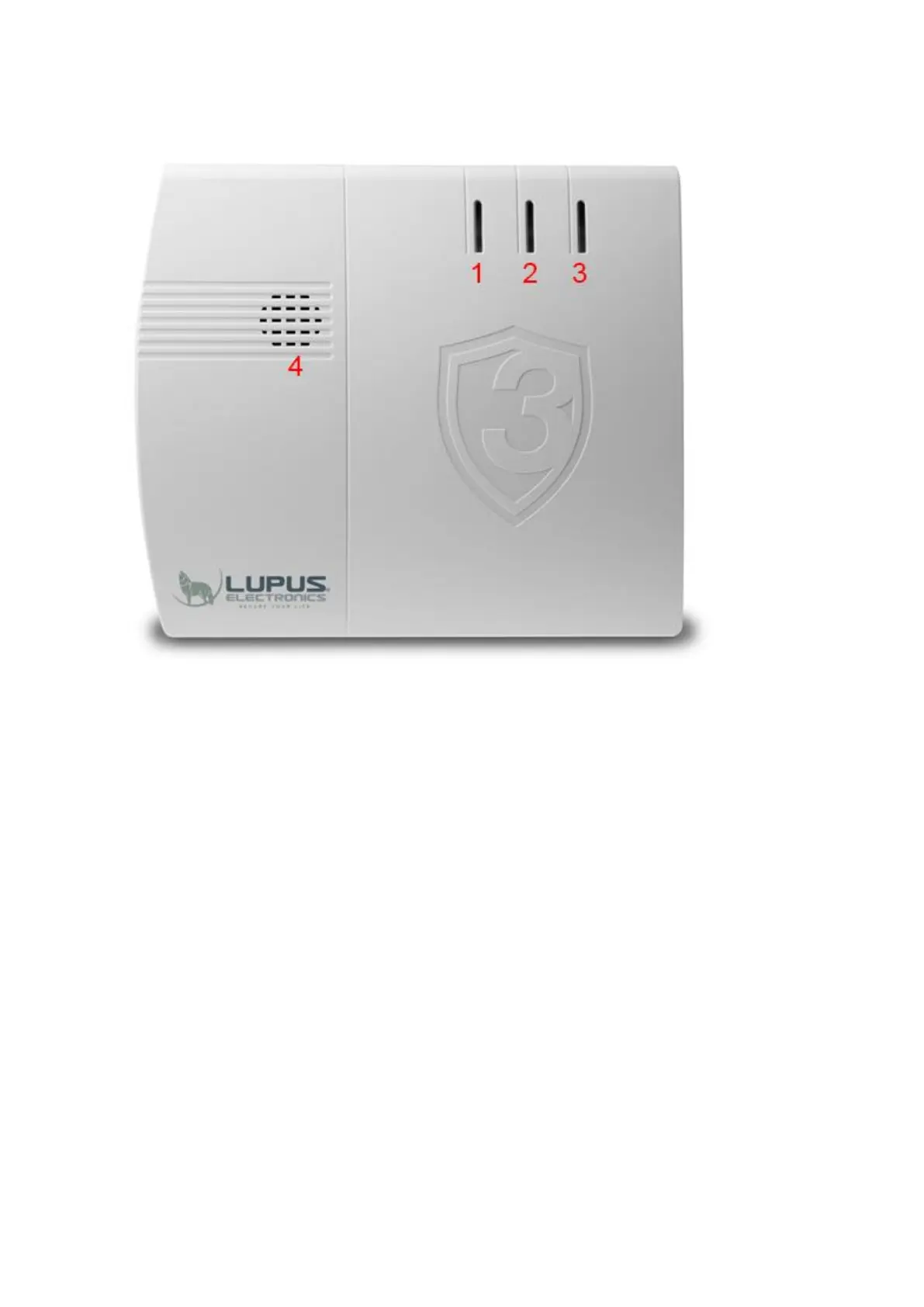

1. Error LED
 Red = system error (list via “System”  “Status”  “Panel”)
 Off = system in correct state
2. Area 1 LED
 Red = Area 1 in armed mode (Arm)
 Green = Area 1 in Home mode (Home 1, Home 2, Home 3)
 Flashes red = Alarm in Area 1
o Switch the flashing off by disarming Area 1
 Flashes green + Area 2 LED flashes green = Alarm panel is in Add sensors
mode or Test range mode
 Off = Area 1 is disarmed, the system memory does not contain any alarm
3. Area 2 LED
 Red = Area 2 in Armed mode (Arm)
 Green = Area 2 in Home mode (Home 1, Home 2, Home 3)
 Flashes red = alarm in Area 2
o Switch the flashing off by disarming Area 2
 Flashes green + Area 1 LED flashes green = Alarm panel is in Add sensors
