If you connect multiple repeaters, the distance between the repeaters should also
be at least 10 meters (10.9 yards).
All repeaters need to be added to the alarm panel.
You need to add a sensor to all repeaters that are used for the transmission of its
signal to the alarm panel.

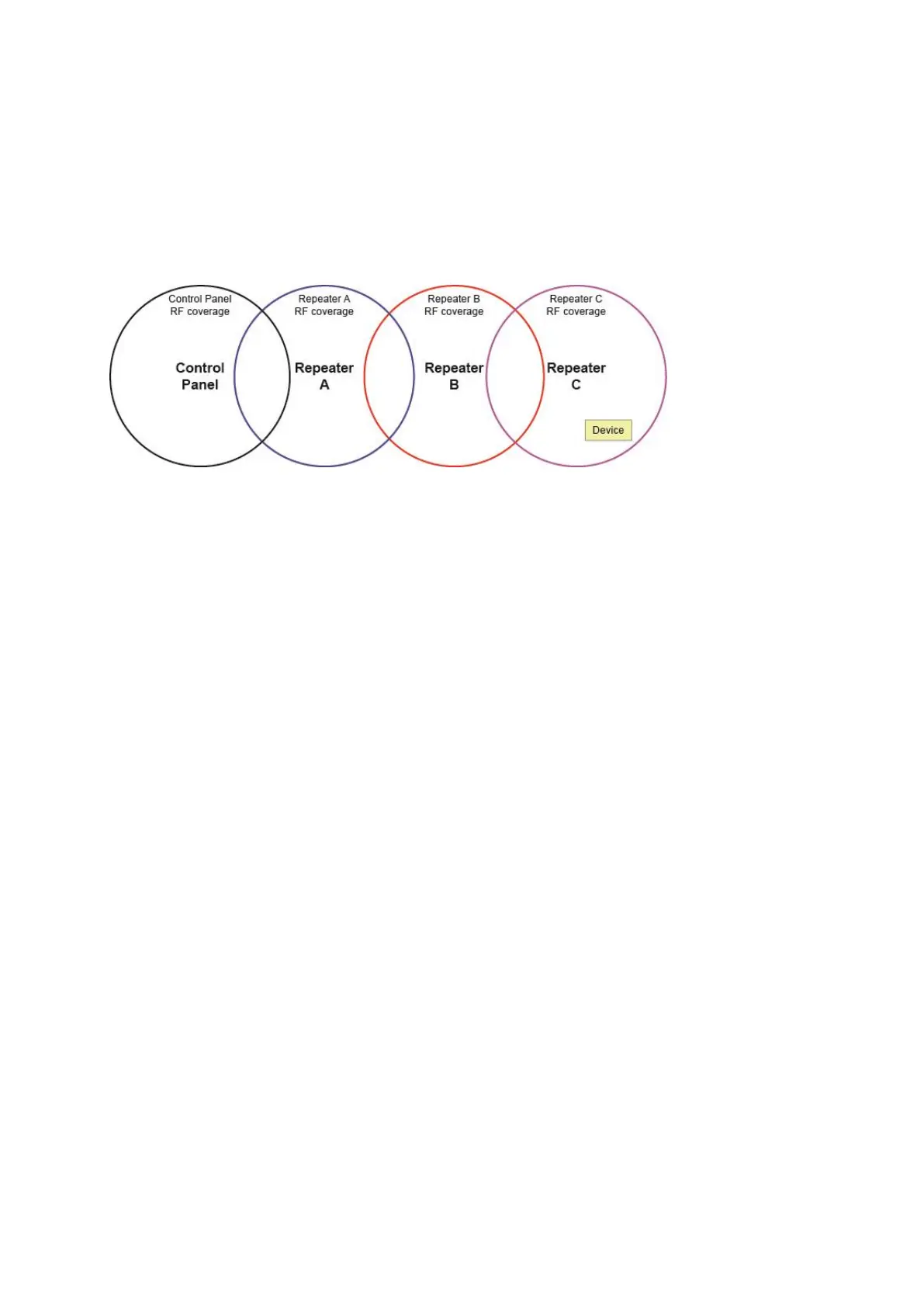

Repeater chain:
Example:
The sensor needs to be added to all repeaters (A, B, and C).
If you connect more than one repeater in a chain (C B A alarm panel), you
need to add the most distant wireless repeater to the next nearer one (C added to
B, B added to A).
o Add repeater C to B. Do not add repeater B to C.
o Add repeater B to A. Do not add repeater A to B.
o Add repeater A to the alarm panel.
Adding a repeater to another repeater:
In order to add repeater C to repeater B, you need to start the learn mode in
repeater B. Press the “”learn button (sensor)”.
Press the “learn button (alarm panel)” of repeater C.
If the adding was successful, both repeaters emit a notification sound.
Connect a sensor always to the closest wireless repeater V2. Sensors that are not
installed at a fixed location (e.g. remote control) can be added to more than one
repeater.
All sensors also need to be added to the alarm panel.
Repeater mesh:
Example 1:
