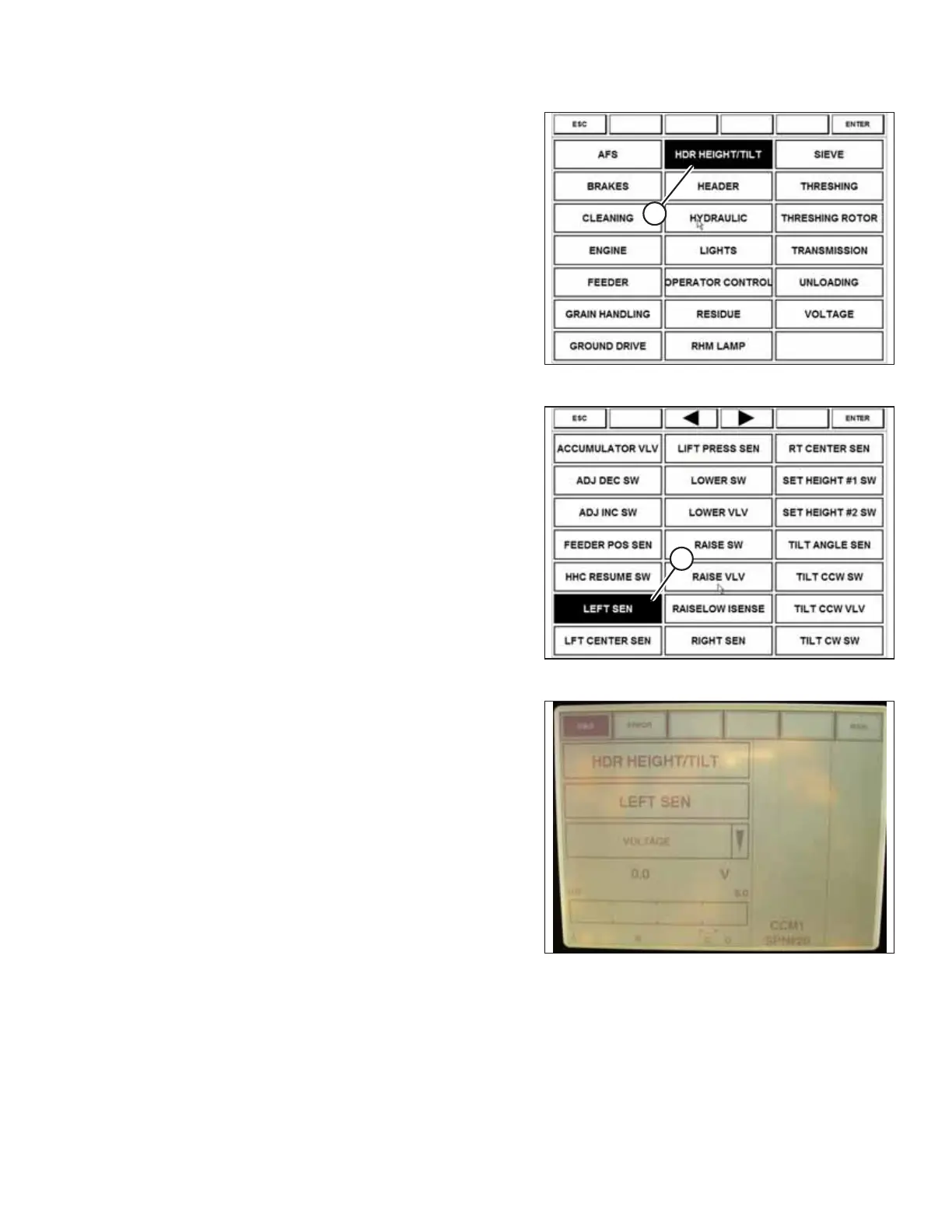

Figure 4.69: Case 8010 Combine Display
4. Select HDR HEIGHT/TILT (A). The SENSOR page appears.
Figure 4.70: Case 8010 Combine Display
5. Select LEFT SEN (A). The exact voltage is displayed. Raise
and lower the header to see the full range of voltage
readings.
Figure 4.71: Case 8010 Combine Display
6. If the sensor voltage is not within the low and high limits
shown in 4.4 Height Sensor Output Voltage Range –
Combine Requirements, page 111, or if the range between
the low and high limits is insufficient, then you will need to
make adjustments to the height sensors. For instructions,
refer to 4.4.2 Adjusting Header Height Sensor Voltage
Range – Left Side, page 114 and 4.4.3 Adjusting Header
Height Sensor Voltage Range – Right Side, page 114.
AUTO HEADER HEIGHT CONTROL
