MacDon PW8 - Installing Slave Cylinder

215575 302 Revision B

$
Figure 5.189: Slave Cylinder Connected to Hose—
Right Side of Header
10. Disconnect hydraulic hose (A) from the slave cylinder. Install
a cap onto the hose end, or wrap the end with plastic to
prevent contamination.
Installing Slave Cylinder
You will need the 45° hydraulic fitting from the previously removed hold-down slave cylinder to complete this procedure.

$

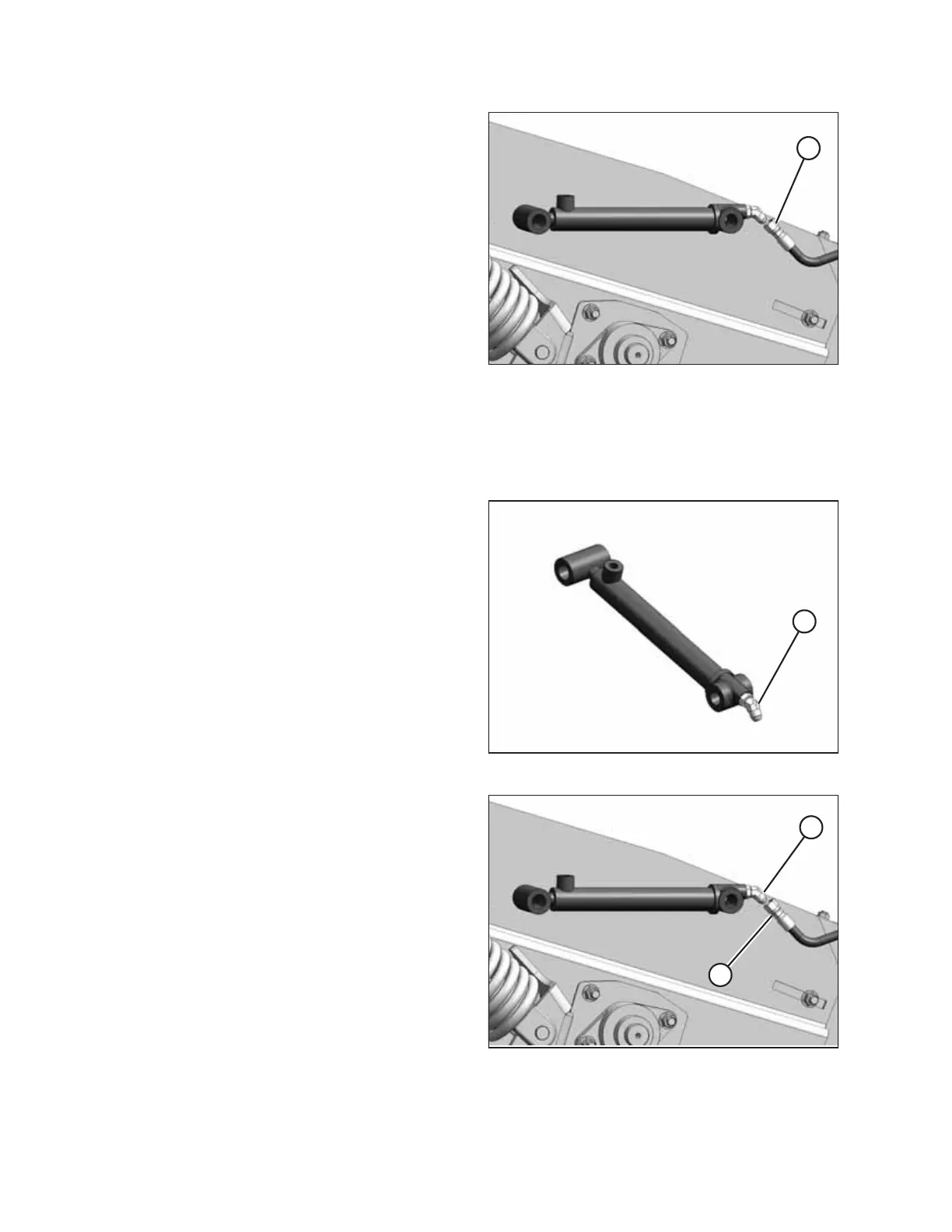

Figure 5.190: Slave Cylinder — Right Side of Header
1. Remove 45° fitting (A) from the previously removed slave
cylinder.
NOTE:
If the slave cylinder has not been removed, refer to
Removing Slave Cylinder, page 300 for removal instructions.
2. Remove the plug from the new slave cylinder’s hydraulic
port.
3. Install fitting (A) onto the new slave cylinder as shown.
Ensure that the fitting is in line with cylinder and tighten
the jam nut on the fitting.

$
%
Figure 5.191: Slave Cylinder — Right Side of Header
4. Connect hose (A) from the master cylinder to fitting (B) and
tighten the fitting.
