MacDon PW8 - Draper Deck Roller Bearings

215575 269 Revision B

$
%
&
'

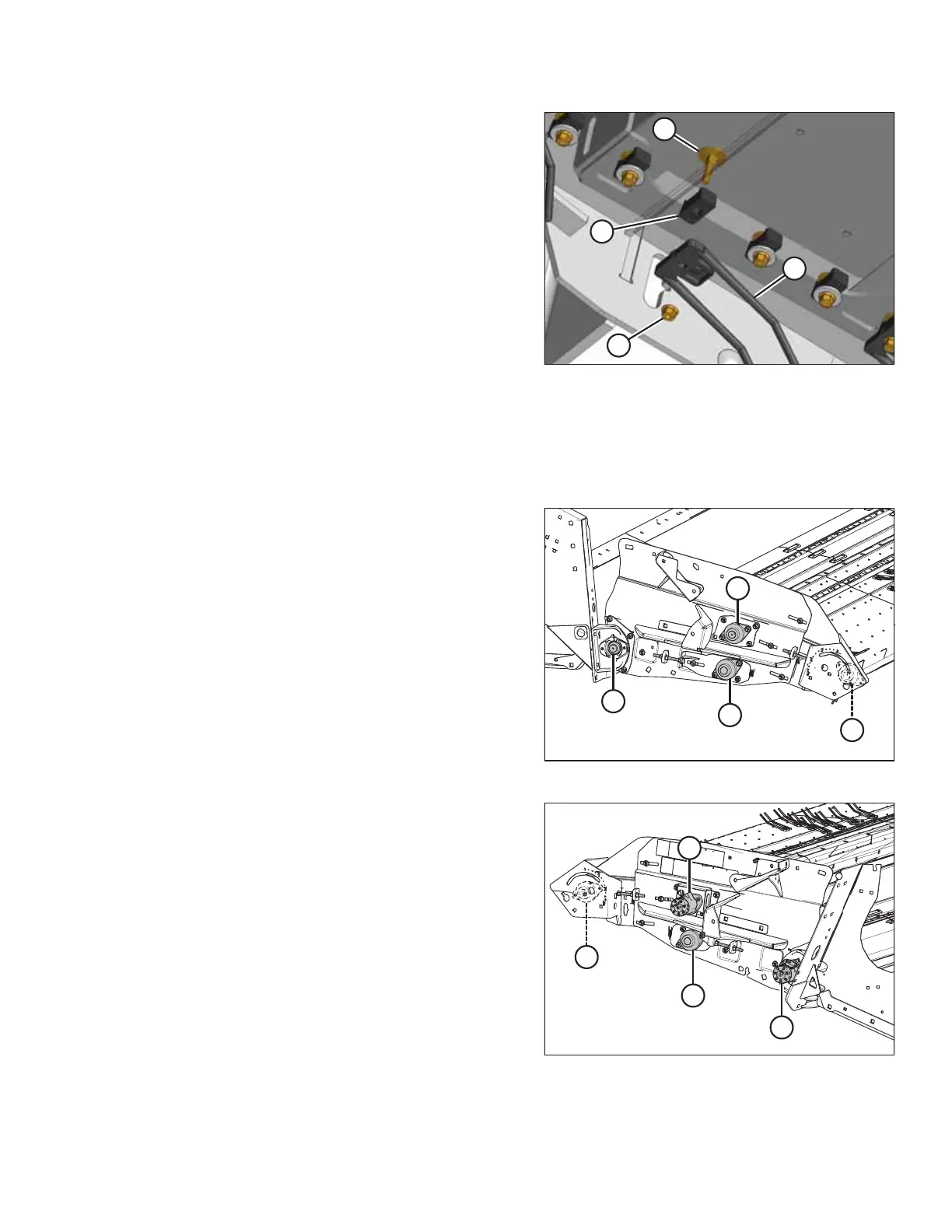

Figure 5.110: Draper Guide
10. Use M6 x 30 elevator bolt (A) if guide (D) is in a finger
location, and install finger (B) BEFORE installing flange
nut (C).
11. Torque flange nut (C) to 4–5.6 Nm (37–50 lbf∙in). Hold
finger (B) or guide (D) to prevent them from turning while
tightening the flange nut.
IMPORTANT:
Ensure that guides (D) are perpendicular to the direction of
draper travel.
12. Rotate the draper belt manually to access all guides (D).
5.7.3 Draper Deck Roller Bearings
Each draper deck is supported by two bearings, for a total of eight draper deck bearings. Six of these are equipped with
grease fittings.

$
%
&
'
Figure 5.111: Draper Roll Bearings – Right Side
Each draper deck roller is supported by two self-aligning roller
bearings. Replace the roller bearings if they are worn or
damaged.
NOTE:
Bearings (A), (B) and (C) are equipped with grease fittings.
Bearing (D) does not have a grease fitting. Bearing (A) is
accessible from under the right support plate.

$
%
&
'
Figure 5.112: Draper Roll Bearings – Left Side
NOTE:
Bearings (A), (B) and (C) are equipped with grease fittings.
Bearing (D) (behind the drive motor) does not have a grease
fitting. Bearing (A) is accessible from under the left support plate.
MAINTENANCE AND SERVICING
