215575 321 Revision B
Chapter 6: Options and Attachments
Several optional kits are available for your pick-up header, depending on your specific performance needs.
6.1 Hold-Down Performance Kit
The Hold-Down Performance kit assists with the delivery of light crop onto the pick-up header. This kit is useful when the
fingers have difficulty picking up the crop and have a tendency to throw the crop forward.

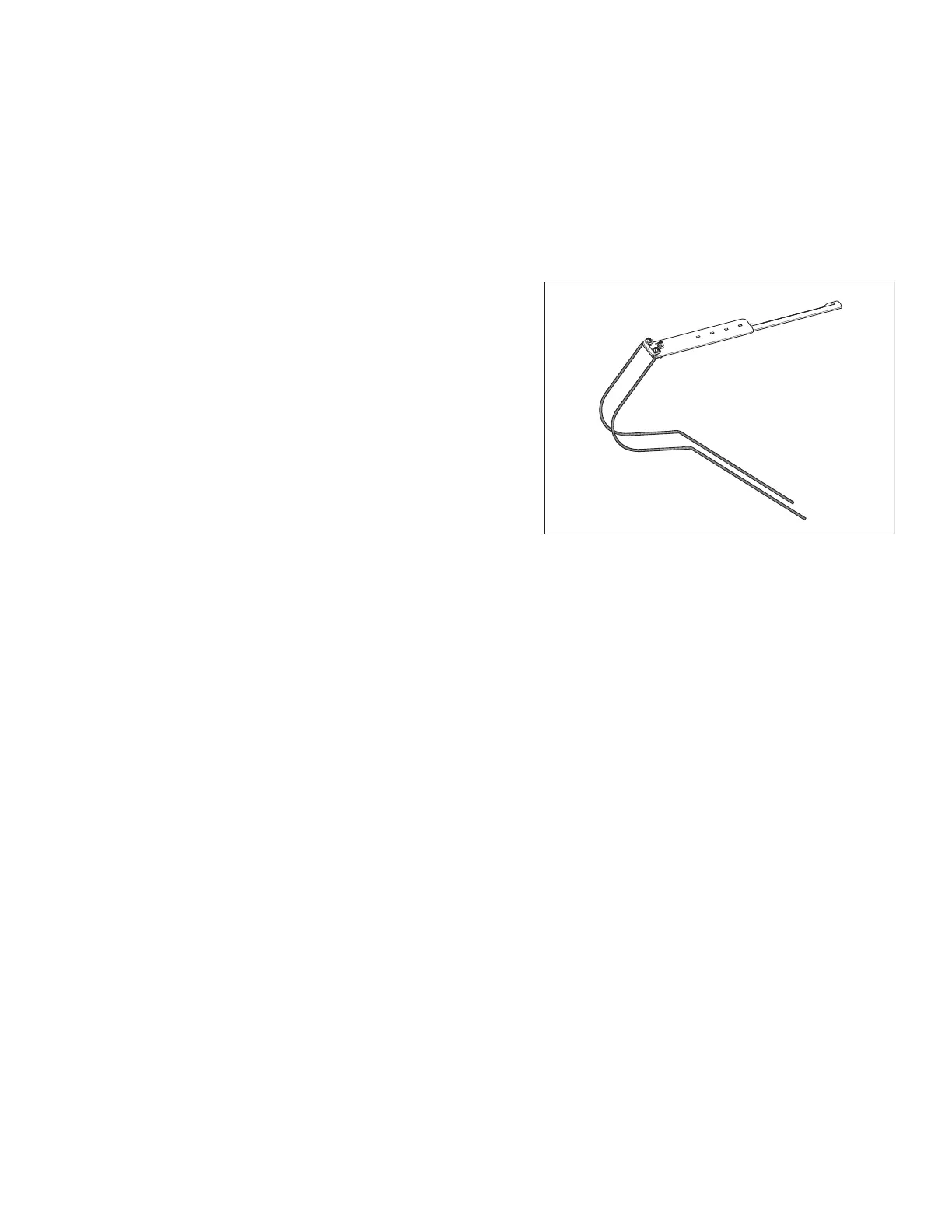

Figure 6.1: Hold-Down Performance Kit
This kit attaches to the hold-down bar. It consists of a series of
spring wires that rotate or lock by moving the center nut. The
wires project forward and downward into the crop.
Attachment hardware and installation instructions are included
in the kit.
MD #B5475
