5.5 Drives
This section covers maintenance procedures for the header, draper, and auger drives. Consult the maintenance schedule
for specific maintenance intervals.
5.5.1 Header Driveshaft
Perform this procedure regularly to extend the service life of the driveshaft. Ensure that the splines are free from dust and
dirt.

$

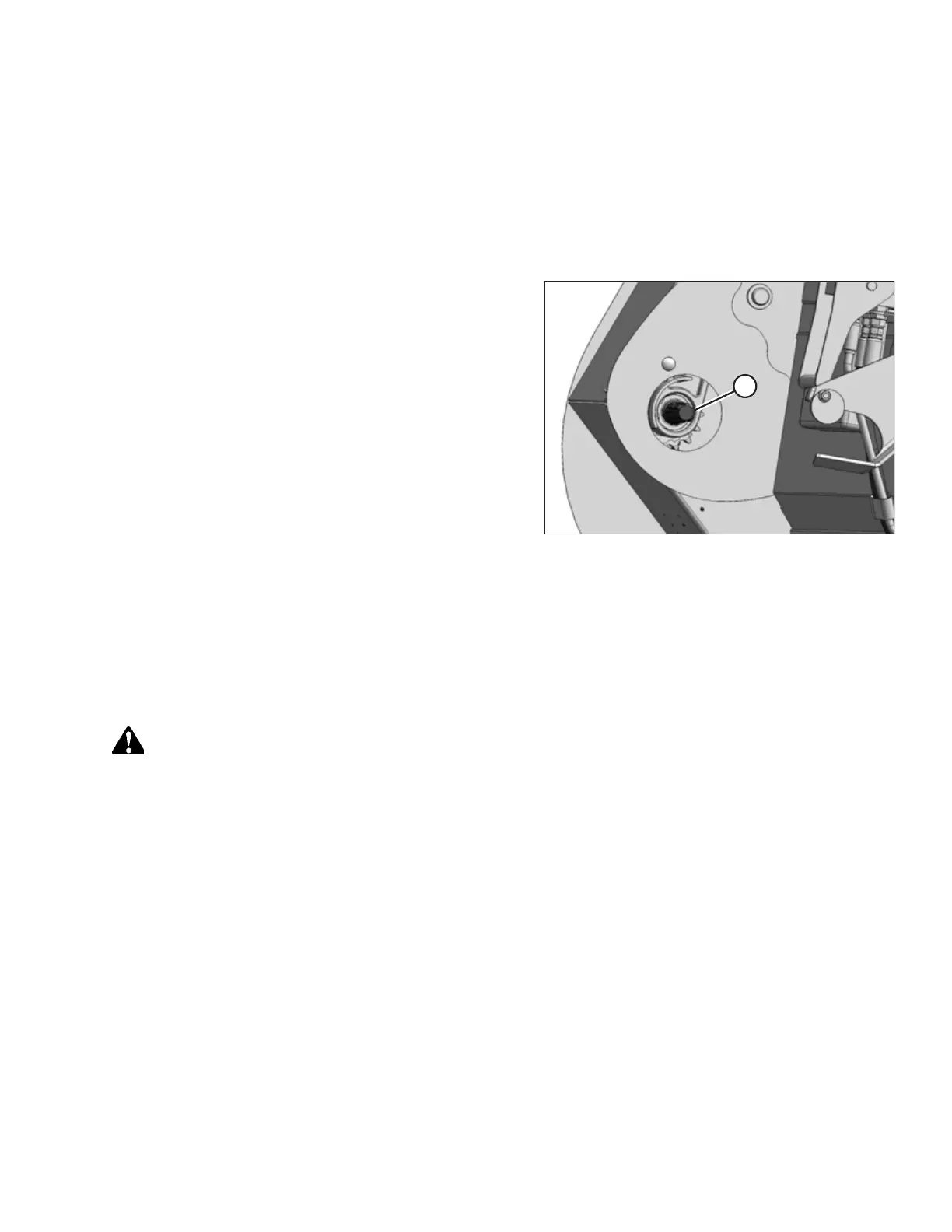

Figure 5.8: Header Driveshaft Splines
Clean and grease header driveshaft splines (A) regularly to
reduce corrosion and wear. Refer to 5.2.1 Maintenance
Schedule/Record, page 216 for information on how often to
perform this procedure.
NOTE:
Remove the header end of the driveline to access the splines. For
instructions, refer to Removing Header Driveline, page 225.
5.5.2 Header Driveline
The driveline connects the header to the combine’s Power Take-Off (PTO). It can be removed for replacement or servicing.
Removing Header Driveline
The driveline can be removed by disconnecting it from the combine and the header.
WARNING
To avoid bodily injury or death from unexpected startup of machine, always stop the engine and remove the key from
the ignition before leaving the operator’s seat for any reason.
1. Lower the header to the ground.
2. Shut down the combine and remove the key from the ignition.
MAINTENANCE AND SERVICING
