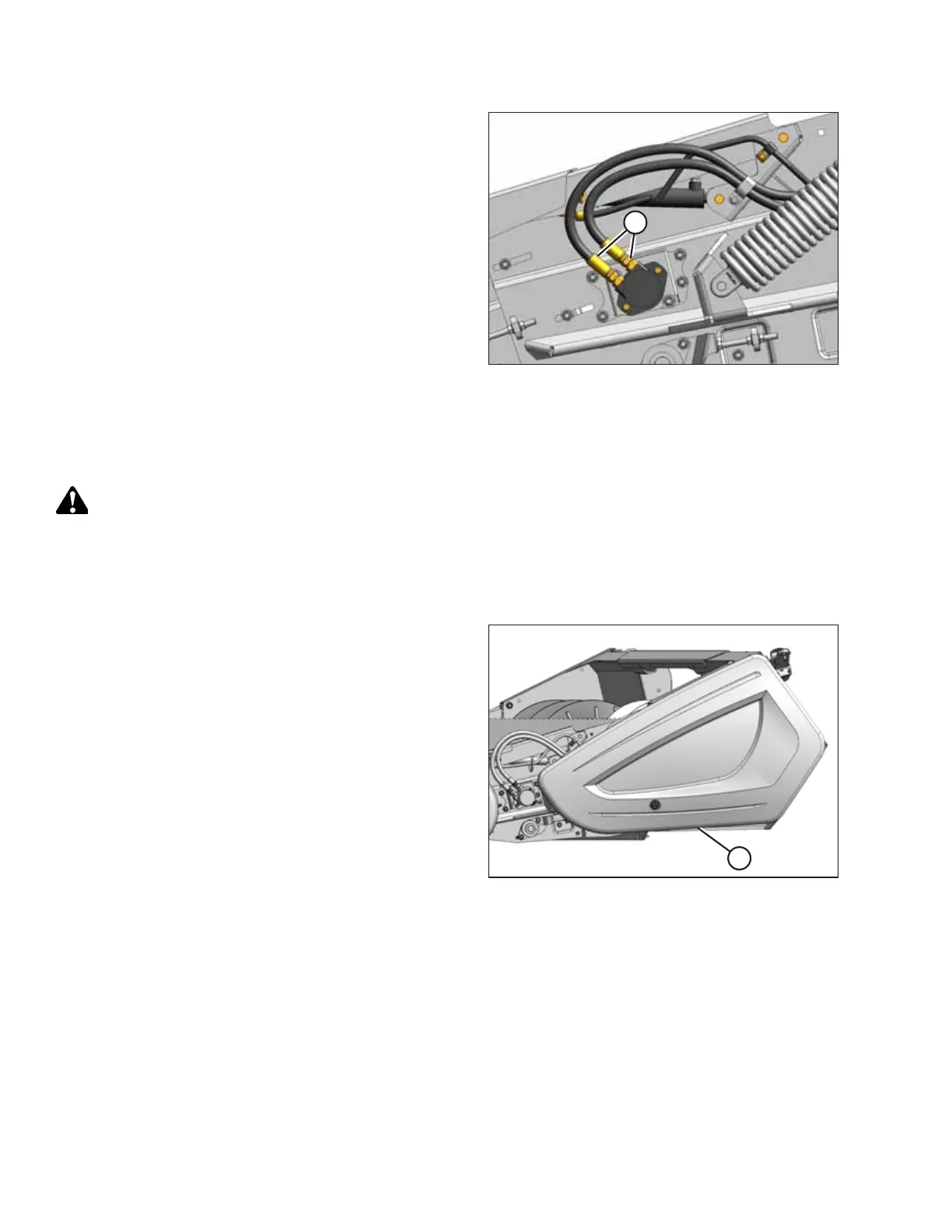

Figure 5.32: Hydraulic Hoses
5. Reconnect hydraulic hoses (A) to the motor.
Removing Rear Hydraulic Motor
Ensure that the connections to the rear hydraulic motor are kept completely clean while the motor is removed.
WARNING
To avoid bodily injury or death from unexpected startup of machine, always stop the engine and remove the key from
the ignition before leaving the operator’s seat for any reason.
1. Lower the header to the ground.
2. Shut down the combine and remove the key from the ignition.
$
Figure 5.33: Left Endshield
3. Open left endshield (A). For instructions, refer to 3.3.1
Opening Left Endshield, page 25.
