MacDon PW8 - Setting Sensing Grain Header Height (John Deere 60 Series)

215575 178 Revision B

$
%
&
'
(

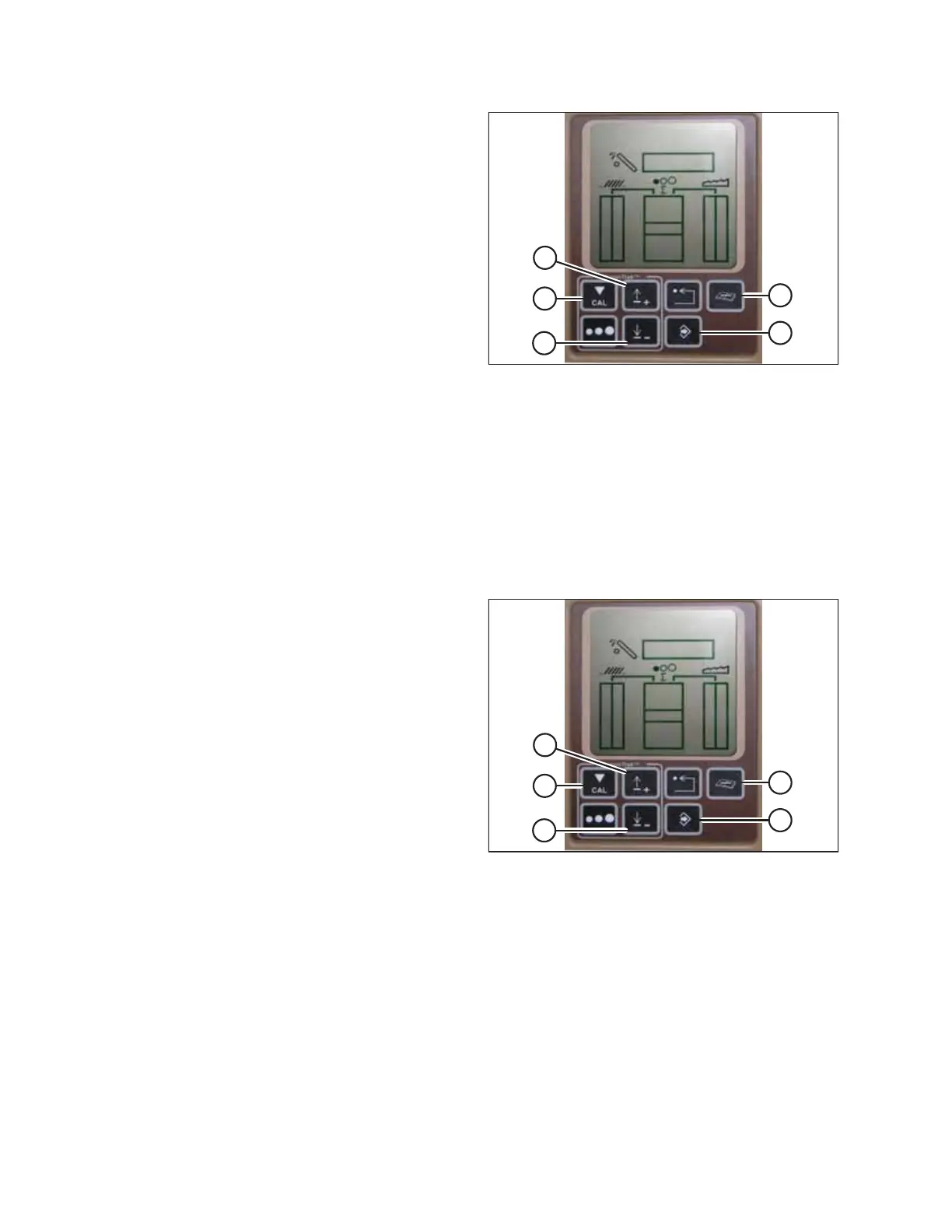

Figure 4.148: John Deere Combine Display
1. Press DIAGNOSTIC button (A) on monitor. DIA appears on
the monitor.
2. Press UP button (B) until EO1 appears on the monitor, and
press ENTER (D). This is the header adjustment setting.
3. Press UP (B) or DOWN (C) button until 132 is displayed on
the top portion of the monitor. This is the reading from the
accumulator.
4. Press ENTER (D) to select 132 as the accumulator reading.
Doing this will allow you to change the display to a three-
digit number so that it has a 0 in it, i.e., x0x).
5. Press UP (B) or DOWN (C) button until the desired value is
displayed, and press CAL button.(E)
6. Press ENTER (D) to save these settings. The accumulator is
now deactivated.
4.11.4 Setting Sensing Grain Header Height (John Deere 60 Series)
Change the preset header height in the auto header height control (AHHC) system on your John Deere 60 series combine
after calibration is complete. 50 is the recommended header height value.
NOTE:
Changes may have been made to the combine controls or the display since this document was published. For instructions,
refer to the combine operator’s manual for updated information.

$
%
&
'
(
Figure 4.149: John Deere Combine Display
1. Press DIAGNOSTIC button (A) on the monitor. DIA appears
on the monitor.
2. Press UP button (B) until EO1 appears on the monitor, and
press ENTER (D). This is the header adjustment setting.
3. Press UP (B) or DOWN (C) button until 128 is displayed on
top portion of monitor. This is the reading from the height
sensor.
4. Press ENTER (D) to select 128 as the sensor reading. Doing
this will allow you to change the display to a three-digit
number so that it has a 50 in it.
5. Press UP (B) or DOWN (C) button until the desired value is
displayed, and press CAL button (E).
6. Press ENTER (D) to save the changes. The header height is
now set.
AUTO HEADER HEIGHT CONTROL
