4.11.6 Adjusting Threshold for Drop Rate Valve (John Deere 60 Series)
The speed at which the header rises or falls on a John Deere 60 series combine can be adjusted from the combine cab.
NOTE:
Changes may have been made to the combine controls or the display since this document was published. Refer to the
combine operator’s manual for updated information.

$
%
&
'

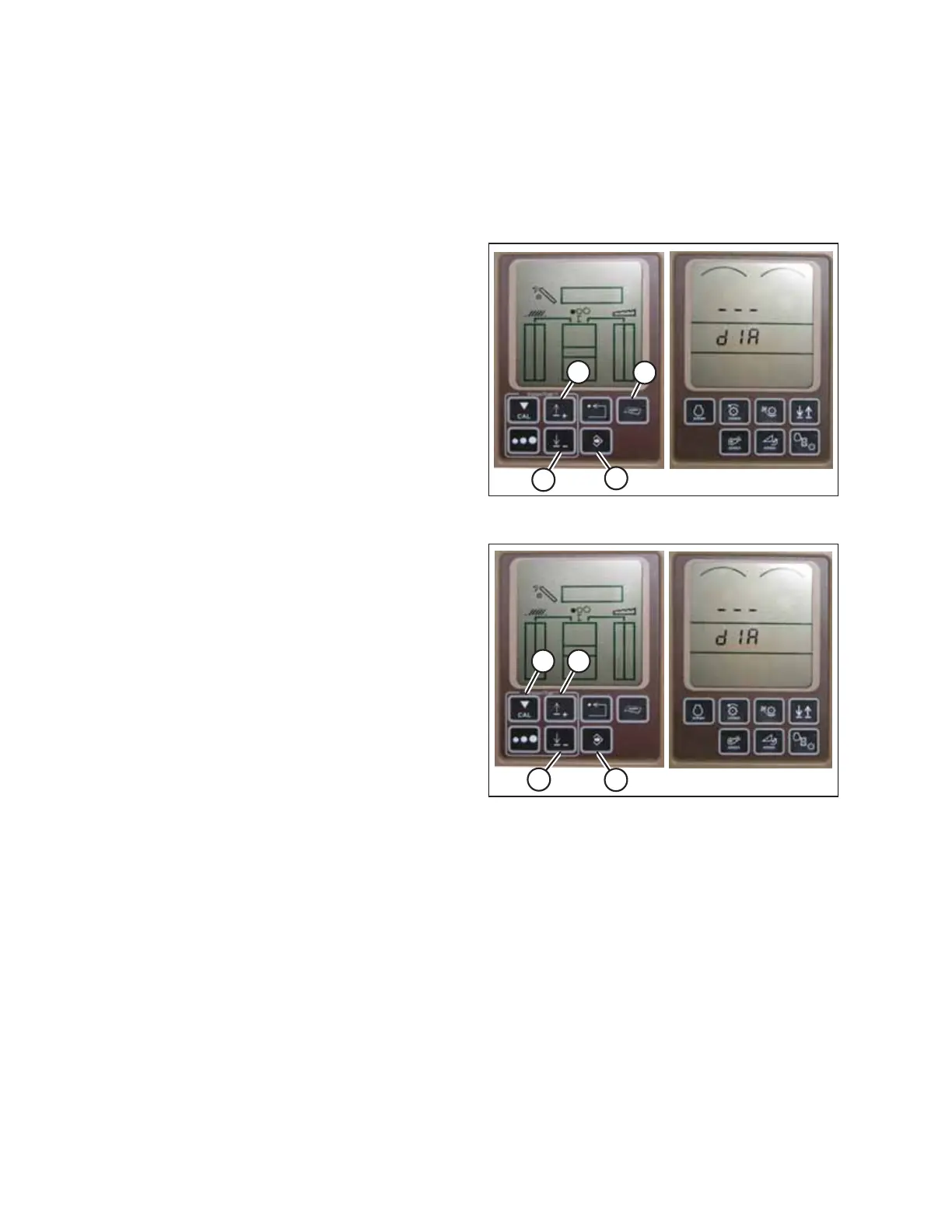

Figure 4.152: John Deere Combine Display
1. Press DIAGNOSTIC button (A) on the monitor. DIA appears
on the monitor.
2. Press UP button (B) until EO1 appears on the monitor. Press
ENTER (C). This is the header adjustment setting.
3. Press UP (B) or DOWN button (D) until 114 is displayed on
the top portion of the monitor. This is the setting that
adjusts when the fast drop rate starts with respect to the
sensitivity setting.
NOTE:
The default setting is 100. This value should be set between
60 and 85.
4. Press ENTER (C) to select 114 for the fast drop rate. This will
allow you to change the first digit of the entry.

$
'
&
%
Figure 4.153: John Deere Combine Display
5. Press UP (A) or DOWN (B) until the desired value is
displayed, then press CAL button (C). You can now edit the
second digit. Repeat this procedure until the desired setting
is achieved.
6. Press ENTER (D) to save these settings.
NOTE:
The numbers depicted on the displays in these illustrations
are for reference purposes only; they are not intended to
represent specific settings for your equipment.
