5.12 Lights
The transport lights, located at each end of the header, are used when driving the combine on the road with the header
attached.
• Use electrical tape and wire clips to prevent wires from dragging or rubbing.
• Keep the lights clean. Replace any defective bulbs.
• Replace the light housing if it is cracked or broken.
5.12.1 Adjusting Transport Lights
WARNING
To avoid bodily injury or death from unexpected startup of machine, always stop the engine and remove the key from
the ignition before leaving the operator’s seat for any reason.
1. Lower the header fully.
2. Shut down the engine, and remove the key from the ignition.
3. If repositioning is required, swivel the lights by hand.

$
%

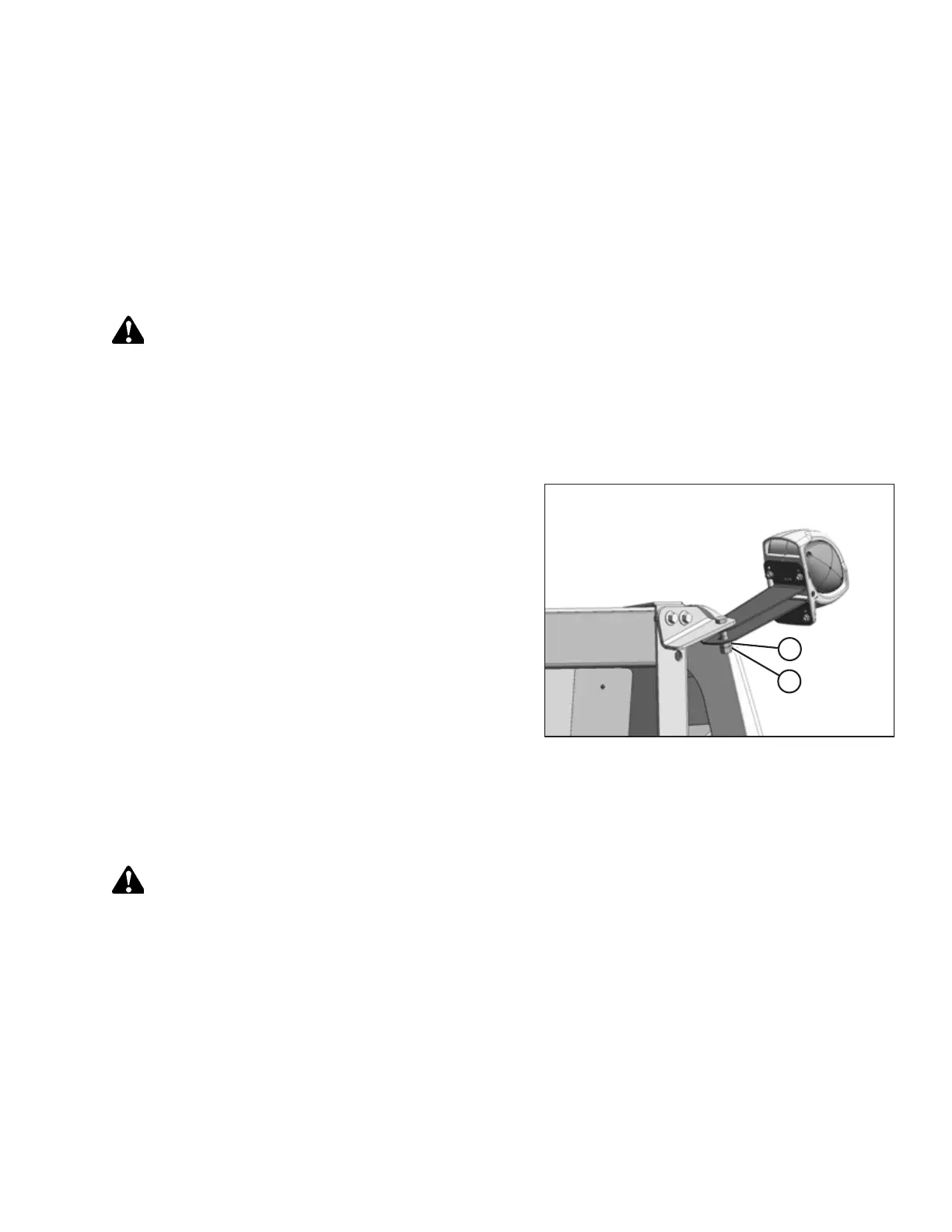

Figure 5.220: Transport Light
4. If the swivel is too loose or too tight, adjust jam nut (A) and
turn nut (B) so that the light maintains its position and can
be moved by hand.
5. Tighten jam nut (A). Do NOT overtighten the jam nut.
5.12.2 Replacing Transport Light Bulb
Transport lights are an important safety feature. Keep the lights clean. Replace any defective bulbs.
WARNING
To avoid bodily injury or death from unexpected startup of machine, always stop the engine and remove the key from
the ignition before leaving the operator’s seat for any reason.
1. Lower the header fully.
2. Shut down the engine, and remove the key from the ignition.
