MacDon PW8 - Installing Front Draper Belt

215575 261 Revision B

$
%
&
'

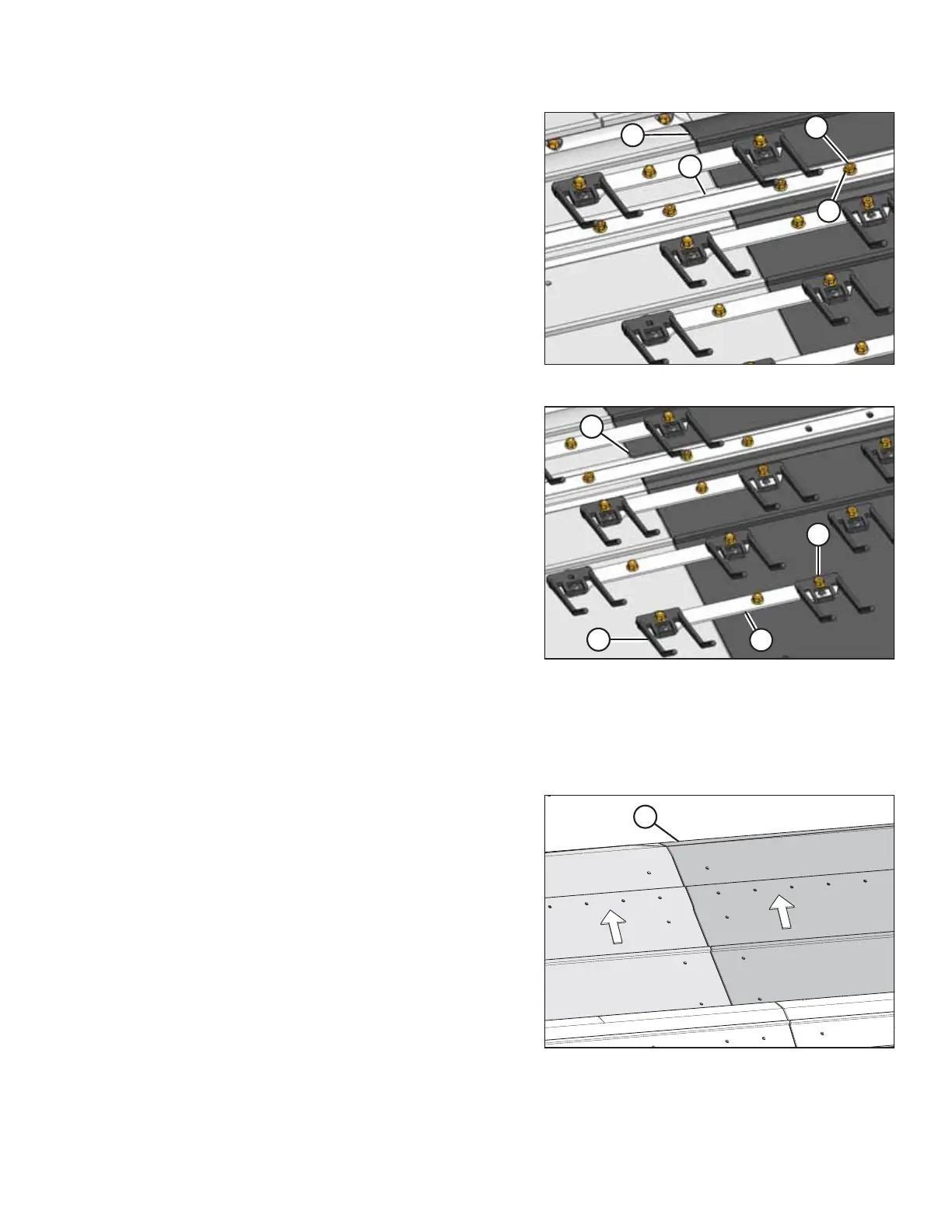

Figure 5.95: Front Draper Belt
6. Remove remaining M6 flange nuts (A), connector bar (B),
and pronged elevator bolts (C) from draper belt (D).
NOTE:
Remove the elevator bolts only if you are replacing
the draper.

$
%
&
'
Figure 5.96: Front Draper Belt Straps
7. Remove M6 flange nuts (A), fingers (B), and straps (C)
connecting adjacent belts.
8. Remove draper belt (D).
Installing Front Draper Belt
If you are replacing more than one draper belt, it may be easier to remove all the belts and assemble them on the ground
before installing them on the draper.

$
Figure 5.97: Front Draper Belt
1. Wrap new draper belt (A) around the rollers with the slats
facing outwards.
IMPORTANT:
The arrow on belt must point in the direction of rotation.
MAINTENANCE AND SERVICING
