215575 123 Revision B

$

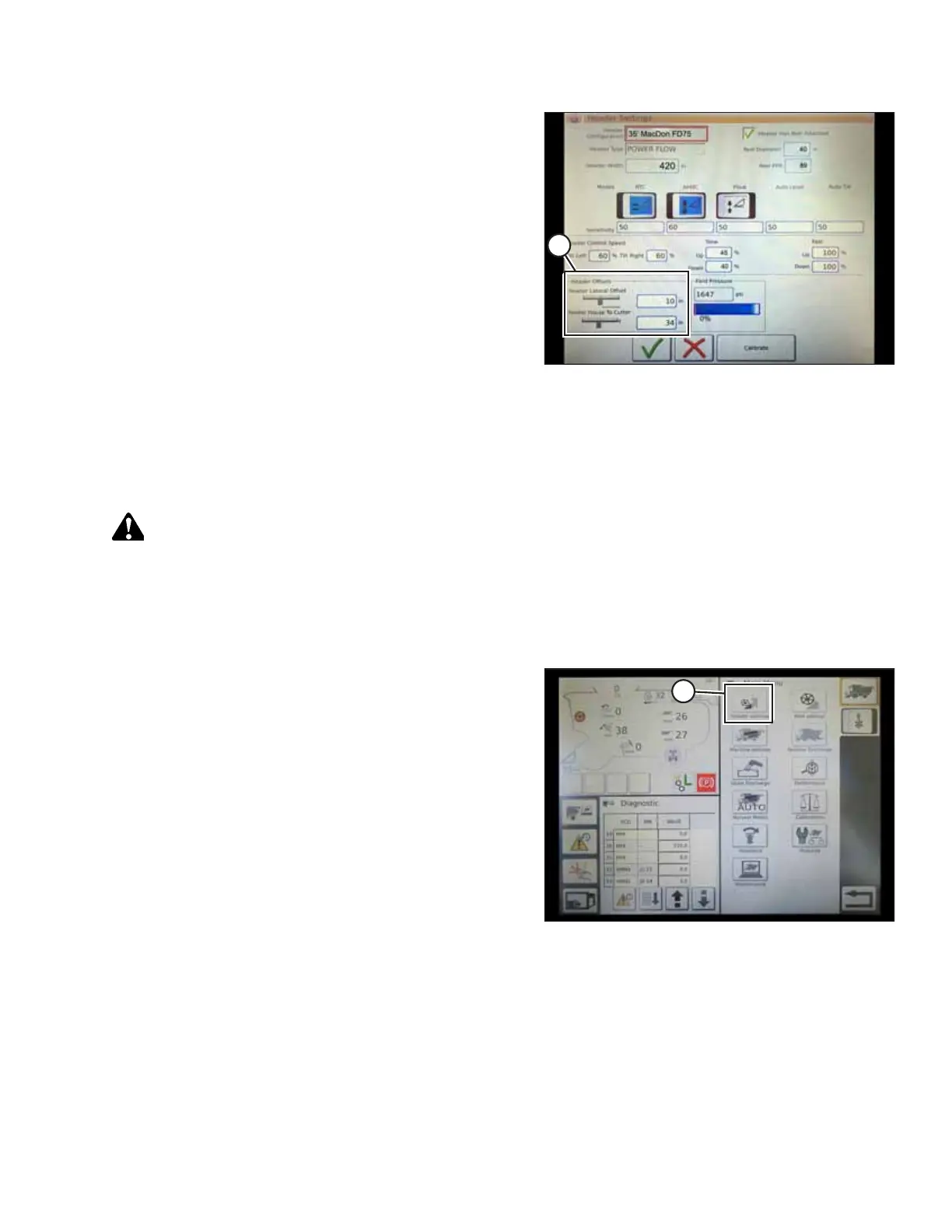

Figure 4.38: Header Offset Settings
4. Header Offsets (A): Offset distances are important for yield
mapping. There are two adjustable dimensions on the
HEADER SETTINGS page:
• Header Lateral Offset: the distance between the
centerline of the header and the centerline of the
machine. This should be set at 0 for a MacDon header.
• Feeder House to Cutter: the distance from the machine
interface to the cutterbar. This should be set at 68 for a
MacDon header.
4.5.3 Calibrating the Header – IDEAL
™™
Series
The auto header height control (AHHC) sensor output must be calibrated for IDEAL
™
combines, or the AHHC feature will
not work properly.
DANGER
Clear the area of other persons, pets etc. Keep children away from machinery. Walk around the machine to be sure no
one is under, on, or close to it.
NOTE:
Changes may have been made to the combine controls or the display since this document was published. For instructions,
refer to the combine operator’s manual for updated information.

$
Figure 4.39: Combine Main Menu
1. On the COMBINE MAIN MENU, touch HEADER
SETTINGS (A).
AUTO HEADER HEIGHT CONTROL
