MacDon PW8 - Case IH; Attaching Header to Case IH Combine

215575 44 Revision B
$
%

$
%

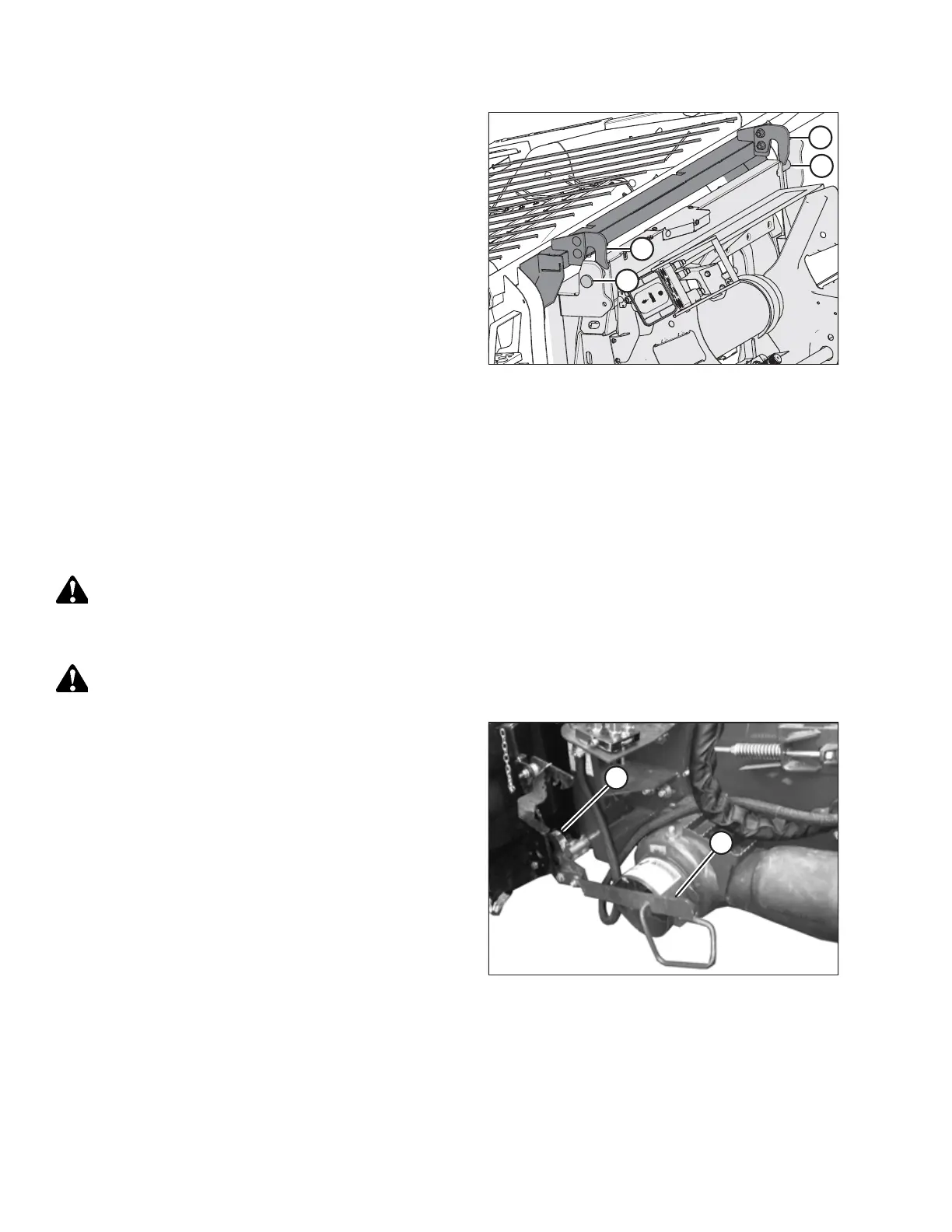

Figure 3.34: Lowering Feeder House
11. Start the combine and lower the header to the ground until
the feeder house pins (A) are clear of hooks (B).
12. Slowly back the combine away from the header.
3.10.2 Case IH
This section provides instructions for attaching/detaching the pick-up header to/from Case IH 50/60/7088, 51/61/7130,
51/61/7140, 70/8010, 71/81/9120, 72/82/9230, and 72/82/9240 combines.
Attaching Header to Case IH Combine
Attach the header to the combine to be able to operate the header using the combine operator’s console.
DANGER
To avoid injury or death from unexpected start-up of the machine, always stop the engine and remove the key from
the ignition before leaving the operator’s seat for any reason.
DANGER
Check to be sure all bystanders have cleared the area.

$
%
Figure 3.35: Feeder House Locks
1. Pull handle (A) on the combine to raise hooks (B) on both
sides of the feeder house.
OPERATION
