215575 189 Revision B
10. If the sensor voltage is not within the low and high limits shown in 4.4 Height Sensor Output Voltage Range – Combine
Requirements, page 111 , or if the range between the low and high limits is insufficient, the height sensors will need to
be adjusted. For instructions, refer to 4.4.2 Adjusting Header Height Sensor Voltage Range – Left Side, page 114 and
4.4.3 Adjusting Header Height Sensor Voltage Range – Right Side, page 114.
4.13.2 Calibrating Feeder House Fore-Aft Tilt Range (John Deere S and T Series)
This procedure applies only to model year 2015 and later John Deere S and T Series combines.
NOTE:
Changes may have been made to the combine controls or the display since this document was published. For instructions,
refer to the combine operator’s manual for updated information.

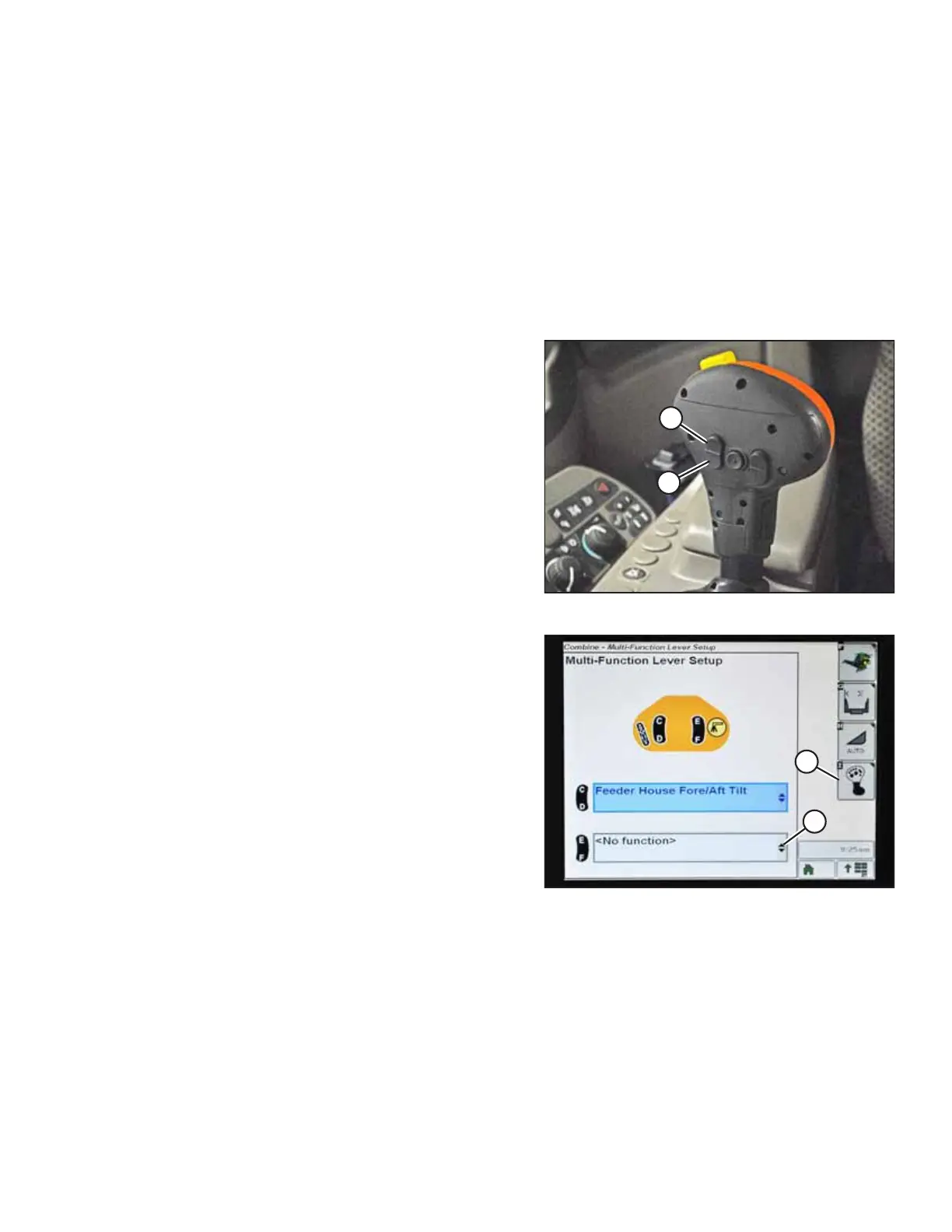

Figure 4.172: John Deere Hydro Handle
The feeder house fore-aft tilt feature is controlled by buttons
C (C) and D (D) on the back of the hydro handle.
Figure 4.173: John Deere Combine Display
NOTE:
The feeder house fore-aft tilt controls can be configured to work
with buttons E and F by pressing hydro handle icon (A) and then
selecting FEEDER HOUSE FORE/AFT TILT from the drop-down
menu (B) on the combine display.
AUTO HEADER HEIGHT CONTROL
