5.3.2 Greasing Points
Add grease to these greasing points according to the maintenance schedule. Be sure to leave a small blob of grease on top
of each fitting to prevent contamination.
Every 25 Hours

$
%
&

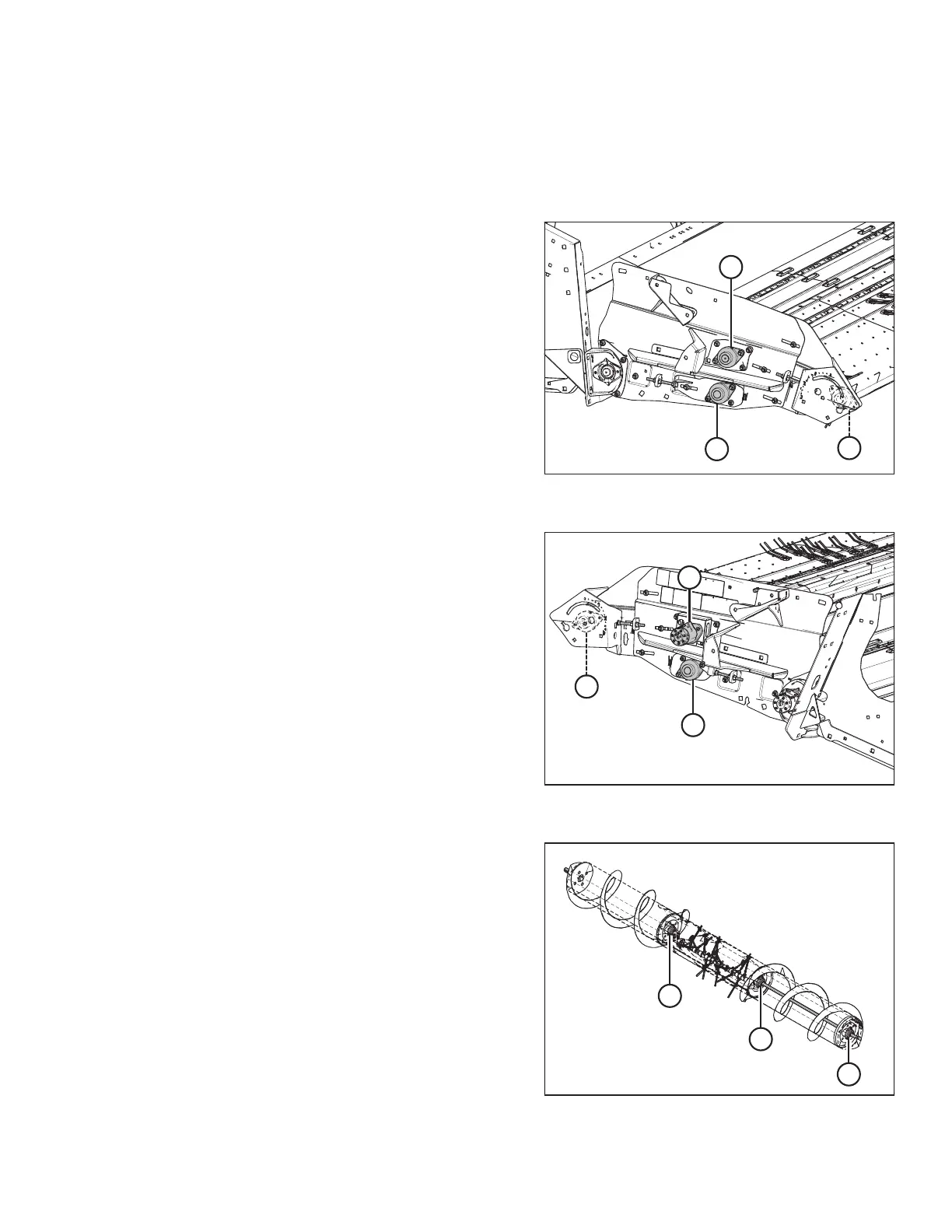

Figure 5.1: Bearings with Grease Fittings – Right Side
of Header
• (A) Front draper deck idler bearing (underneath wheel
support plate)
• (B) Rear draper deck idler bearing
• (C) Front draper deck drive bearing

$
%
&
Figure 5.2: Bearings with Grease Fittings – Left Side
of Header
• (A) Front draper deck idler bearing (underneath the wheel
support plate)
• (B) Rear draper deck idler bearing
• (C) Front draper deck drive bearing (behind the
hydraulic motor)

$
%
&
Figure 5.3: Bearings with Grease Fittings on Auger –
View from Right Side
NOTE:
The grease points for bearings (A) and (B) can be reached by
removing the access covers on the auger drum. See 5.6 Auger
Maintenance, page 251 for instructions on how to remove the
access covers. Bearing (C) can be accessed from outside the
auger.
