2.2 Header Dimensions
The length and width of your pick-up header can be specified in several ways, including frame size and wheel-to
wheel width.

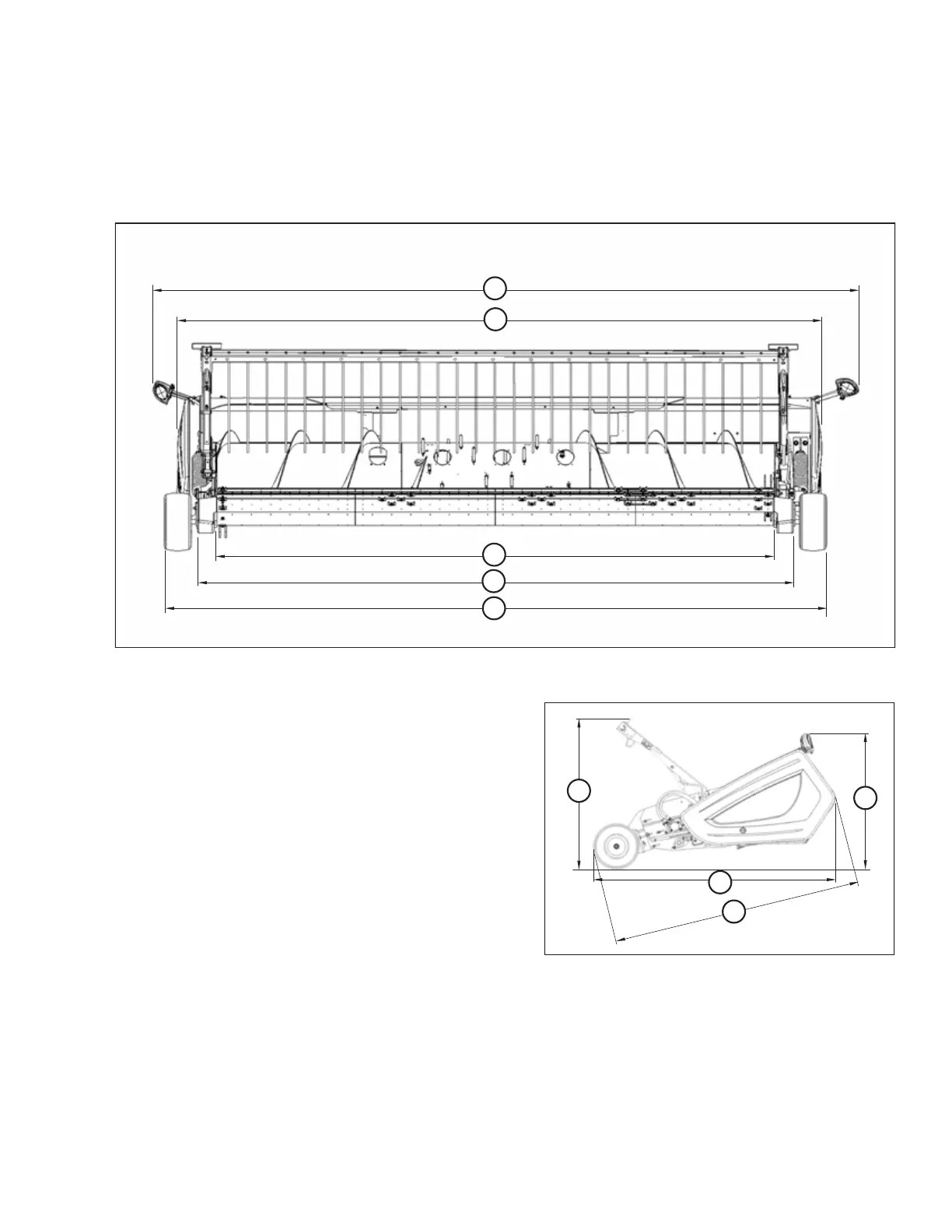

Figure 2.1: Header Dimensions

$
%
&
'
(
A - 565.8 cm (222 3/4 in.) B - 516.9 cm (203 1/2 in.) C - 452.3 cm (178 1/8 in.)
D - 476.6 cm (187 5/8 in.) E - 531.8 cm (209 3/8 in.)

$
%
&
'
Figure 2.2: Header Dimensions
A - 246.1 cm (96 7/8 in.) B - 251.3 cm (98 7/8 in.)
C - 154.4 cm (60 3/4 in.) D - 138.1 cm (54 3/8 in.)
