MacDon PW8 - Operating the Header - IDEAL Series

215575 125 Revision B

$
%
&

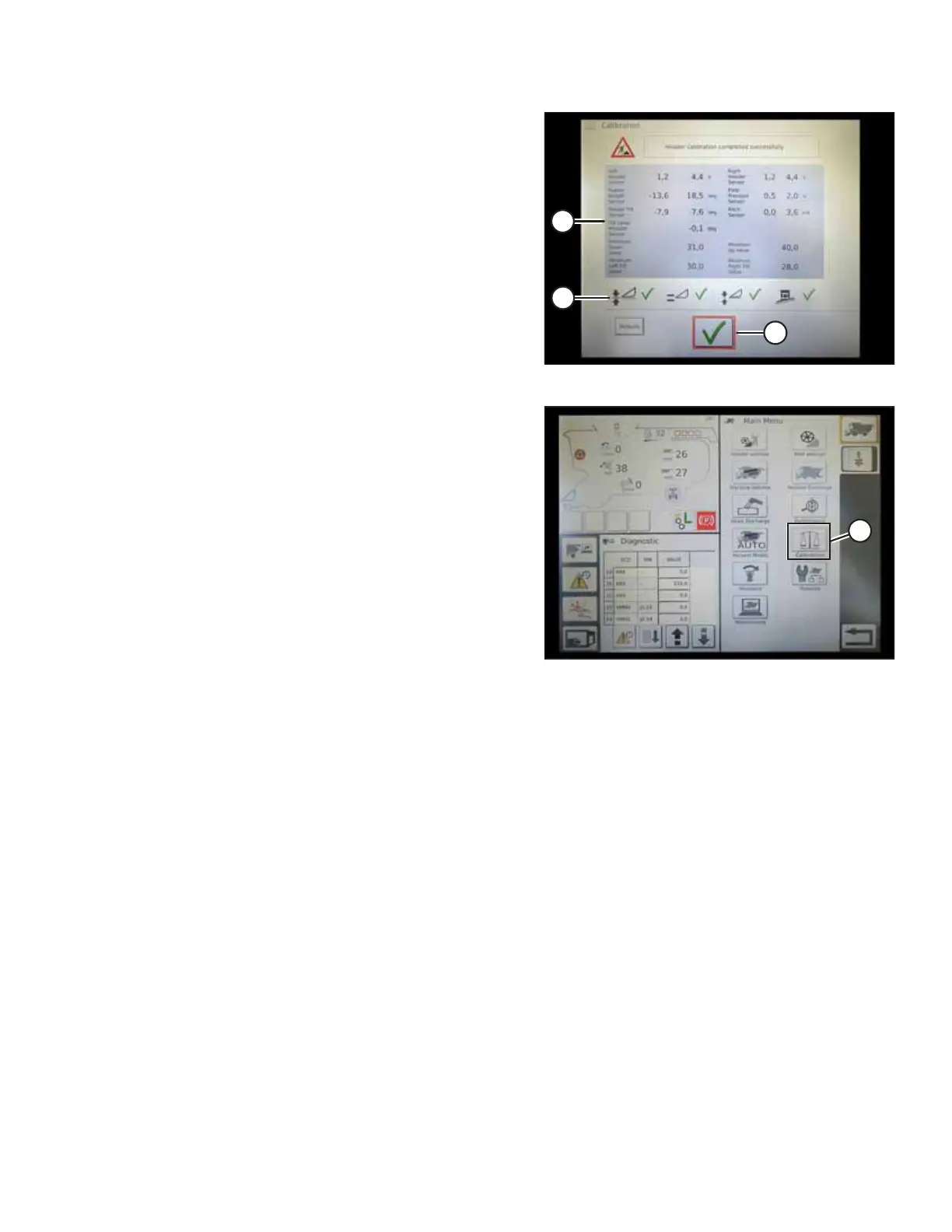

Figure 4.43: Completed Calibration Page
6. When the calibration procedure is complete:
• Review summary information (A)
• Review green check marks confirming calibrated
functions (B)
• Touch check mark (C) to save

$
Figure 4.44: Direct Calibration Menu
NOTE:
Touch CALIBRATIONS icon (A) on the MAIN MENU page to
display the CALIBRATION MENU where you can choose from
a variety of calibrations including header and reel
calibration.
4.5.4 Operating the Header – IDEAL
™™
Series
Once the auto header height control (AHHC) system has been configured on your IDEAL
™
combine, the AHHC system can
be controlled from the combine cab.
NOTE:
Changes may have been made to the combine controls or the display since this document was published. For instructions,
refer to the combine operator’s manual for updated information.
AUTO HEADER HEIGHT CONTROL
