MacDon PW8 - Detaching from AGCO IDEAL Combine

215575 41 Revision B
$
%

&
'

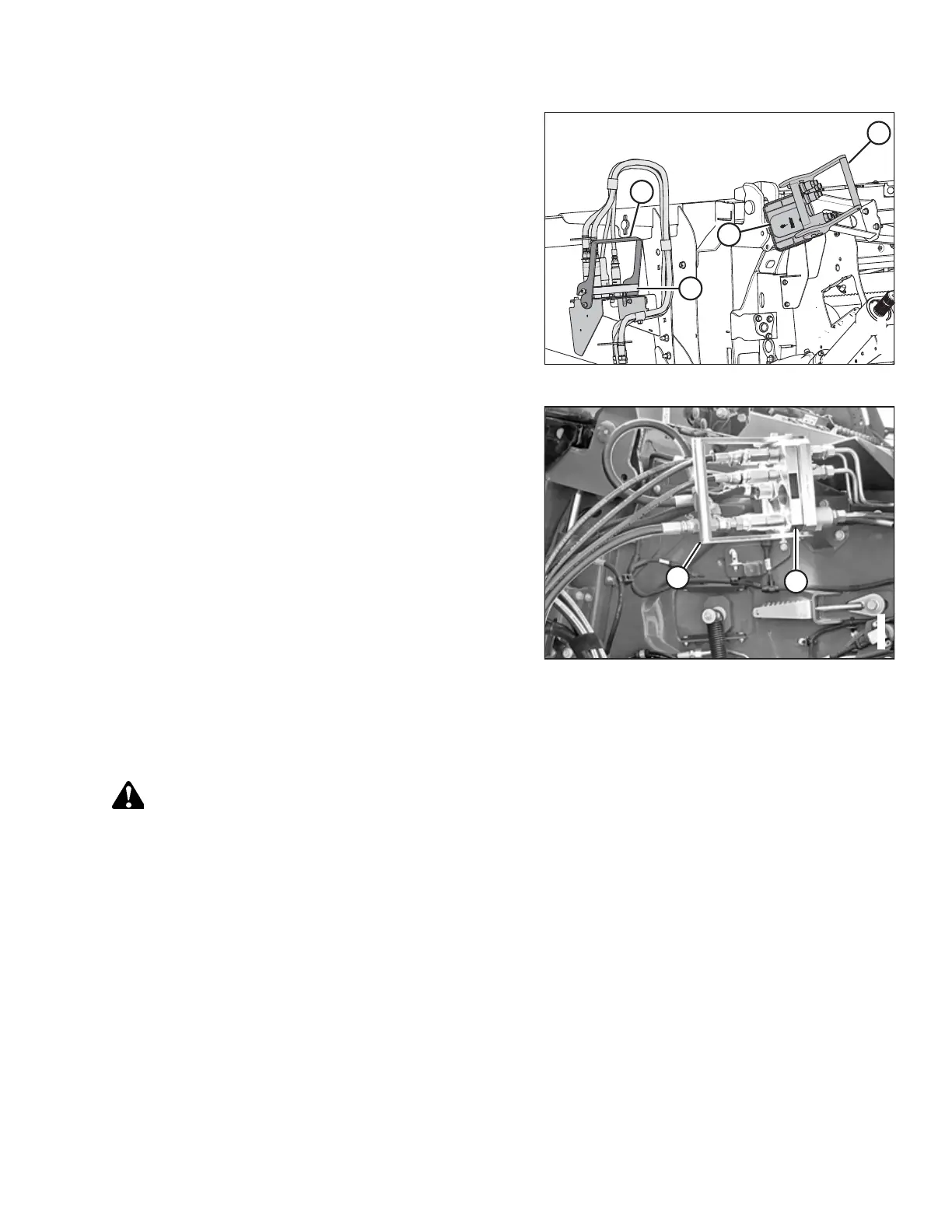

Figure 3.26: Multicoupler Receptacles
13. Lower handle (A) to release multicoupler (B) from the
header.
14. Open cover (C) on the combine receptacle.
15. Push handle (D) to the fully open position.
16. Clean the mating surfaces of the multicoupler and the
receptacle, if necessary.

$
%
Figure 3.27: Multicoupler Connected to Combine
17. Position multicoupler (A) onto the combine receptacle, and
pull handle (B) to fully engage the multicoupler into the
receptacle.
Detaching from AGCO IDEAL
™
Combine
Be sure to place the header driveline on its storage bracket when detaching it from an AGCO IDEAL
™
combine.
WARNING
To avoid bodily injury or death from unexpected startup of machine, always stop the engine and remove the key from
the ignition before leaving the operator’s seat for any reason.
1. Drive the combine to a level area and position the header slightly off the ground.
2. Shut down the engine and remove the key from the ignition.
