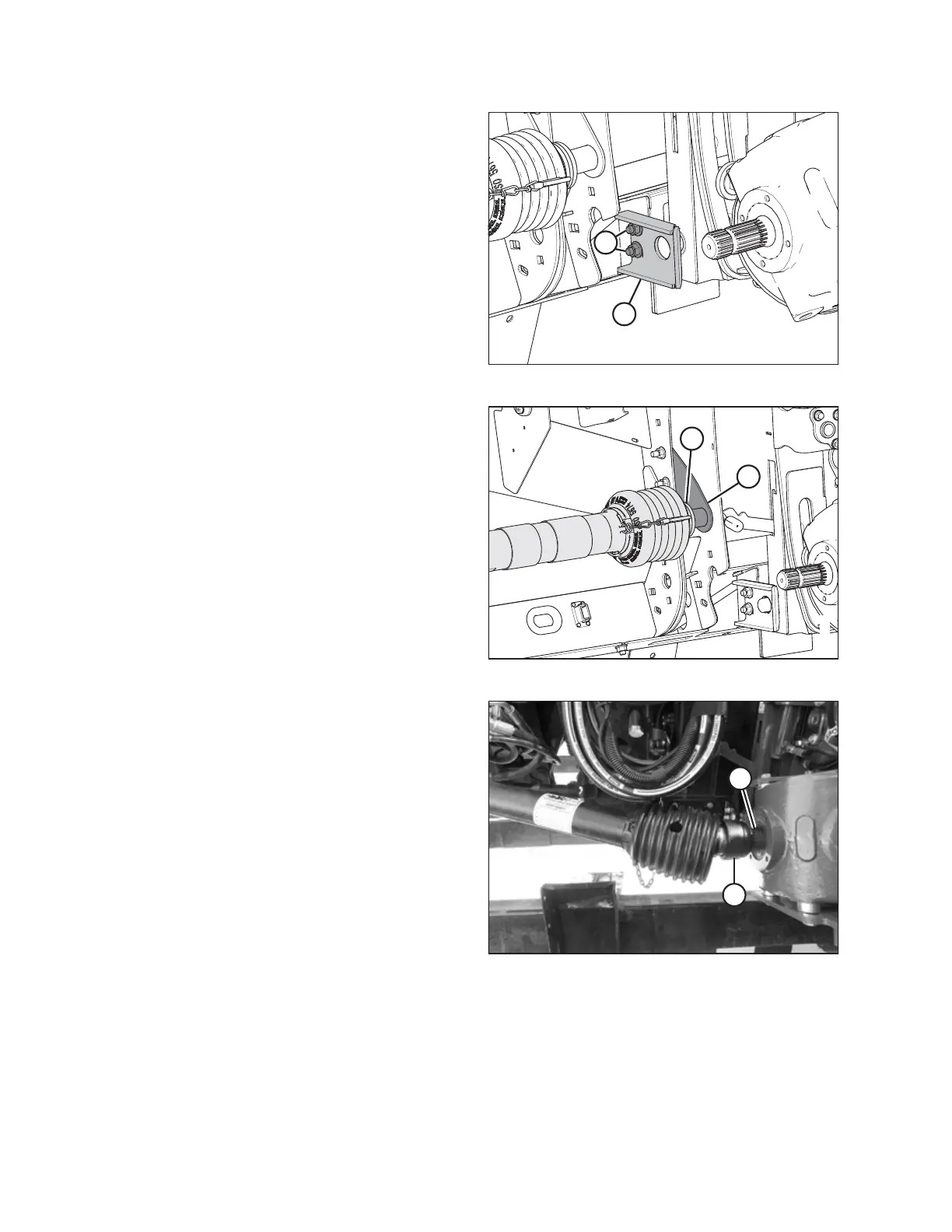

Figure 3.23: Transition Frame Adjustable Mount
8. If you are unable to push down the lever, check the
alignment of the mounts on both sides of the feeder house.
If necessary, loosen nuts (A) and position mount (B) to line
up with the pin. Retighten the nuts and ensure that both
locking pins are extended into the mounts.
$
%
Figure 3.24: Driveline in Storage Position
9. Open the combine output shaft cover.
10. Pull collar (A) back to release the driveline from support
bracket (B).
$
%
Figure 3.25: Connecting Driveline to Combine
11. Pull back collar (A) on the end of the driveline and push the
driveline end onto combine output shaft (B) until the collar
locks.
12. Close the combine output shaft cover.
