MacDon PW8 - Installing Rear Draper Belt

215575 265 Revision B

$
%
&
'

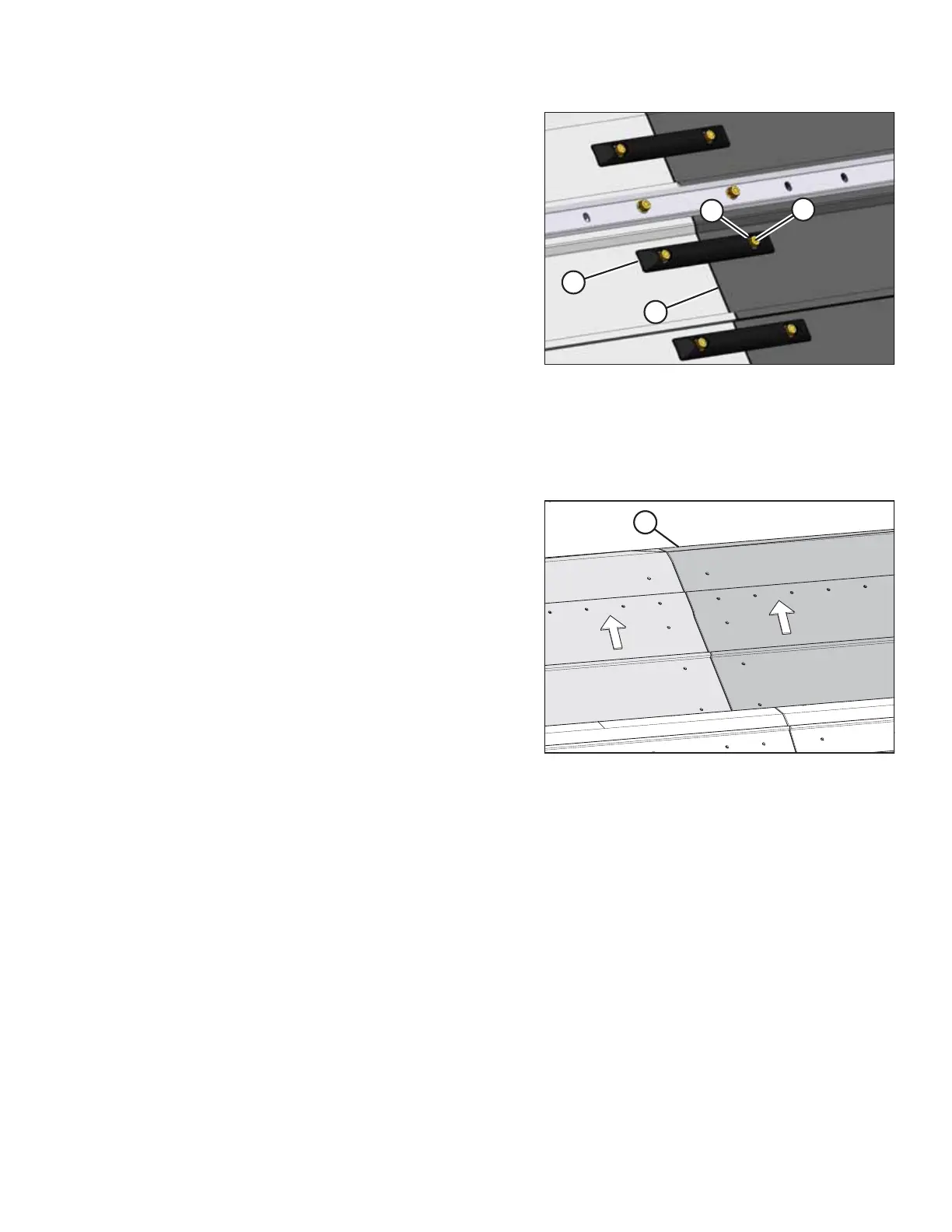

Figure 5.103: Rear Draper Belt Straps
7. Remove M6 flange nuts (A) and straps (B) connecting the
adjacent belts.
8. Remove elevator bolts (C).
9. Remove draper belt (D).
Installing Rear Draper Belt
If you are replacing more than one draper belt, it may be easier to remove all the belts and assemble them on the ground
before installing them on the draper.

$
Figure 5.104: End Draper Belt
1. Wrap draper belt (A) around the rollers with the slats facing
outwards.
IMPORTANT:
The arrow on belt (A) must point in the direction of
rotation.
