3.3.2 Closing Left Endshield
Close the endshield when your maintenance or repair tasks are complete.

$
%

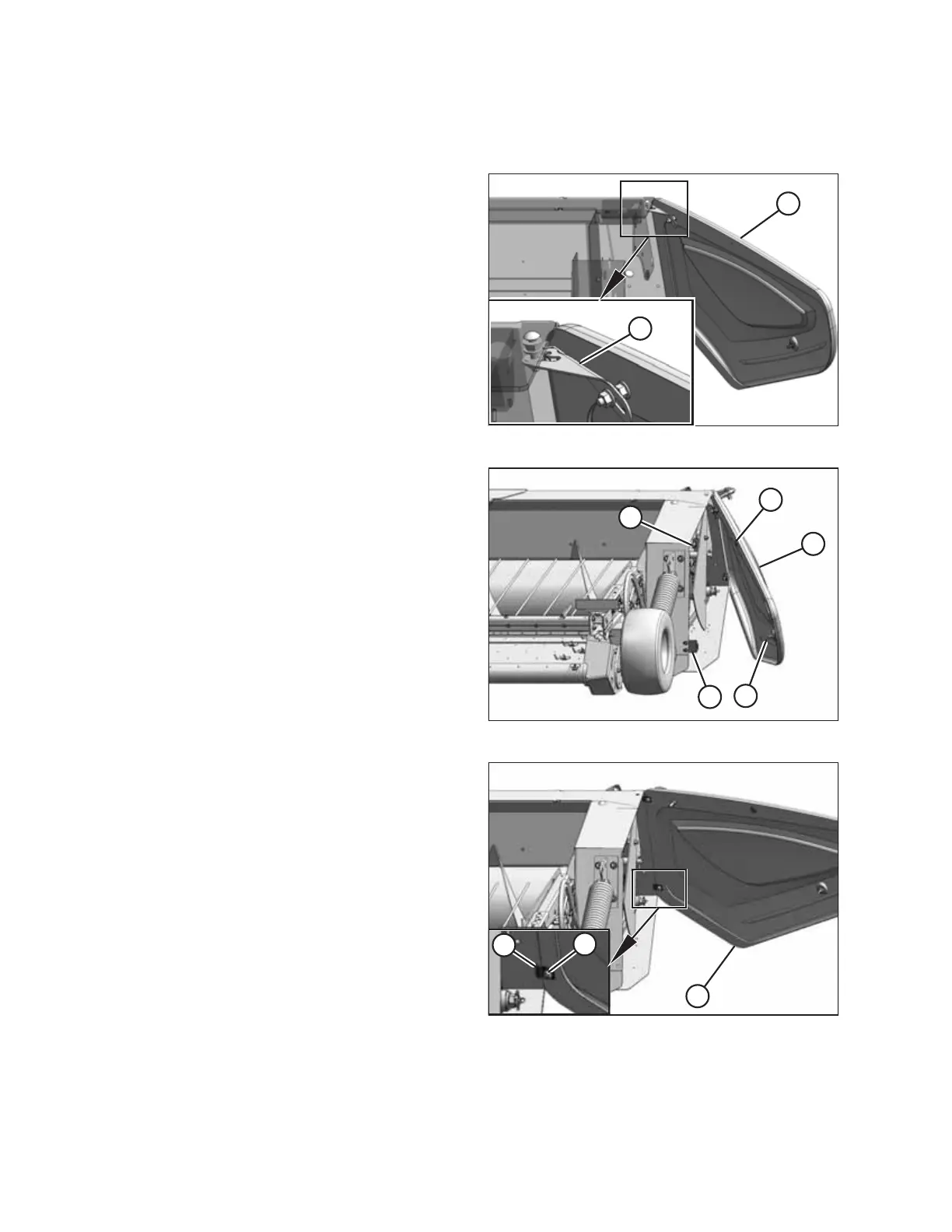

Figure 3.3: Endshield Support
1. Move endshield (A) slightly so that support (B) can be
moved out of the locked position.

$
%
&
'
(
Figure 3.4: Endshield
2. Close endshield (A), ensuring that magnet (B) and stop (C)
in the header frame are aligned. This will ensure that
latch (D) aligns with receptacle (E).
NOTE:
The positions of latch (D) and magnet (B) are factory-set
and should not require adjustment.

$
%
&
Figure 3.5: Endshield Adjustment
3. If the front of the endshield needs to be raised or lowered,
loosen nuts (B) on clips (C) at the back of endshield (A), and
reposition the endshield. Tighten nuts (B).
IMPORTANT:
Do NOT overtighten nuts (B). Overtightening can damage
the endshield.
