MacDon PW8 - Removing Rear Draper Belt

215575 263 Revision B

$
%
&
'
(
%
$

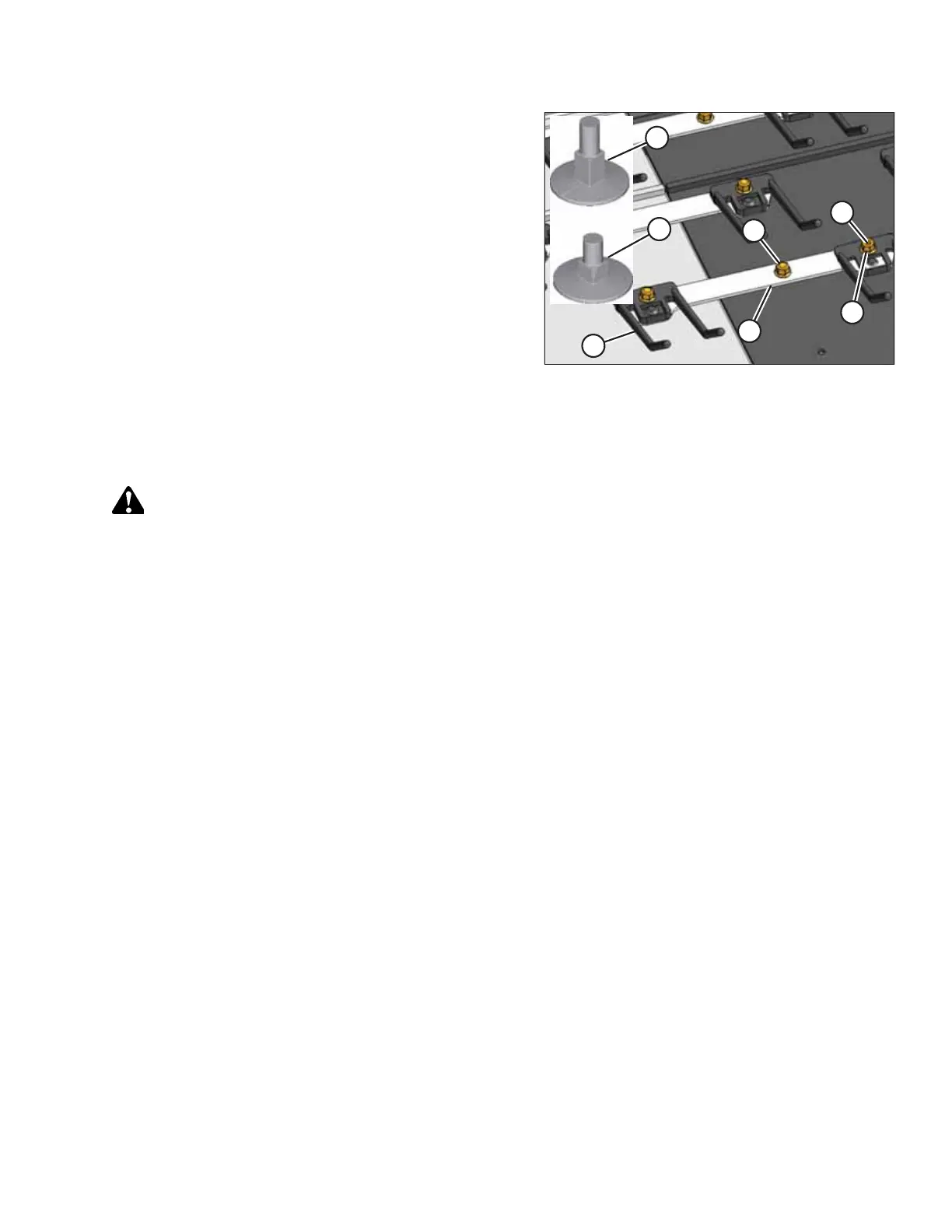

Figure 5.100: Front Draper Belt Straps
7. Connect the draper belt by installing M6 x 16 square neck
elevator bolts (A) at the center locations, and M6 x 23
square neck elevator bolts (B) at finger locations (D).
8. Install straps (C) and fingers (D) onto the bolts, and secure
them with M6 flange nuts (E).
9. Torque M6 flange nuts (E) to 4–5.6 Nm (37–50 lbf∙in).
Removing Rear Draper Belt
The elevator bolts do not need to be removed if the rear draper belt is not being replaced.
DANGER
To avoid bodily injury or death from unexpected start-up or fall of a raised machine, always stop engine and remove
key before leaving the operator’s seat, and always engage safety props before going under the machine for any reason.
1. Fully raise the hold-down and engage the lift cylinder safety props. For instructions, refer to 3.5 Engaging Hold-Down
Lift Cylinder Safety Props, page 33.
2. Fully raise the header, and engage the combine lift cylinder safety props.
3. Stop the engine and remove the key from the ignition.
4. Fully release the tension on the rear draper belt.
